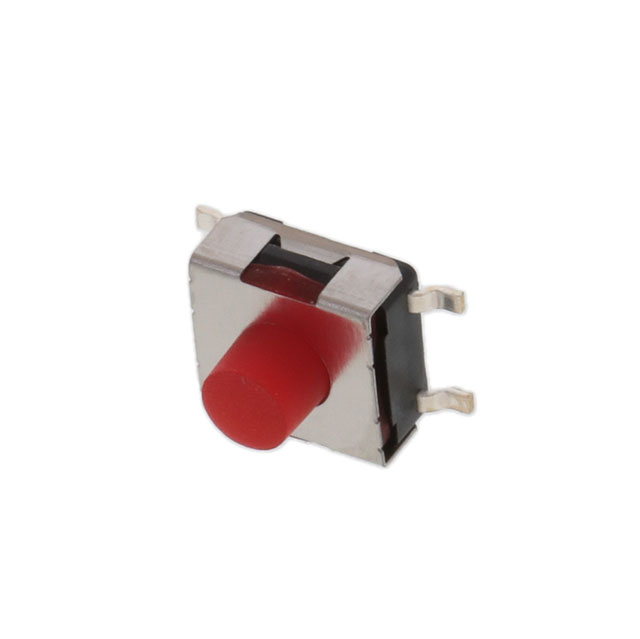

TSM9W Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Actuator Material | Switch Function | Contact Rating @ Voltage | Mounting Type | Termination Style | Outline [y] | Outline [x] | Actuator Orientation | Operating Force | Operating Temperature [Min] | Operating Temperature [Max] | Features | Circuit | Actuator Height off PCB, Vertical [z] | Actuator Type | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | Silicone Rubber | Off-Mom | 0.05 A 12 VDC | Surface Mount | Gull Wing | 6.2 mm | 6.3 mm | Top Actuated | 160 gf | -20 ░C | 70 °C | Washable | SPST-NO | 3.1 mm | Standard | Non-Illuminated |
 E-Switch | Silicone Rubber | Off-Mom | 0.05 A 12 VDC | Surface Mount | Gull Wing | 6.2 mm | 6.3 mm | Top Actuated | 260 gf | -20 ░C | 70 °C | Washable | SPST-NO | 5.2 mm | Standard | Non-Illuminated |
