100AWDP3 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE DPDT 0.4VA 20V

Part	Actuator Material	Electrical Life (Cycles)	Termination Style	Voltage Rating - AC	Circuit	Bushing Thread	Ingress Protection Description	Ingress Protection IP Rating	Features	Actuator Length	Illumination	Mounting Type	Voltage Rating - DC	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Switch Function	Actuator Type	Panel Cutout Diameter	Panel Cutout Shape
E-Switch 100AWDP3T2B4M6RE	Brass Chrome Plated	30000 Cycles	PC Pin	20 V	DPDT	Unthreaded	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	7.62 mm	Non-Illuminated	Right Angle Through Hole	20 V	0.4 VA	85 °C	-30 °C	On-Off-On	Standard Round
E-Switch 100AWDP3T2B1M2QEH	Brass Chrome Plated	30000 Cycles	PC Pin	120 V	DPDT	1/4-40	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	5.08 mm	Non-Illuminated	Panel Mount	28 V	5 A	85 °C	-30 °C	On-Off-On	Standard Round	0.25 "	Circular
E-Switch 100AWDP3T1B1M2QE	Brass Chrome Plated	30000 Cycles	PC Pin	120 V	DPDT	1/4-40	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	10.16 mm	Non-Illuminated	Panel Mount	28 V	5 A	85 °C	-30 °C	On-Off-On	Standard Round	0.25 "	Circular
E-Switch 100AWDP3T1B1M6QEH	Brass Chrome Plated	30000 Cycles	PC Pin	120 V	DPDT	1/4-40	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	10.41 mm	Non-Illuminated	Panel Mount Right Angle	28 V	5 A	85 °C	-30 °C	On-Off-On	Standard Round	0.25 "	Circular

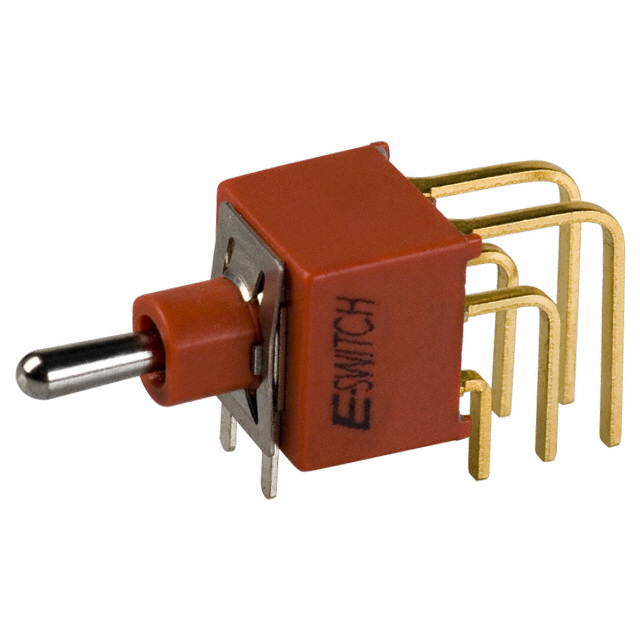

E-Switch 100AWDP3T2B4M7RE	Brass Chrome Plated	30000 Cycles	PC Pin	20 V	DPDT	Unthreaded	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	7.62 mm	Non-Illuminated	Right Angle Through Hole Vertical	20 V	0.4 VA	85 °C	-30 °C	On-Off-On	Standard Round
E-Switch 100AWDP3T1B4M7QE	Brass Chrome Plated	30000 Cycles	PC Pin	120 V	DPDT	Unthreaded	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	0.5 in	Non-Illuminated	Right Angle Through Hole Vertical	28 V	5 A	85 °C	-30 °C	On-Off-On	Standard Round
E-Switch 100AWDP3T1B4M2QE	Brass Chrome Plated	30000 Cycles	PC Pin	120 V	DPDT	Unthreaded	Dust Tight Waterproof	IP67	Epoxy Sealed Terminals	0.5 in	Non-Illuminated	Through Hole	28 V	5 A	85 °C	-30 °C	On-Off-On	Standard Round
