FLVDDF2 Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

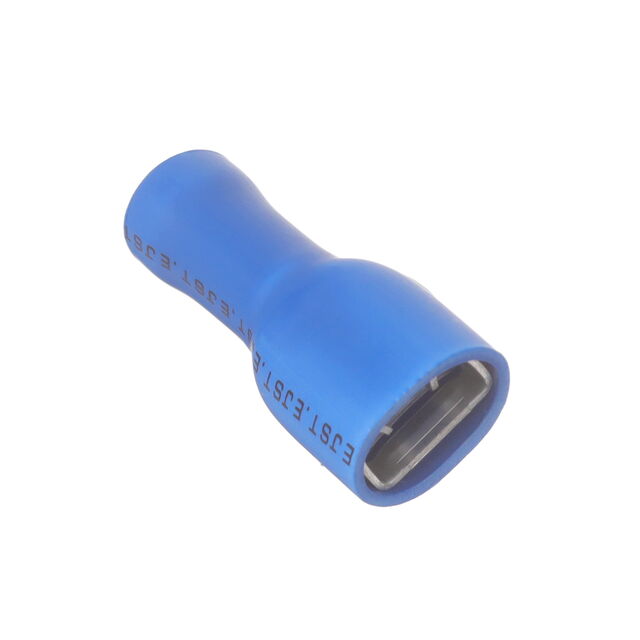

CONN QC RCPT 14-16AWG 0.250
| Part | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Insulation | Gender | Color | Tab Thickness | Tab Thickness | Length - Overall [x] | Length - Overall [x] | Tab Length | Tab Length | Tab Width [x] | Tab Width [x] | Terminal Type | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.169 in | 4.29 mm | Fully Insulated | Female | Blue | 0.81 mm | 0.032 in | 21 mm | 0.827 in | 0.307 " | 7.8 mm | 6.35 mm | 0.25 in | Standard | Free Hanging (In-Line) | 14 AWG | 16 AWG | Crimp |
