4C.01.9 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K
RELAY GEN PURPOSE SPDT 16A 12V
| Part | Coil Resistance | Must Operate Voltage | Termination Style | Coil Type | Load - Max Switching [Max] | Operate Time | Coil Voltage | Switching Voltage [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Features | Coil Current | Contact Rating (Current) | Mounting Type | Release Time | Relay Type | Contact Material | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

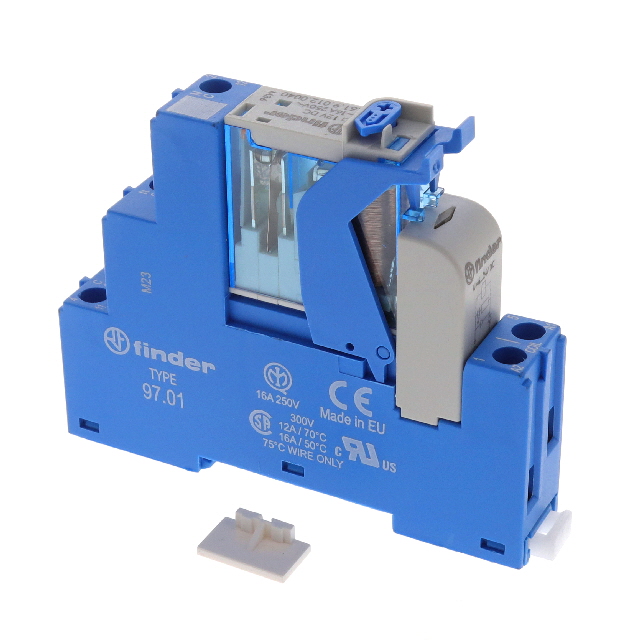

 Finder Relays, Inc. | 300 Ohms | 8.8 VDC | Screw Terminal | Non Latching | 7040 VA | 15 ms | 12 VDC | 440 VAC | -40 C | 50 °C | SPDT (1 Form C) | Diode Lighted Indicator | 40 mA | 16 A | DIN Rail | 12 ms | General Purpose | Silver Nickel (AgNi) | 2.4 VDC |

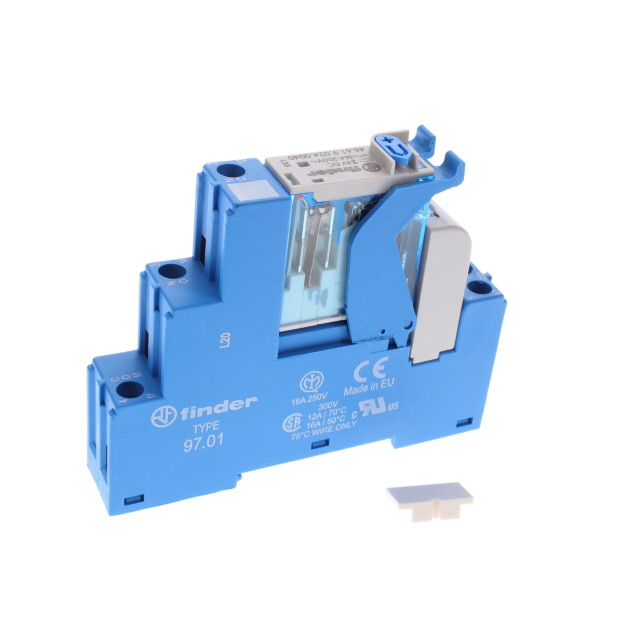

 Finder Relays, Inc. | 1.2 kOhms | 17.5 VDC | Screw Terminal | Non Latching | 7040 VA | 15 ms | 24 VDC | 440 VAC | -40 C | 50 °C | SPDT (1 Form C) | Diode Lighted Indicator | 0.02 A | 16 A | DIN Rail | 12 ms | General Purpose | Silver Nickel (AgNi) | 4.8 VDC |
