H7EC-N Series

Catalog

COUNTER LCD 8 CHAR PANEL MOUNT

Part	Termination Style	Type	Number of Characters Per Row	Operating Mode	Ingress Protection	Reset	Voltage - Supply	Display Type	Count Rate	Input Type	Display Characters - Height	Display Characters - Height	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Weight	Weight	Voltage - Supply

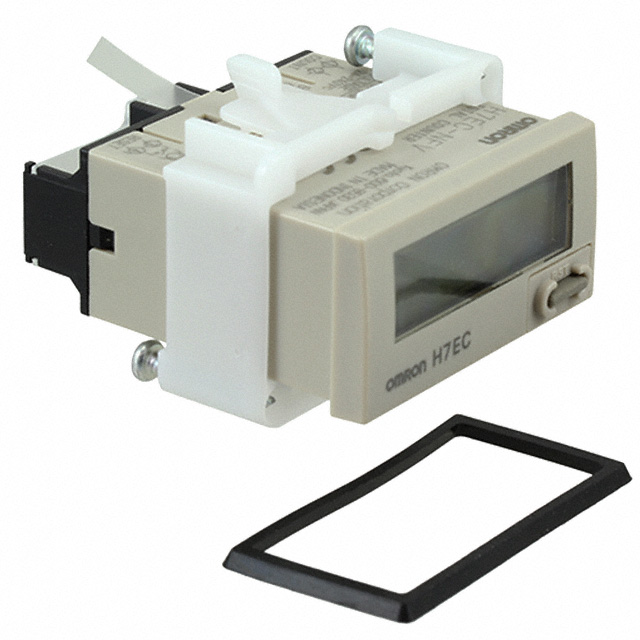

Omron Electronics Inc-EMC Div H7EC-NFV	Screw Terminal	Totalizer	8	Up	IP66	External Front Panel	None Required (Battery Included)	LCD - Black Characters	20 Hz	Voltage	0.338 in	8.6 mm	55 °C	-10 °C	22.2 mm	45 mm

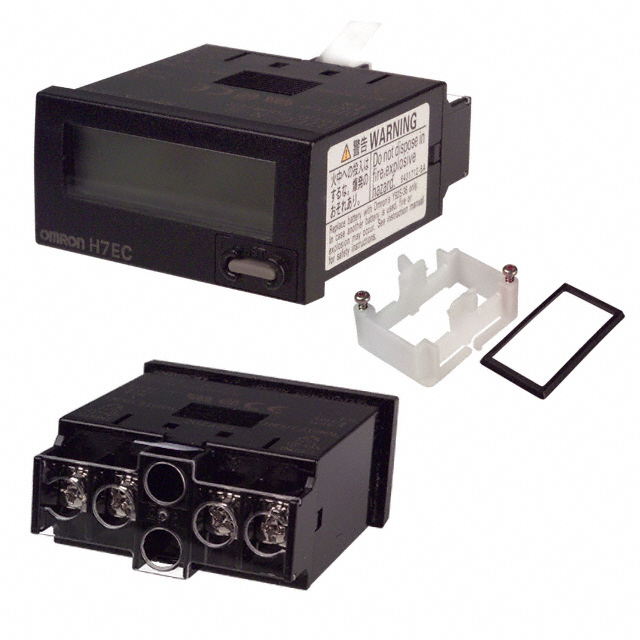

Omron Electronics Inc-EMC Div H7EC-NV-B	Screw Terminal	Totalizer	8	Up	IP66	External Front Panel	None Required (Battery Included)	LCD - Black Characters	1 kHz 30 Hz	Voltage	0.338 in	8.6 mm	55 °C	-10 °C	22.2 mm	45 mm	0.198 lb	89.81 g
Omron Electronics Inc-EMC Div H7EC-NV-BH	Screw Terminal	Totalizer	8	Up	IP66	External Front Panel	None Required		1 kHz 30 Hz	Voltage	0.338 in	8.6 mm	55 °C	-10 °C	22.2 mm	45 mm	0.198 lb	89.81 g	24 VDC

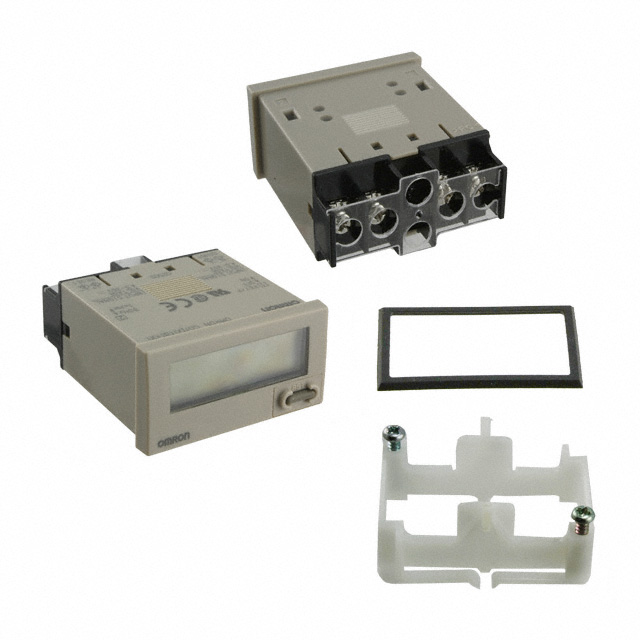

Omron Electronics Inc-EMC Div H7EC-NV	Screw Terminal	Totalizer	8	Up	IP66	External Front Panel	None Required (Battery Included)	LCD - Black Characters	1 kHz 30 Hz	Voltage	0.338 in	8.6 mm	55 °C	-10 °C	22.2 mm	45 mm	0.198 lb	89.81 g
