Quad bilateral switch
Key Features
• HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
• CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Description
AI
The 74LVC4066-Q100 is a high-speed Si-gate CMOS device.
Beta
⌘K
Quad bilateral switch
Quad bilateral switch
| Part | Supplier Device Package | -3db Bandwidth | Crosstalk | Package / Case | Voltage - Supply, Single (V+) [Min] | Voltage - Supply, Single (V+) [Max] | Number of Circuits | Switch Circuit | Charge Injection | Mounting Type | Qualification | Operating Temperature [Min] | Operating Temperature [Max] | Channel Capacitance (CS(off), CD(off)) [custom] | Channel Capacitance (CS(off), CD(off)) [custom] | On-State Resistance (Max) [Max] | Grade | Switch Time (Ton, Toff) (Max) [custom] | Switch Time (Ton, Toff) (Max) [custom] | Current - Leakage (IS(off)) (Max) | Multiplexer/Demultiplexer Circuit | Package / Case [x] | Package / Case [y] | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

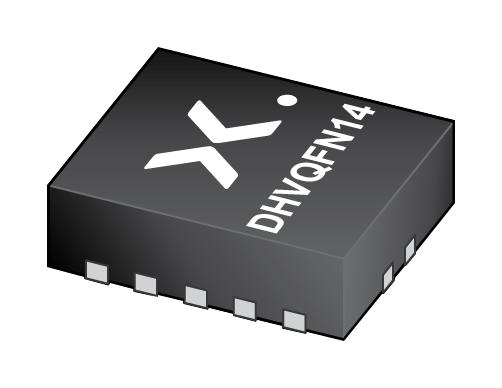

 Freescale Semiconductor - NXP | 14-DHVQFN (2.5x3) | 500 MHz | -56 dB | 14-VFQFN Exposed Pad | 1.65 V | 5.5 V | 4 | SPST - NO | 7.5 pC | Surface Mount | AEC-Q100 | -40 °C | 125 °C | 8 pF | 8 pF | 10 Ohms | Automotive | 5 ns | 3.9 ns | 5 µA | 1:1 | ||||
 Freescale Semiconductor - NXP | 14-SO | 500 MHz | -56 dB | 14-SOIC | 1.65 V | 5.5 V | 4 | SPST - NO | 7.5 pC | Surface Mount | AEC-Q100 | -40 °C | 125 °C | 8 pF | 8 pF | 10 Ohms | Automotive | 5 ns | 3.9 ns | 5 µA | 1:1 | 0.154 in | 3.9 mm | ||
Freescale Semiconductor - NXP | 14-SO | 500 MHz | -56 dB | 14-SOIC | 1.65 V | 5.5 V | 4 | SPST - NO | 7.5 pC | Surface Mount | -40 °C | 125 °C | 8 pF | 8 pF | 10 Ohms | 5 ns | 3.9 ns | 5 µA | 1:1 | 0.154 in | 3.9 mm | ||||
 Freescale Semiconductor - NXP | 14-DHVQFN (2.5x3) | 500 MHz | -56 dB | 14-VFQFN Exposed Pad | 1.65 V | 5.5 V | 4 | SPST - NO | 7.5 pC | Surface Mount | -40 °C | 125 °C | 8 pF | 8 pF | 10 Ohms | 5 ns | 3.9 ns | 5 µA | 1:1 | ||||||
Freescale Semiconductor - NXP | 14-SO | 500 MHz | -56 dB | 14-SOIC | 1.65 V | 5.5 V | 4 | SPST - NO | 7.5 pC | Surface Mount | -40 °C | 125 °C | 8 pF | 8 pF | 10 Ohms | 5 ns | 3.9 ns | 5 µA | 1:1 | 0.154 in | 3.9 mm | ||||
 Freescale Semiconductor - NXP | 14-TSSOP | 500 MHz | -56 dB | 14-TSSOP | 1.65 V | 5.5 V | 4 | SPST - NO | 7.5 pC | Surface Mount | -40 °C | 125 °C | 8 pF | 8 pF | 10 Ohms | 5 ns | 3.9 ns | 5 µA | 1:1 | 0.173 " | 4.4 mm |
