M5377 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

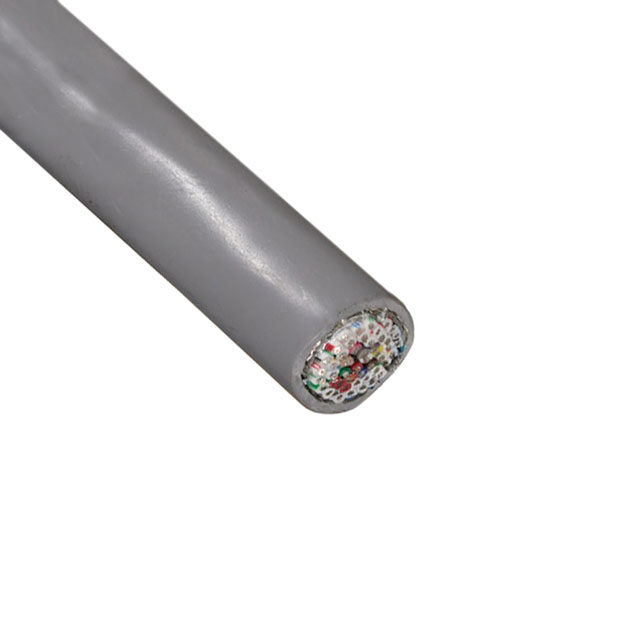

CABLE 50COND 20AWG SHLD 3000'
| Part | Shield Material | Shield Coverage | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket Color | Jacket (Insulation) Material | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 20 AWG | 0.053 " | 1.346 mm | Braid Foil | Slate | Poly-Vinyl Chloride (PVC) | 914.4 m | 3000 ' | 80 °C | -20 ░C | 50 | UL Style 2464 | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | 300 VDC | 0.713 in | 18.11 mm | Drain Wire Rip Cord | Multi-Conductor |
ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 20 AWG | 0.053 " | 1.346 mm | Braid Foil | Slate | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 80 °C | -20 ░C | 50 | UL Style 2464 | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | 300 VDC | 0.713 in | 18.11 mm | Drain Wire Rip Cord | Multi-Conductor |
