GK1F1C-P Series
Manufacturer: ODU
Beta
⌘K

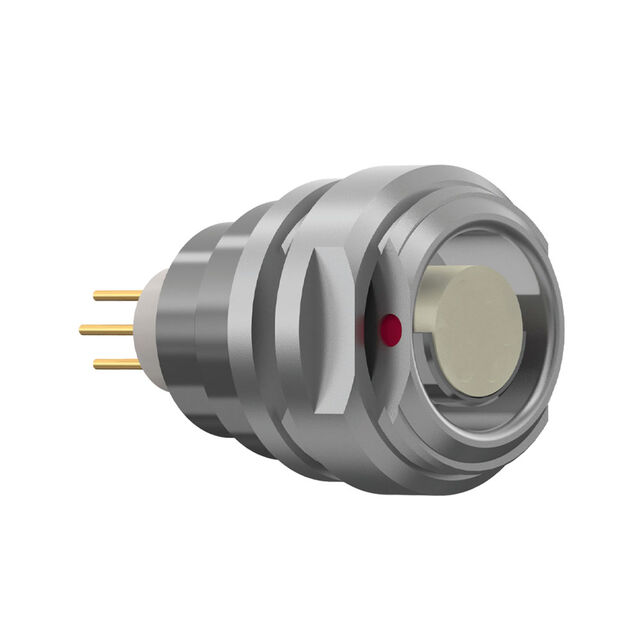

ODU MINI-SNAP RECEPT, STY K, SZ
| Part | Contact Material | Fastening Type | Voltage Rating | Mounting Feature | Material Flammability Rating | Primary Material | Shielding | Number of Positions | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Orientation [custom] | Shell Finish | Current Rating (Amps) | Ingress Protection | Connector Type | Insert Material | Mounting Type | Contact Finish - Mating | Shell Material | Color | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | Push-Pull | 333 V | Bulkhead - Front Side Nut | UL94 V-0 | Metal | Unshielded | 8 | Solder | 120 °C | -40 C | Industrial Medical Military Testing Equipment & Measurement | 1 | Chrome over Nickel | 6 A | IP50 - Dust Protected | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Panel Mount Through Hole | Gold | Brass | Silver | 1 | |
Brass | Push-Pull | 400 V | Bulkhead - Front Side Nut | UL94 V-0 | Metal | Unshielded | 6 | Solder | 120 °C | -40 C | Industrial Medical Military Testing Equipment & Measurement | 1 | Chrome over Nickel | 6 A | IP50 - Dust Protected | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Panel Mount Through Hole | Gold | Brass | Silver | 1 | |
Brass | Push-Pull | 400 V | Bulkhead - Front Side Nut | UL94 V-0 | Metal | Unshielded | 6 | Solder | 120 °C | -40 C | Industrial Medical Military Testing Equipment & Measurement | 1 | Chrome over Nickel | 6 A | IP50 - Dust Protected | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Panel Mount Through Hole | Gold | Brass | Silver | 1 | |
Brass | Push-Pull | 333 V | Bulkhead - Front Side Nut | UL94 V-0 | Metal | Unshielded | 7 | 120 °C | -40 C | Industrial Medical Military Testing Equipment & Measurement | 1 | Chrome over Nickel | 7.5 A | IP50 - Dust Protected | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Panel Mount | Gold | Brass | Silver | 1 |
