MX49004N Series

Catalog

CONN PIN HEADER 4 POS R/A

Part	Style	Insulation Color	Insulation Height	Insulation Height	Number of Positions	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Contact Finish - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Features	Contact Type	Insulation Material	Contact Material	Number of Positions Loaded	Termination	Mounting Type	Fastening Type	Connector Type	Contact Length - Post	Contact Length - Post	Contact Shape	Applications	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
JAE Electronics MX49004NQ3	Board to Cable/Wire	Brown	12.5 mm	0.492 in	4	2	85 °C	-40 C	Tin	Gold	Shrouded - 4 Wall	0.079 "	2 mm	Board Guide Board Lock Shielded	Male Pin	Glass Filled Syndiotactic Polystyrene (SPS)	Brass	All	Solder	Surface Mount Right Angle Through Hole	Latch Holder	Header

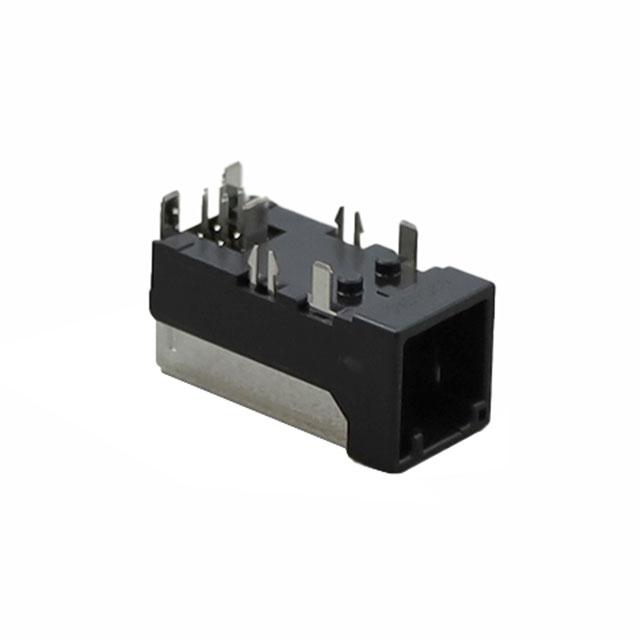

JAE Electronics MX49004NQ2	Board to Cable/Wire	Black	12.5 mm	0.492 in	4	2	85 °C	-40 C	Tin	Gold	Shrouded - 4 Wall	0.079 "	2 mm	Board Guide Board Lock Shielded	Male Pin	Glass Filled Syndiotactic Polystyrene (SPS)	Brass	All	Solder	Right Angle Through Hole	Latch Holder	Header	0.13 "	3.3 mm

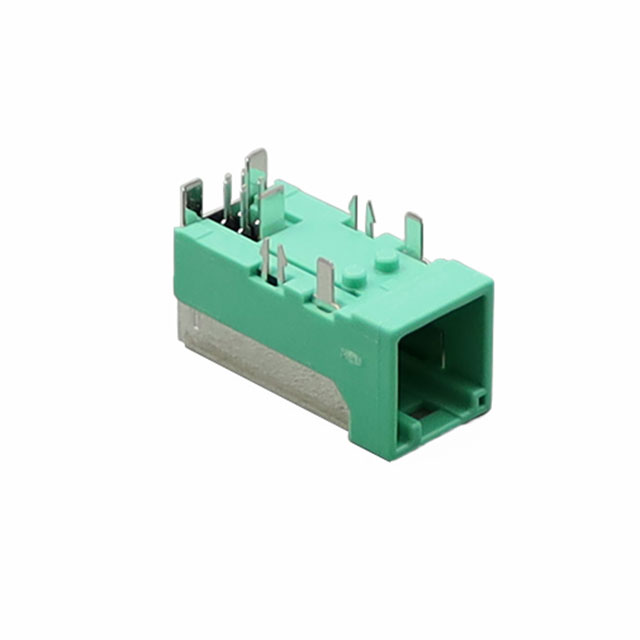

JAE Electronics MX49004NQ4	Board to Cable/Wire	Green	12.5 mm	0.492 in	4	2			Tin	Gold	Shrouded - 4 Wall	0.079 "	2 mm	Board Guide Board Lock Solder Retention	Male Pin	Glass Filled Syndiotactic Polystyrene (SPS)	Brass	All	Solder	Panel Mount Right Angle Through Hole		Header	0.13 "	3.3 mm	Square
JAE Electronics MX49004NQ1	Board to Cable/Wire		12.5 mm	0.492 in		2	85 °C	-40 C	Tin	Gold	Shrouded - 4 Wall	0.079 "	2 mm	Board Guide Board Lock Shielded	Male Pin	Glass Filled Syndiotactic Polystyrene (SPS)	Brass	All	Solder	Right Angle Through Hole	Latch Holder	Header	0.13 "	3.3 mm	Square	Automotive	1	1	2
