C6PPS-1 Series

Catalog

DIP CABLE - CDP14S/AE14G/CDP14S

Part	Pitch - Connector	Pitch - Connector	Shielding	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Length [x]	Length [x]	Cable Termination	Usage	Pitch - Cable	Pitch - Cable	Number of Positions	Number of Rows [custom]	Contact Finish	Length	Length	Length	Color

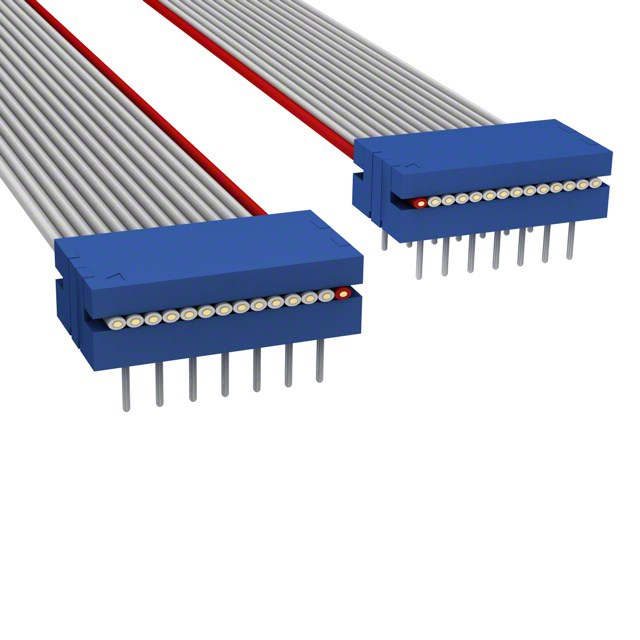

CW Industries C6PPS-1418G	0.1 in	2.54 mm	Unshielded	DIP to DIP	2.54 µm	100 µin	457.2 mm	1.5 ft	IDC	Board In Socket (0.3")	0.05 in	1.27 mm	14	2	Tin

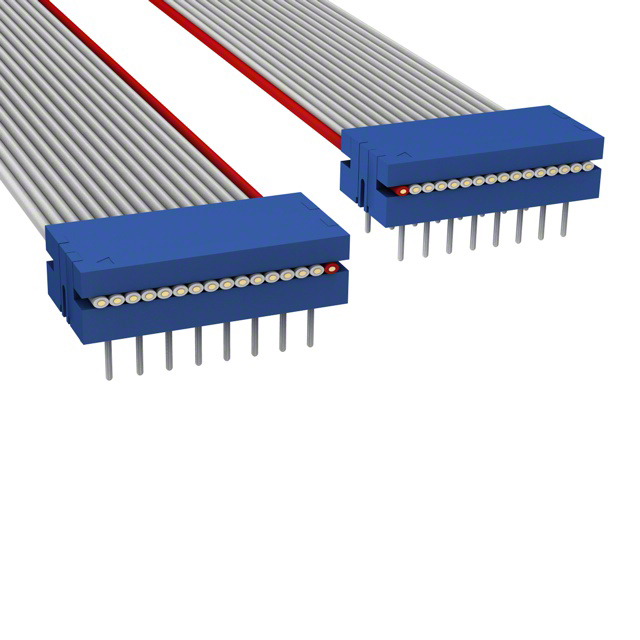

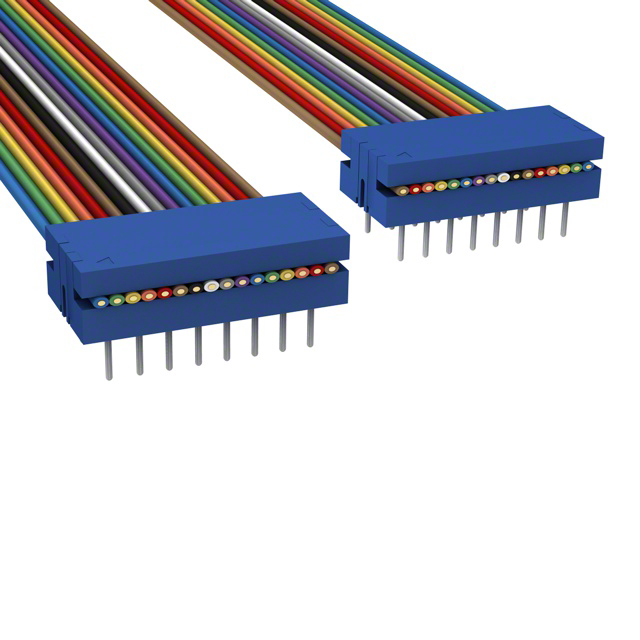

CW Industries C6PPS-1606M	0.1 in	2.54 mm	Unshielded	DIP to DIP	2.54 µm	100 µin			IDC	Board In Socket (0.3")	0.05 in	1.27 mm	16	2	Tin	152.4 mm	0.5 '	6 "	Multiple Ribbon
CW Industries C6PPS-1606G	0.1 in	2.54 mm	Unshielded	DIP to DIP	2.54 µm	100 µin			IDC	Board In Socket (0.3")	0.05 in	1.27 mm	16	2	Tin	152.4 mm	0.5 '	6 "

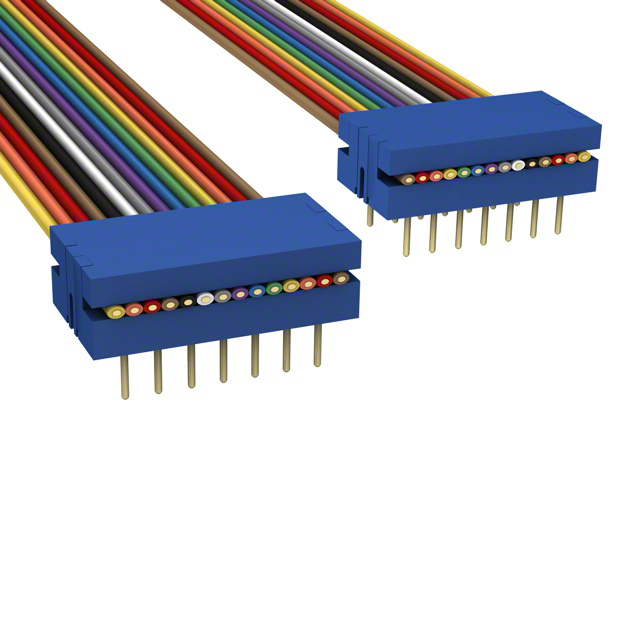

CW Industries C6PPS-1406M	0.1 in	2.54 mm	Unshielded	DIP to DIP	2.54 µm	100 µin			IDC	Board In Socket (0.3")	0.05 in	1.27 mm	14	2	Tin	152.4 mm	0.5 '	6 "	Multiple Ribbon
CW Industries C6PPS-1418M	0.1 in	2.54 mm	Unshielded	DIP to DIP	2.54 µm	100 µin	457.2 mm	1.5 ft	IDC	Board In Socket (0.3")	0.05 in	1.27 mm	14	2	Tin				Multiple Ribbon
CW Industries C6PPS-1618M	0.1 in	2.54 mm	Unshielded	DIP to DIP	2.54 µm	100 µin	457.2 mm	1.5 ft	IDC	Board In Socket (0.3")	0.05 in	1.27 mm	16	2	Tin				Multiple Ribbon
CW Industries C6PPS-1436G	0.1 in	2.54 mm	Unshielded	DIP to DIP	2.54 µm	100 µin			IDC	Board In Socket (0.3")	0.05 in	1.27 mm	14	2	Tin	91.44 cm	3 ft
