HHBC10 Series

Manufacturer: KEMET

Catalog

CMC 68UH 3A 2LN TH

Part	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Inductance @ Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Package / Case	Package / Case	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max)

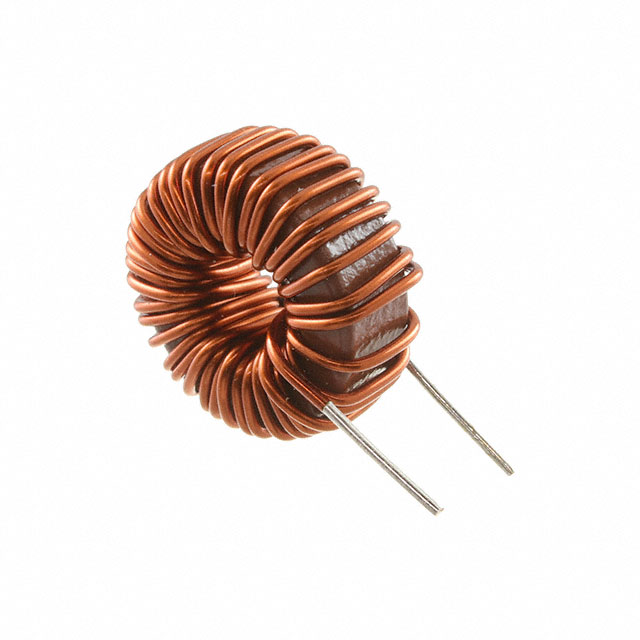

KEMET HHBC10-0R8A0068V	42.3 mOhm	3 A	125 °C	-40 C	2	68 µH 100 kHz	21.5 mm	0.846 in	Through Hole	No Base Vertical	2 Lead

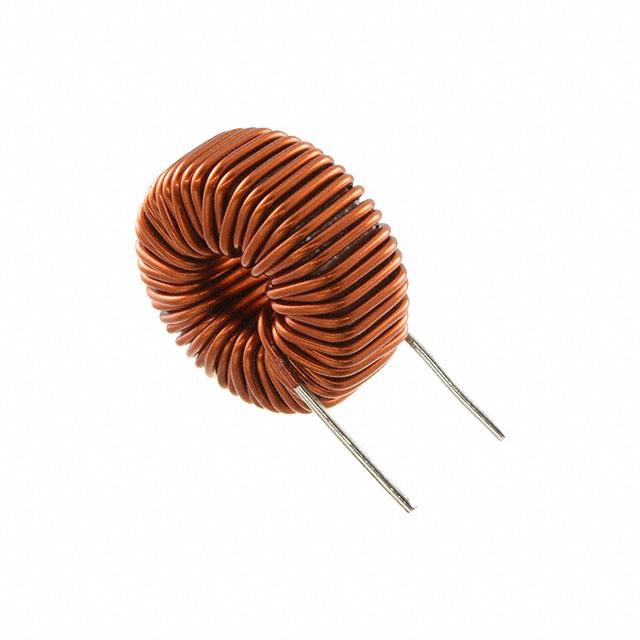

KEMET HHBC10-0R8A0107V	53 mOhm	3 A	125 °C	-40 C	2	107 µH	22 mm	0.866 "	Through Hole	No Base Vertical	2 Lead	0.866 in	22 mm

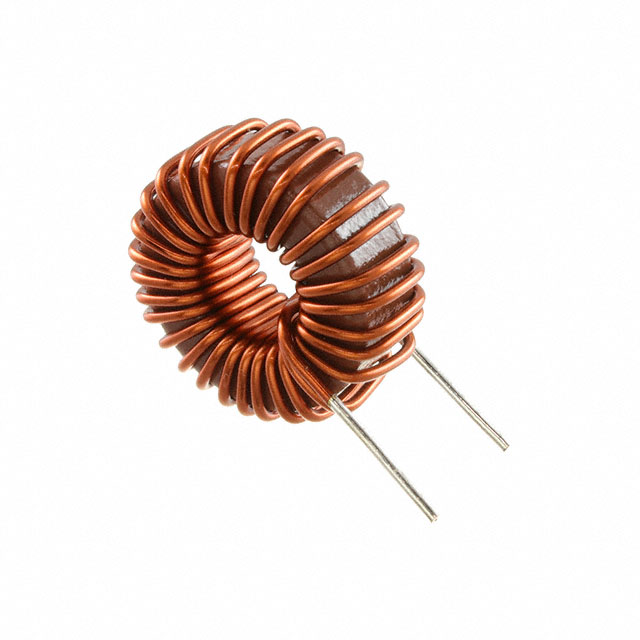

KEMET HHBC10-0R8A0038V		3 A	125 °C	-40 C	2	38 µH	21.5 mm	0.846 in	Through Hole	No Base Vertical	2 Lead			31.2 mOhm
