SML-LX4014 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

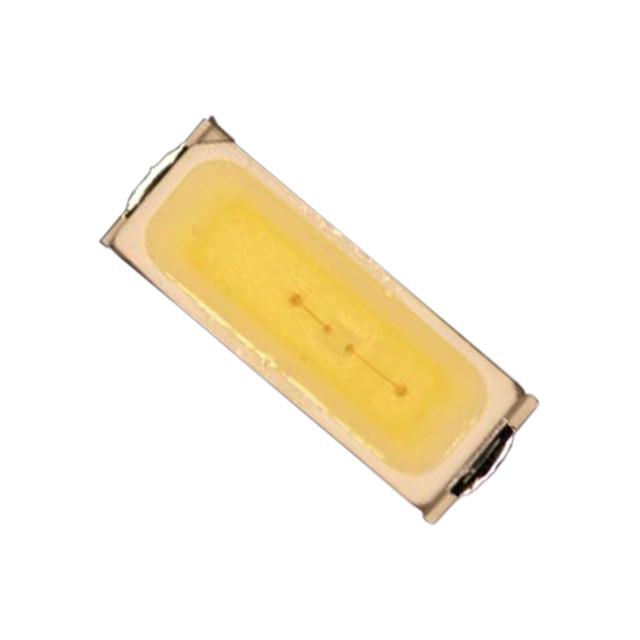

LED TITANBRITE COOL WHT SMD
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Color | Lumens/Watt @ Current - Test | Supplier Device Package | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Current - Test | Current - Max [Max] | CCT (K) | Viewing Angle | Flux @ 25°C, Current - Test | Voltage - Forward (Vf) (Typ) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 0.6 mm | 0.024 in | Cool White | 113 lm/W | SMD | 0.15 " | 0.055 in | 1.4 mm | 3.8 mm | Surface Mount | 60 mA | 60 mA | 6500 K | 120 ° | 21 lm | 3.1 V | 1606 (4014 Metric) |
