19460160 Series
Manufacturer: HARTING
Beta
⌘K
HAN-ECO 16A-HBM
| Part | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Size | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Style | Housing Material | Ingress Protection | Connector Type | Lock Location | Features | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

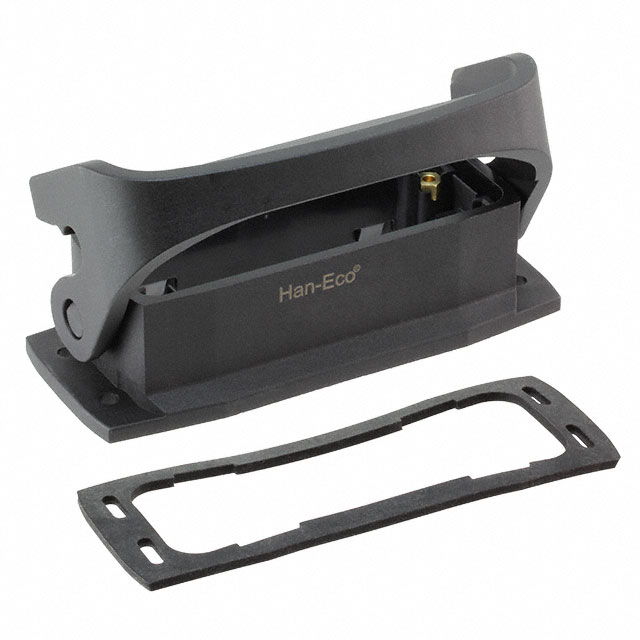

 HARTING | Black | 125 °C | -40 C | 16 A | 1.063 in | 27 mm | 3.839 " | 1.575 " | 40 mm | 97.5 mm | Bottom Entry | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Base - Panel Mount | Locking Clip (1) on Base Bottom | ||

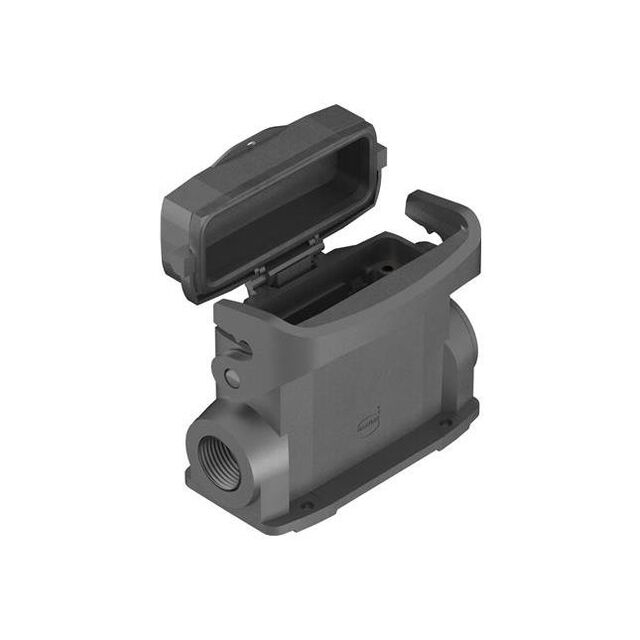

 HARTING | Black | 125 °C | -40 C | 16 A | 2.407 in | 61.15 mm | 3.823 in | 1.969 in | 50 mm | 97.1 mm | Side Entry | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Base - Box Mount | Locking Clip (1) on Base Bottom | Cover | M20 |
 HARTING | Black | 125 °C | -40 C | 16 A | Top Entry | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (1) on Base Bottom | M25 | |||||||

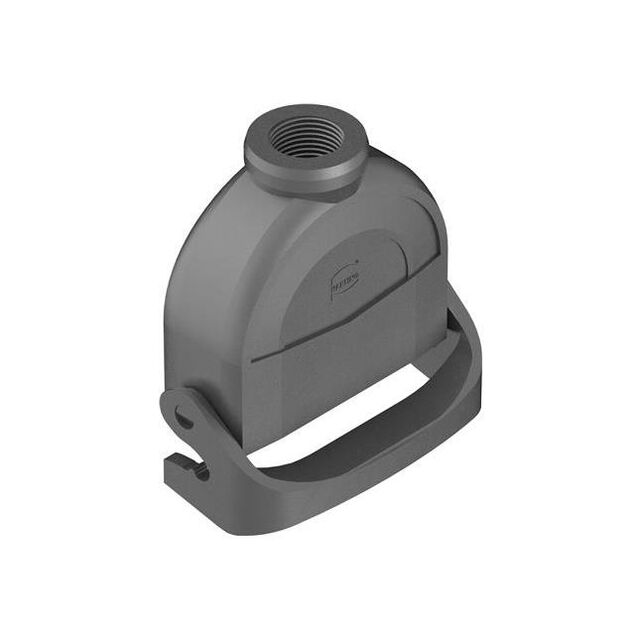

 HARTING | Black | 125 °C | -40 C | 16 A | Top Entry Top or Bottom Entry | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Hood - Coupling | Locking Clip (1) on Hood | Cable to Cable | M20 | ||||||

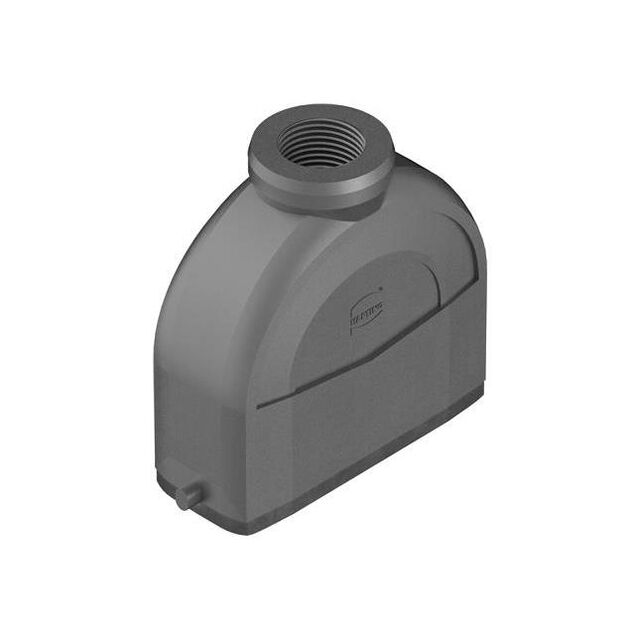

HARTING | Black | 125 °C | -40 C | 16 A | Top Entry | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (1) on Base Bottom | M20 | |||||||

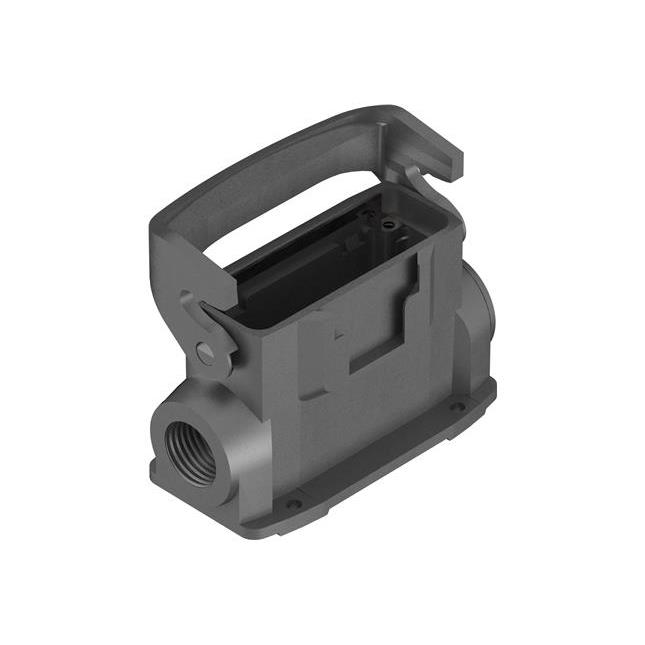

 HARTING | Black | 125 °C | -40 C | 16 A | Side Entry Dual | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Base - Box Mount | Locking Clip (1) on Base Bottom | Feed Through | M20 | ||||||
 HARTING | Black | 125 °C | -40 C | 16 A | Side Entry Dual | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Base - Box Mount | Locking Clip (1) on Base Bottom | Feed Through | M25 | ||||||

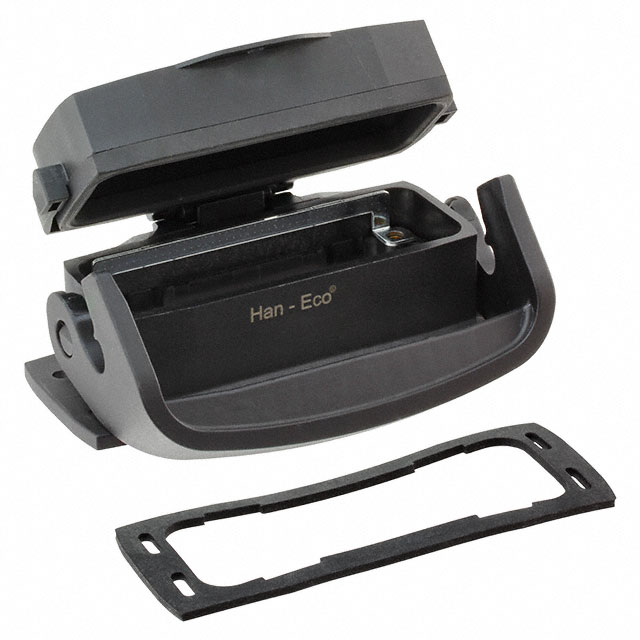

 HARTING | Black | 125 °C | -40 C | 16 A | 1.063 in | 27 mm | 3.839 " | 1.575 " | 40 mm | 97.5 mm | Bottom Entry | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Base - Panel Mount | Locking Clip (1) on Base Bottom | Cover | |

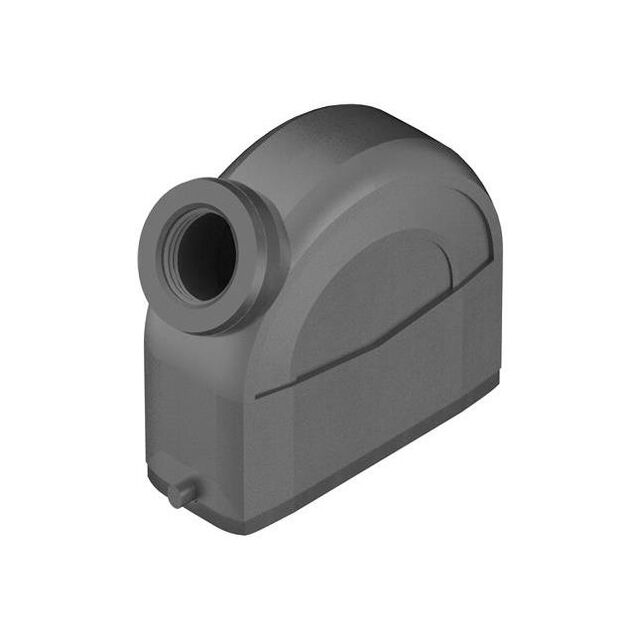

 HARTING | Black | 125 °C | -40 C | 16 A | Side Entry | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Hood | Locking Clip (1) on Base Bottom | M20 | |||||||
HARTING | Black | 125 °C | -40 C | 16 A | Top Entry Top or Bottom Entry | Glass Filled Nylon Polyamide (PA) | IP65 - Dust Tight Water Resistant | Hood - Coupling | Locking Clip (1) on Hood | Cable to Cable | M25 |
