3310C Series
Manufacturer: Bourns Inc.
Beta
⌘K

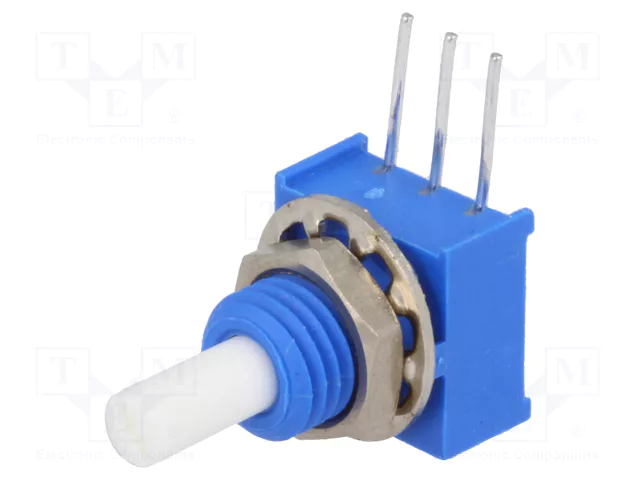

POT 10K OHM 1/4W PLASTIC LINEAR
| Part | Size - Body [y] | Size - Body [x] | Size - Body [x] | Size - Body [y] | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Built in Switch | Number of Turns | Actuator Length [x] | Actuator Length [x] | Resistance (Ohms) | Mounting Type | Number of Gangs | Termination Style | Tolerance | Features | Bushing Thread | Actuator Type | Taper | Power (Watts) | Power (Watts) | Rotation | Resistive Material | Adjustment Type | Temperature Coefficient | Resistance (Ohms) [custom] | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.375 " | 9.53 mm | 0.375 " | 9.53 mm | 3.18 mm | 0.125 in | None | 1 | 12.7 mm | 0.5 in | 10k | Panel Mount | 1 | PC Pins | 20 % | Sealed | 1/4-32 | Slotted | Linear | 0.25 W | 0.25 W | 300 ░ | Conductive Plastic | Side Adjustment | 1000 ppm/°C | ||
 Bourns Inc. | 0.375 " | 9.53 mm | 0.375 " | 9.53 mm | 3.18 mm | 0.125 in | None | 1 | 12.7 mm | 0.5 in | Panel Mount | 1 | PC Pins | 20 % | Sealed | 1/4-32 | Flatted | Linear | 0.25 W | 0.25 W | 300 ░ | Conductive Plastic | Side Adjustment | 1000 ppm/°C | |||
Bourns Inc. | 0.375 " | 9.53 mm | 0.375 " | 9.53 mm | 3.18 mm | 0.125 in | None | 1 | 12.7 mm | 0.5 in | Panel Mount | 1 | PC Pins | 20 % | Sealed | 1/4-32 | Flatted | Linear | 0.25 W | 0.25 W | 300 ░ | Conductive Plastic | Side Adjustment | 1000 ppm/°C | 50 kOhms | ||
 Bourns Inc. | 0.375 " | 9.53 mm | 0.375 " | 9.53 mm | 3.18 mm | 0.125 in | None | 1 | 5.59 mm | 0.22 in | Through Hole | 1 | PC Pins | 20 % | Sealed | Flatted | Linear | 0.25 W | 0.25 W | 300 ░ | Conductive Plastic | Side Adjustment | 1000 ppm/°C | 50 kOhms | |||
 Bourns Inc. | 0.375 " | 9.53 mm | 0.375 " | 9.53 mm | 3.18 mm | 0.125 in | None | 1 | 12.7 mm | 0.5 in | Panel Mount | 1 | PC Pins | 20 % | Sealed | 1/4-32 | Slotted | Linear | 0.25 W | 0.25 W | 300 ░ | Conductive Plastic | Side Adjustment | 1000 ppm/°C | 1 MΩ | ||
Bourns Inc. | 0.375 " | 9.53 mm | 0.375 " | 9.53 mm | 3.18 mm | 0.125 in | None | 1 | 12.7 mm | 0.5 in | Panel Mount | 1 | PC Pins | 20 % | Sealed | 1/4-32 | Slotted | Linear | 0.25 W | 0.25 W | 300 ░ | Conductive Plastic | Side Adjustment | 1000 ppm/°C | 50 kOhms | ||
Bourns Inc. | 0.375 " | 9.53 mm | 0.375 " | 9.53 mm | 3.18 mm | 0.125 in | None | 1 | 12.7 mm | 0.5 in | 10k | Panel Mount | 1 | PC Pins | 20 % | Sealed | 1/4-32 | Slotted | Linear | 0.25 W | 0.25 W | 300 ░ | Conductive Plastic | Side Adjustment | 1000 ppm/°C | ||
 Bourns Inc. | 0.375 " | 9.53 mm | 0.375 " | 9.53 mm | 3.18 mm | 0.125 in | None | 1 | 19.05 mm | 0.75 in | 1k | Panel Mount | 1 | PC Pins | 20 % | Sealed | 1/4-32 | Flatted | Linear | 0.25 W | 0.25 W | 300 ░ | Conductive Plastic | Side Adjustment | 1000 ppm/°C | ||
Bourns Inc. | 0.375 " | 9.53 mm | 0.375 " | 9.53 mm | 3.18 mm | 0.125 in | None | 1 | 12.7 mm | 0.5 in | Panel Mount | 1 | PC Pins | 20 % | Sealed | 1/4-32 | Slotted | Linear | 0.25 W | 0.25 W | 300 ░ | Conductive Plastic | Side Adjustment | 1000 ppm/°C | 5 kOhms | ||
Bourns Inc. | 0.375 " | 9.53 mm | 0.375 " | 9.53 mm | 3.18 mm | 0.125 in | None | 1 | 12.7 mm | 0.5 in | 1k | Panel Mount | 1 | PC Pins | 20 % | Sealed | 1/4-32 | Slotted | Linear | 0.25 W | 0.25 W | 300 ░ | Conductive Plastic | Side Adjustment | 1000 ppm/°C |
