842-060 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 60POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Contact Material	Contact Type	Card Type	Gender	Mounting Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Termination	Color	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Pitch	Pitch	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Read Out	Features

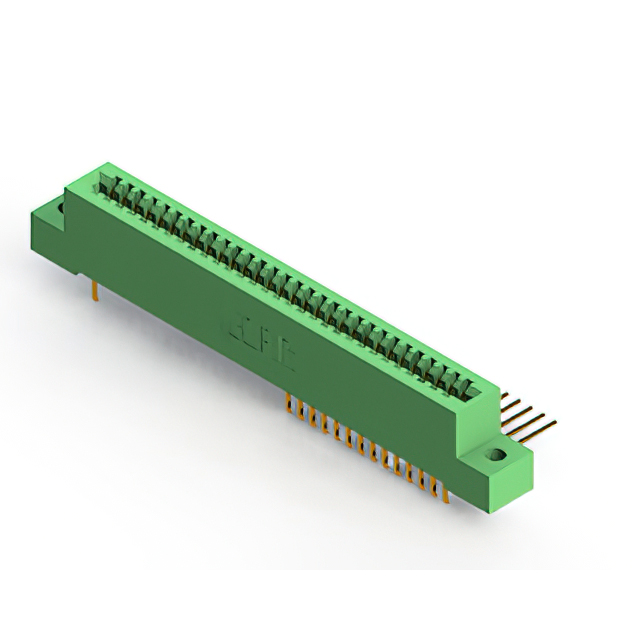

EDAC Inc. 842-060-559-202	Diallyl Phthalate (DAP)	2	125 °C	-40 C	2	Copper Alloy	Cantilever	Non Specified - Dual Edge	Female	Right Angle Through Hole	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Solder	Green	60	0.07 in 1.78 mm	0.054 in 1.37 mm	30	0.1 "	2.54 mm	Gold	0.25 Ám	10 Áin	Dual
EDAC Inc. 842-060-559-207	Diallyl Phthalate (DAP)	2	125 °C	-40 C	2	Copper Alloy	Cantilever	Non Specified - Dual Edge	Female	Right Angle Through Hole	Flush Mount M3 Threaded Insert Top Opening			Solder	Green	60	0.07 in 1.78 mm	0.054 in 1.37 mm	30	0.1 "	2.54 mm	Gold	0.25 Ám	10 Áin	Dual

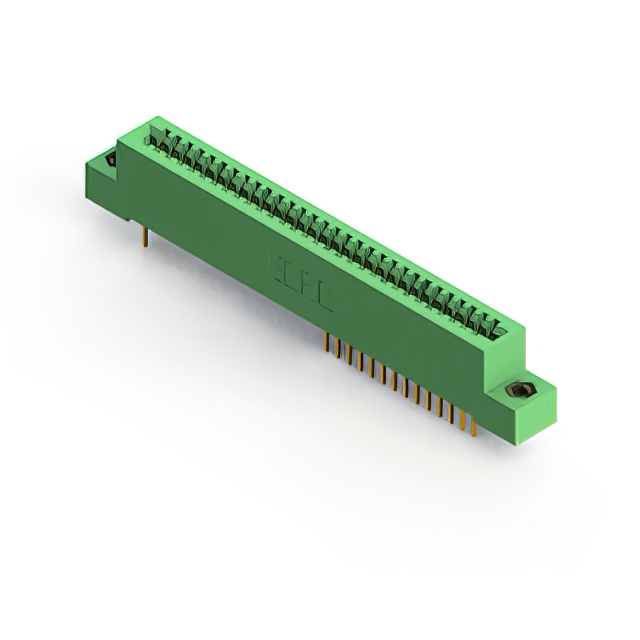

EDAC Inc. 842-060-541-208	Diallyl Phthalate (DAP)	2	125 °C	-40 C	2	Copper Alloy	Cantilever	Non Specified - Dual Edge	Female	Through Hole	4-40 Flush Mount Threaded Insert Top Opening			Wire Wrap	Green	60	0.07 in 1.78 mm	0.054 in 1.37 mm	30	0.1 "	2.54 mm	Gold	0.25 Ám	10 Áin	Dual

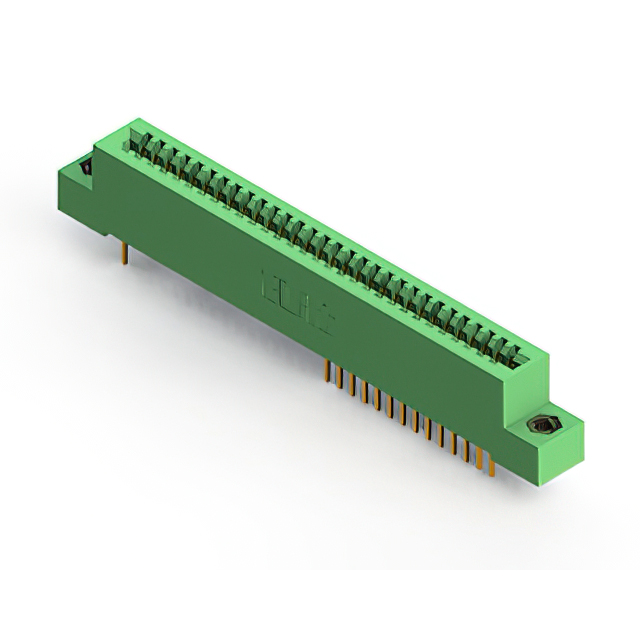

EDAC Inc. 842-060-523-207	Diallyl Phthalate (DAP)	2	125 °C	-40 C	2	Copper Alloy	Cantilever	Non Specified - Dual Edge	Female	Through Hole	Flush Mount M3 Threaded Insert Top Opening			Solder	Green	60	0.07 in 1.78 mm	0.054 in 1.37 mm	30	0.1 "	2.54 mm	Gold	0.25 Ám	10 Áin	Dual

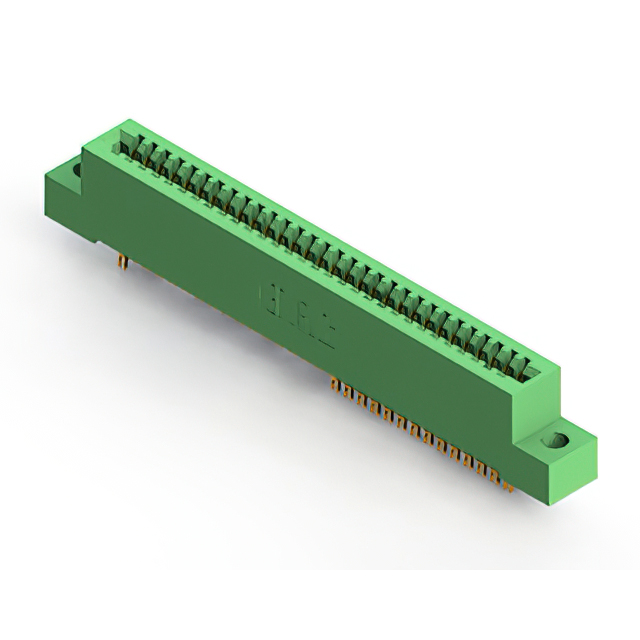

EDAC Inc. 842-060-555-204	Diallyl Phthalate (DAP)	2	125 °C	-40 C	2	Copper Alloy	Cantilever	Non Specified - Dual Edge	Female	Board Edge Straddle Mount	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	Solder	Green	60	0.07 in 1.78 mm	0.054 in 1.37 mm	30	0.1 "	2.54 mm	Gold	0.25 Ám	10 Áin	Dual	Card Extender

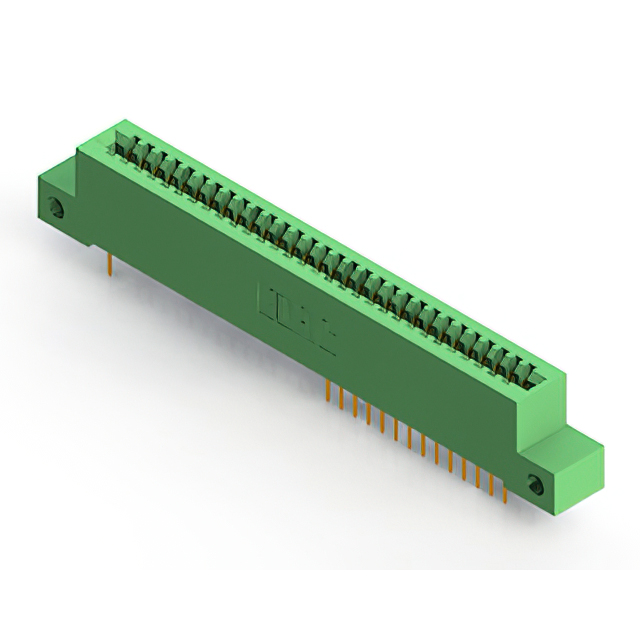

EDAC Inc. 842-060-524-212	Diallyl Phthalate (DAP)	2	125 °C	-40 C	2	Copper Alloy	Cantilever	Non Specified - Dual Edge	Female	Through Hole	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "	Solder	Green	60	0.07 in 1.78 mm	0.054 in 1.37 mm	30	0.1 "	2.54 mm	Gold	0.25 Ám	10 Áin	Dual

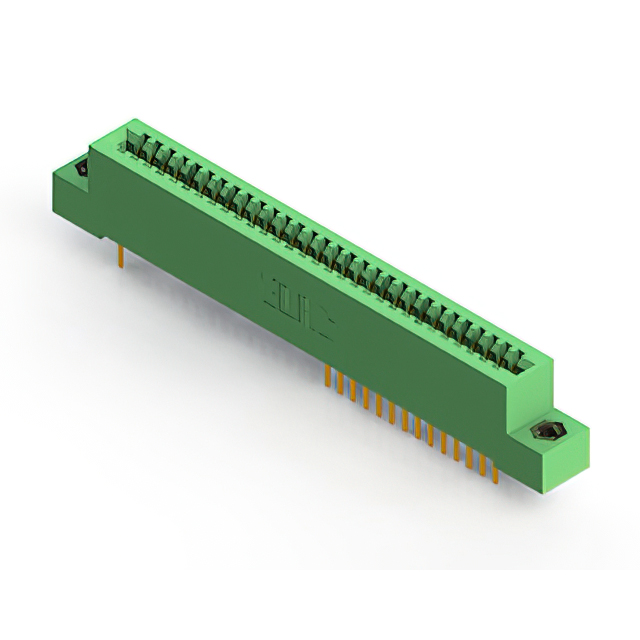

EDAC Inc. 842-060-520-208	Diallyl Phthalate (DAP)	2	125 °C	-40 C	2	Copper Alloy	Cantilever	Non Specified - Dual Edge	Female	Through Hole	4-40 Flush Mount Threaded Insert Top Opening			Solder	Green	60	0.07 in 1.78 mm	0.054 in 1.37 mm	30	0.1 "	2.54 mm	Gold	0.25 Ám	10 Áin	Dual

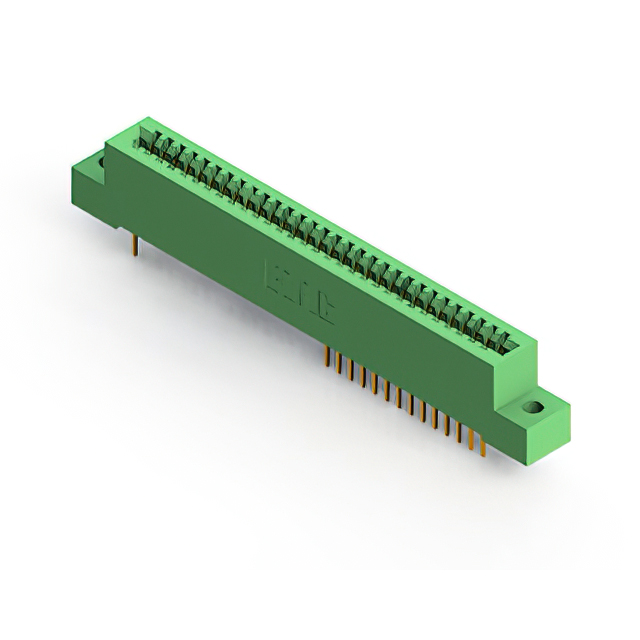

EDAC Inc. 842-060-540-202	Diallyl Phthalate (DAP)	2	125 °C	-40 C	2	Copper Alloy	Cantilever	Non Specified - Dual Edge	Female	Through Hole	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Wire Wrap	Green	60	0.07 in 1.78 mm	0.054 in 1.37 mm	30	0.1 "	2.54 mm	Gold	0.25 Ám	10 Áin	Dual
EDAC Inc. 842-060-500-212	Diallyl Phthalate (DAP)	2	125 °C	-40 C	2	Copper Alloy	Cantilever	Non Specified - Dual Edge	Female	Through Hole	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "	Solder Eyelet(s)	Green	60	0.07 in 1.78 mm	0.054 in 1.37 mm	30	0.1 "	2.54 mm	Gold	0.25 Ám	10 Áin	Dual
EDAC Inc. 842-060-558-207	Diallyl Phthalate (DAP)	2	125 °C	-40 C	2	Copper Alloy	Cantilever	Non Specified - Dual Edge	Female	Right Angle Through Hole	Flush Mount M3 Threaded Insert Top Opening			Solder	Green	60	0.07 in 1.78 mm	0.054 in 1.37 mm	30	0.1 "	2.54 mm	Gold	0.25 Ám	10 Áin	Dual
