2350224 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

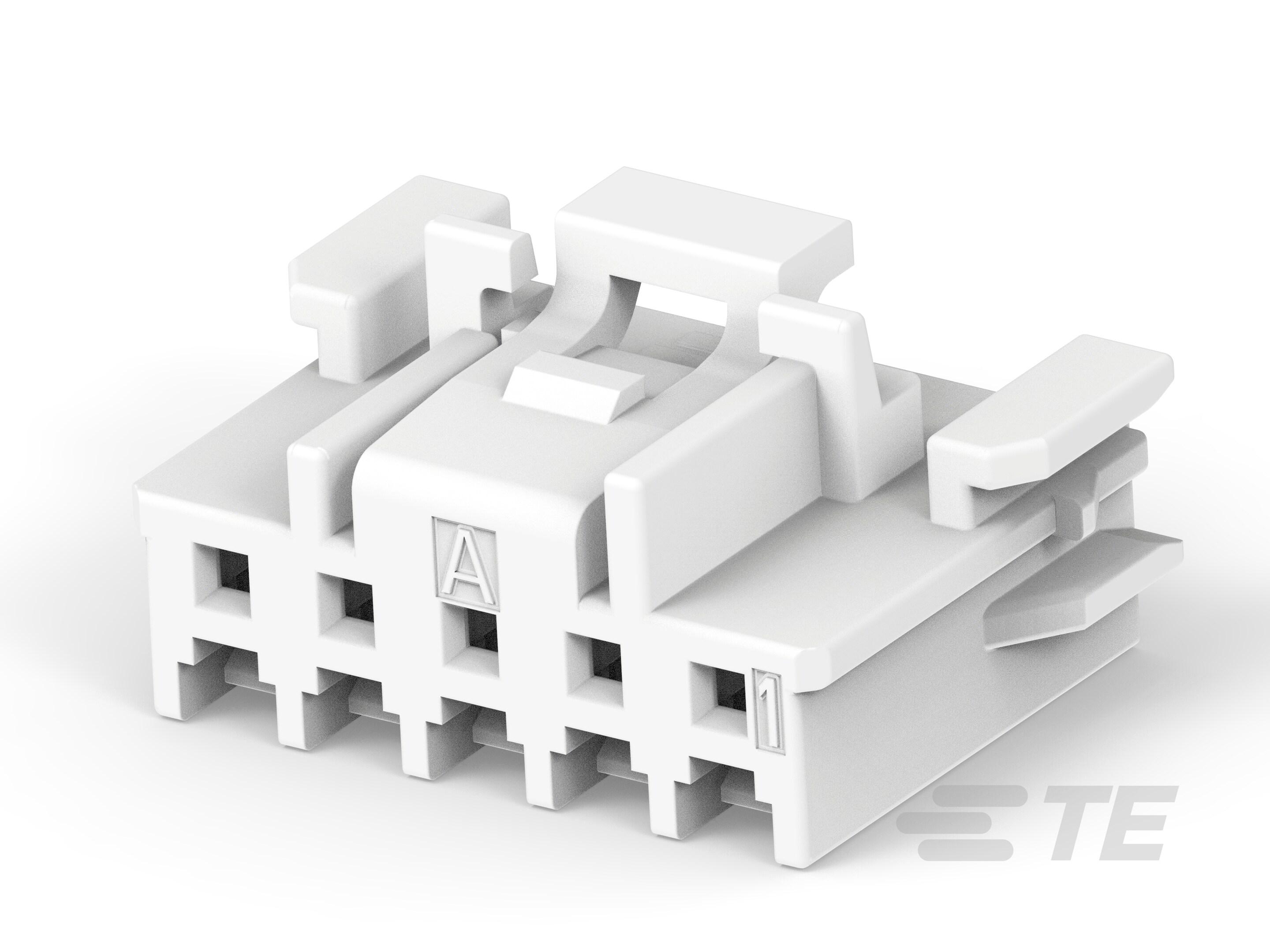

CONNECTOR HOUSING, NATURAL, KEY A, SGI2.0 SERIES, PLUG, 5 POSITIONS, 2 MM
| Part | Note | Contact Termination | Mounting Type | Number of Rows | Color | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Insulation Material | Pitch [x] | Pitch [x] | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Contacts Not Included | Crimp | Free Hanging (In-Line) | 1 | Natural | Female Socket | -40 °C | 105 ░C | Latch Holder | Polyamide (PA66) Nylon 6/6 Glass Filled | 0.079 in | 2 mm | Plug | |
 TE Connectivity Raychem Cable Protection | Contacts Not Included | Crimp | Free Hanging (In-Line) | 1 | Black | Female Socket | -40 °C | 105 ░C | Latch Holder | Polyamide (PA66) Nylon 6/6 Glass Filled | 0.079 in | 2 mm | Plug | 10 |
 TE Connectivity Raychem Cable Protection | Contacts Not Included | Crimp | Free Hanging (In-Line) | 1 | Natural | Female Socket | -40 °C | 105 ░C | Latch Holder | Polyamide (PA66) Nylon 6/6 Glass Filled | 0.079 in | 2 mm | Plug | 2 |
 TE Connectivity Raychem Cable Protection | Contacts Not Included | Crimp | Free Hanging (In-Line) | 1 | Black | Female Socket | -40 °C | 105 ░C | Latch Holder | Polyamide (PA66) Nylon 6/6 Glass Filled | 0.079 in | 2 mm | Plug | 2 |
 TE Connectivity Raychem Cable Protection | Contacts Not Included | Crimp | Free Hanging (In-Line) | 1 | Natural | Female Socket | -40 °C | 105 ░C | Latch Holder | Polyamide (PA66) Nylon 6/6 Glass Filled | 0.079 in | 2 mm | Plug | 6 |
 TE Connectivity Raychem Cable Protection | Contacts Not Included | Crimp | Free Hanging (In-Line) | 1 | Natural | Female Socket | -40 °C | 105 ░C | Latch Holder | Polyamide (PA66) Nylon 6/6 Glass Filled | 0.079 in | 2 mm | Plug | 7 |
 TE Connectivity Raychem Cable Protection | Contacts Not Included | Crimp | Free Hanging (In-Line) | 1 | Black | Female Socket | -40 °C | 105 ░C | Latch Holder | Polyamide (PA66) Nylon 6/6 Glass Filled | 0.079 in | 2 mm | Plug | |
 TE Connectivity Raychem Cable Protection | Contacts Not Included | Crimp | Free Hanging (In-Line) | 1 | Natural | Female Socket | -40 °C | 105 ░C | Latch Holder | Polyamide (PA66) Nylon 6/6 Glass Filled | 0.079 in | 2 mm | Plug | 4 |
