M13404 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

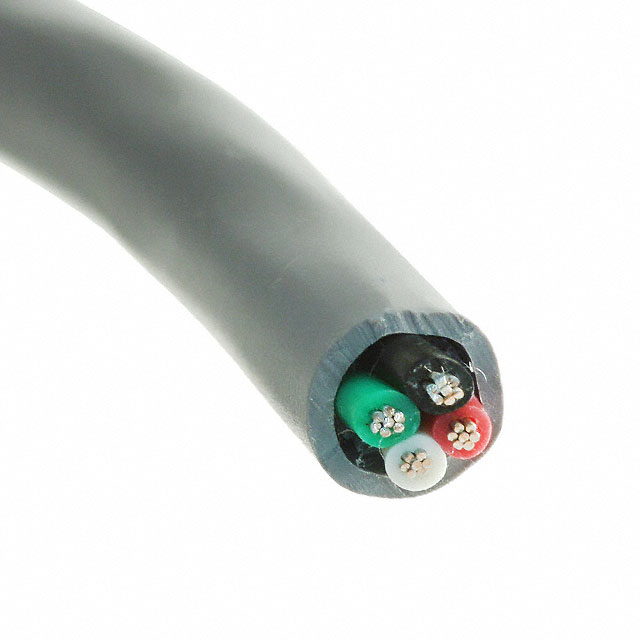

CABLE 4COND 20AWG SLATE
| Part | Voltage | Jacket (Insulation) Material | Conductor Insulation | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 300 VDC | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 20 AWG | 0.219 " | 5.56 mm | Slate | UL Style 2464 | 28 AWG | 7 | 4 | 0.813 mm | 0.032 in | Copper Tinned | 152.4 m | 500 ft | 80 °C | -20 ░C | Multi-Conductor | ||
ALPHA WIRE | 300 VDC | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 20 AWG | 0.219 " | 5.56 mm | Slate | UL Style 2464 | 28 AWG | 7 | 4 | 0.813 mm | 0.032 in | Copper Tinned | 80 °C | -20 ░C | Multi-Conductor | 100 ft | 30.5 m | ||
ALPHA WIRE | 300 VDC | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 20 AWG | 0.219 " | 5.56 mm | Slate | UL Style 2464 | 28 AWG | 7 | 4 | 0.813 mm | 0.032 in | Copper Tinned | 304.8 m | 1000 ft | 80 °C | -20 ░C | Multi-Conductor |
