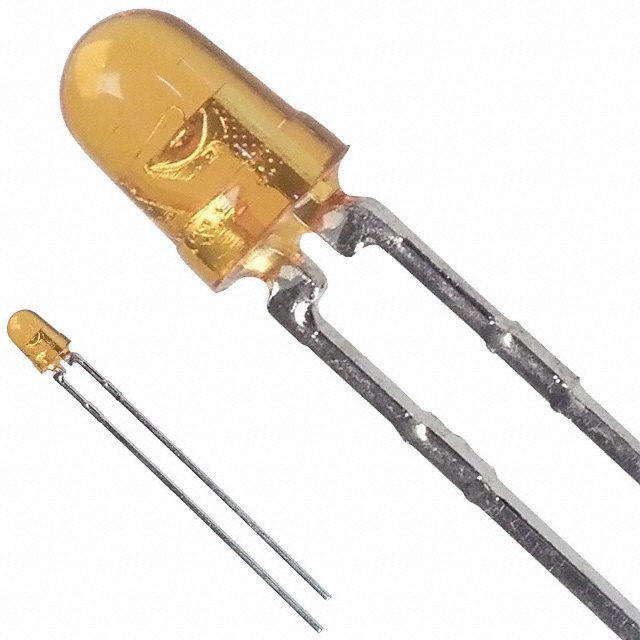

HLMP-1421 Series

Catalog

LED YELLOW CLEAR T-1 T/H R/A

Part	Supplier Device Package	Lens Transparency	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lens Style	Wavelength - Dominant	Configuration	Mounting Type	Lens Color	Wavelength - Peak	Color	Height (Max) [z]	Millicandela Rating	Lens Size	Lens Size	Package / Case	Current - Test
Broadcom Limited HLMP-1421-F00A2	T-1	Clear	45 °	2 V	Round with Domed Top	585 nm	Standard	Right Angle Through Hole	Yellow	583 nm	Yellow	6.35 mm	15 mcd	3 mm	T-1	Radial	10 mA
Broadcom Limited HLMP-1421-F0002	T-1	Clear	45 °	2 V	Round with Domed Top	585 nm	Standard	Through Hole	Yellow	583 nm	Yellow	6.35 mm	15 mcd	3 mm	T-1	Radial	10 mA
