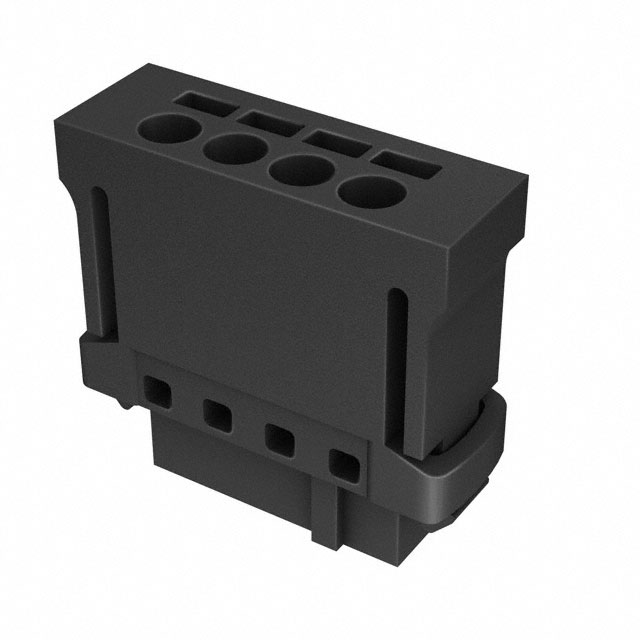

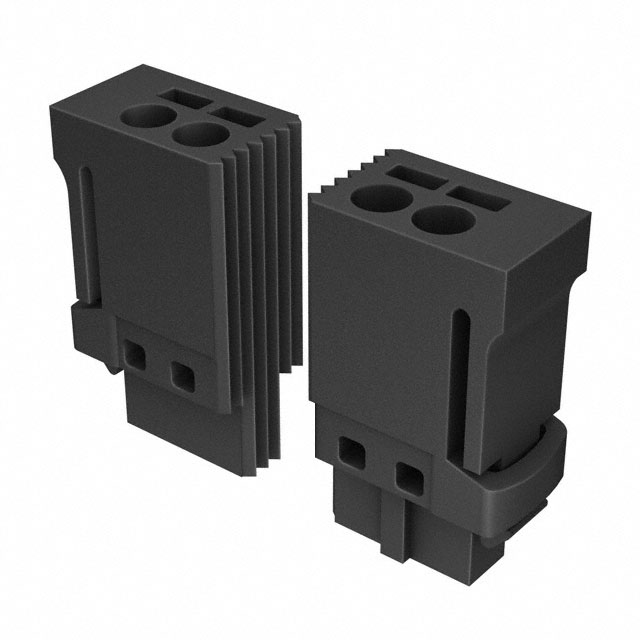

XW4H Series

Catalog

TERM BLOCK PLUG 10POS 2.54MM

Part	Contact Material	Housing Material	Insulation Height	Insulation Height	Wire Strip Length	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Type	Current - UL	Contact Mating Finish	Positions Per Level	Plug Wire Entry	Number of Levels	Voltage - UL	Pitch	Pitch	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Features	Color	Number of Positions	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
Omron Electronics Inc-EMC Div XW4H-10A1	Copper Alloy	Glass Filled Liquid Crystal Polymer (LCP)	4.9 mm	0.193 "	6 mm	0.5 mm²	0.14 mm²	Plug Female Sockets	6 A	Tin	10	180 °	1	160 V	0.1 "	2.54 mm	Free Hanging (In-Line)	20 AWG	26 AWG	Latch Lock	Black	10	Push-In Spring Screwless - Leg Spring	-45 °C	125 °C
Omron Electronics Inc-EMC Div XW4H-05A1	Copper Alloy	Glass Filled Liquid Crystal Polymer (LCP)	4.9 mm	0.193 "	6 mm	0.5 mm²	0.14 mm²	Plug Female Sockets	6 A	Tin	5	180 °	1	160 V	0.1 "	2.54 mm	Free Hanging (In-Line)	20 AWG	26 AWG	Latch Lock	Black	5	Push-In Spring Screwless - Leg Spring	-45 °C	125 °C
Omron Electronics Inc-EMC Div XW4H-04A1	Copper Alloy	Glass Filled Liquid Crystal Polymer (LCP)	4.9 mm	0.193 "	6 mm	0.5 mm²	0.14 mm²	Plug Female Sockets	6 A	Tin	4	180 °	1	160 V	0.1 "	2.54 mm	Free Hanging (In-Line)	20 AWG	26 AWG	Latch Lock	Black	4	Push-In Spring Screwless - Leg Spring	-45 °C	125 °C
