7002-1572 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SSMC F STR NA CR 2.6/50S
| Part | Body Material | Voltage Rating | Dielectric Material | Center Contact Plating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Connector Style | Cable Group | Cable Group | Frequency - Max [Max] | Impedance | Housing Color | Number of Ports | Fastening Type | Mounting Type | Connector Type | Contact Termination | Shield Termination | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

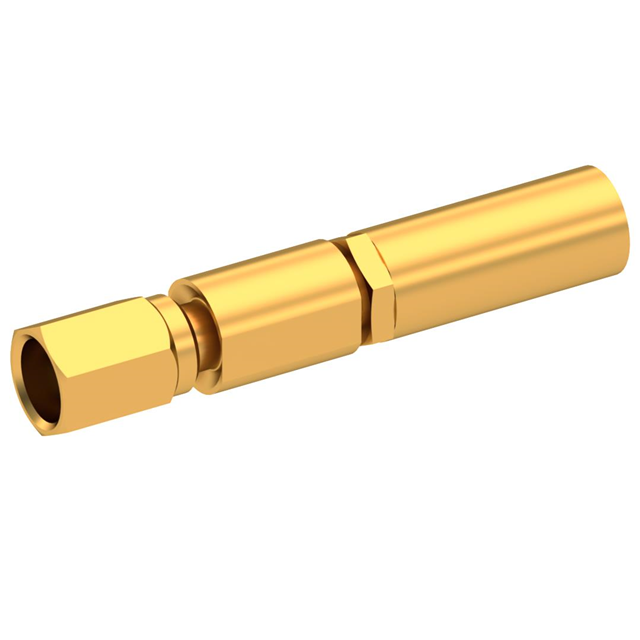

 Radiall USA, Inc. | Beryllium Copper | 250 V | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 ░C | 165 °C | 500 | SSMC | RG-174 | 316 | 12.4 GHz | 50 Ohms | Gold | 1 | Threaded | Free Hanging (In-Line) | Female Socket Plug | Crimp | Crimp | Beryllium Copper |

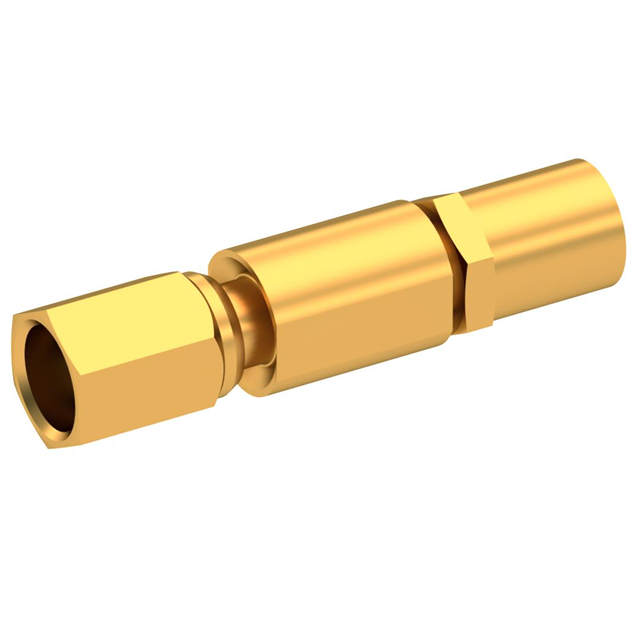

 Radiall USA, Inc. | Beryllium Copper | 250 V | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 ░C | 165 °C | 500 | SSMC | RD-316 RG-316DS | 12.4 GHz | 50 Ohms | Gold | 1 | Threaded | Free Hanging (In-Line) | Female Socket Plug | Crimp | Crimp | Beryllium Copper | |

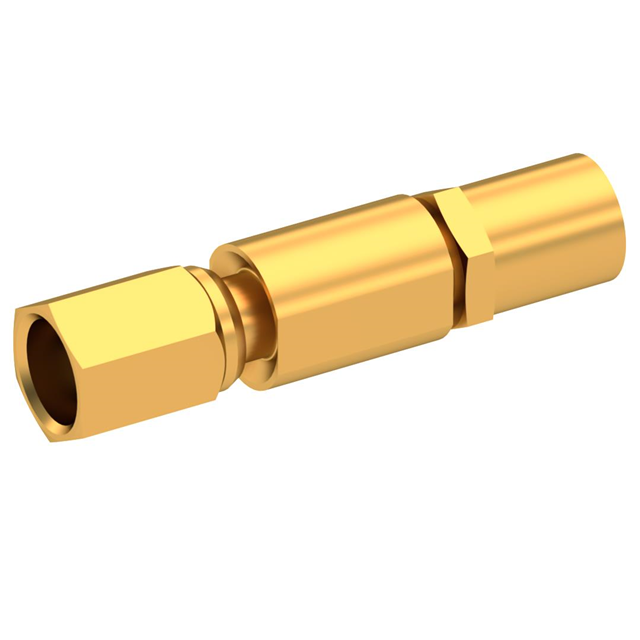

 Radiall USA, Inc. | Beryllium Copper | 250 V | Polytetrafluoroethylene (PTFE) | Gold | Gold | -65 ░C | 165 °C | 500 | SSMC | RG-178 | 196 | 12.4 GHz | 50 Ohms | Gold | 1 | Threaded | Free Hanging (In-Line) | Female Socket Plug | Crimp | Crimp | Beryllium Copper |
