1375794 Series

Catalog

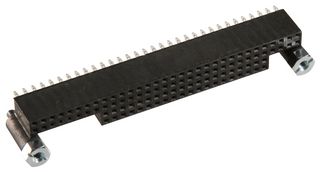

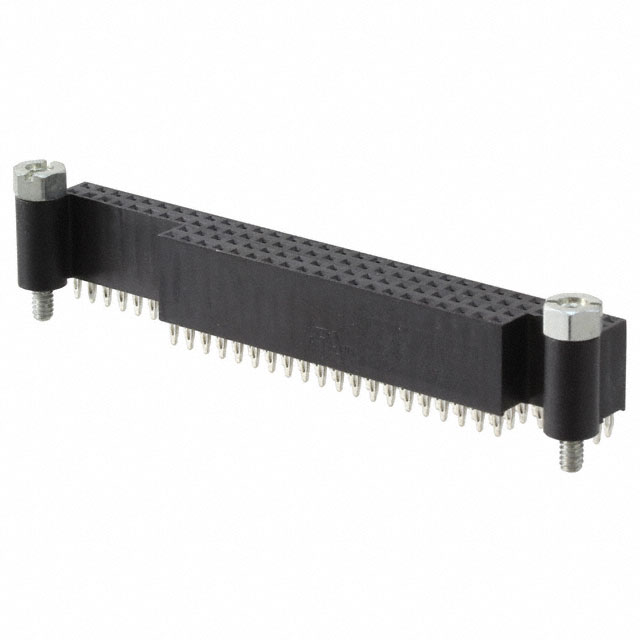

CONNECTOR, AMPMODU PC/104 SERIES, 104 CONTACTS, 2.54 MM, RECEPTACLE, PRESS FIT, 4 ROWS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Features	Pitch	Pitch	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions Loaded	Mounting Type	Termination	Number of Positions	Color	Connector Type
TE Connectivity AMP Connectors 1375794-4	-55 C	105 ░C	UL94 V-0	Screwlocks (2)	0.1 "	2.54 mm	PC/104	0.38 µm	15 µin	Gold	All	Through Hole	Press-Fit	104	Black	Non-Stackthrough Unkeyed (PC/104)
TE Connectivity AMP Connectors 1375794-2	-55 C	105 ░C	UL94 V-0	Screwlocks (2)	0.1 "	2.54 mm	PC/104	0.38 µm	15 µin	Gold	All	Through Hole	Press-Fit	104	Black	Non-Stackthrough Unkeyed (PC/104)
