745-140 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 140POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Color	Number of Rows [custom]	Number of Positions/Bay/Row [custom]	Contact Finish	Read Out	Gender	Termination	Contact Material	Contact Type
EDAC Inc. 745-140-541-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám	140	Black	2	70	Gold	Dual	Female	Press-Fit Wire Wrap	Copper Alloy	Cantilever
EDAC Inc. 745-140-522-206	Polyester Thermoplastic	2	Non Specified - Dual Edge	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám	140	Black	2	70	Gold	Dual	Female	Press-Fit	Copper Alloy	Cantilever
EDAC Inc. 745-140-525-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám	140	Black	2	70	Gold	Dual	Female	Press-Fit	Copper Alloy	Cantilever
EDAC Inc. 745-140-545-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám	140	Black	2	70	Gold	Dual	Female	Press-Fit	Copper Alloy	Cantilever
EDAC Inc. 745-140-540-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám	140	Black	2	70	Gold	Dual	Female	Press-Fit Wire Wrap	Copper Alloy	Cantilever
EDAC Inc. 745-140-540-206	Polyester Thermoplastic	2	Non Specified - Dual Edge	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám	140	Black	2	70	Gold	Dual	Female	Press-Fit Wire Wrap	Copper Alloy	Cantilever

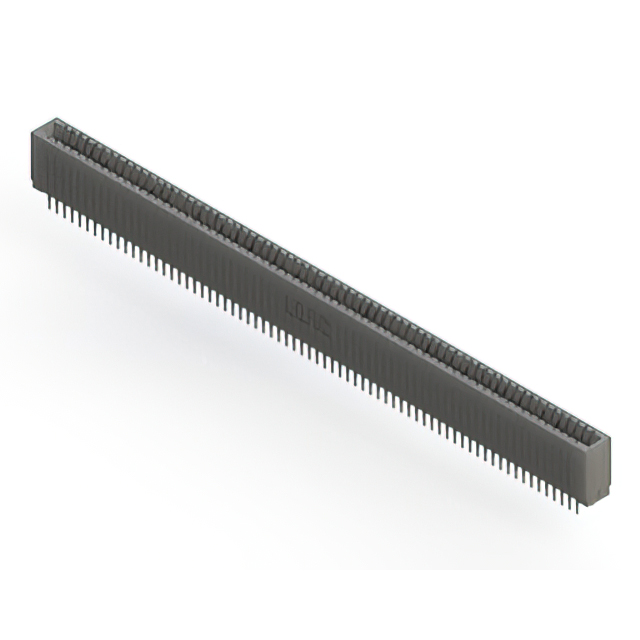

EDAC Inc. 745-140-520-201	Polyester Thermoplastic	2	Non Specified - Dual Edge	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám	140	Black	2	70	Gold	Dual	Female	Press-Fit	Copper Alloy	Cantilever
EDAC Inc. 745-140-560-206	Polyester Thermoplastic	2	Non Specified - Dual Edge	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám	140	Black	2	70	Gold	Dual	Female	Press-Fit	Copper Alloy	Cantilever Make Before Break
EDAC Inc. 745-140-545-206	Polyester Thermoplastic	2	Non Specified - Dual Edge	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	30 Áin	0.76 Ám	140	Black	2	70	Gold	Dual	Female	Press-Fit	Copper Alloy	Cantilever
