499-80 Series

Manufacturer: Preci-Dip

Catalog

CONN HEADER R/A 34POS 2.54MM

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Contact Shape	Termination	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Fastening Type	Contact Type	Number of Positions [custom]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Voltage Rating	Current Rating (Amps)	Contact Material	Mounting Type	Insulation Color	Shrouding	Insulation Material	Connector Type	Number of Positions Loaded	Number of Positions
Preci-Dip 499-80-234-10-009101	0.1 in	2.54 mm	4 mm	0.157 in	Circular	Solder	0.2 in	5.08 mm	0.126 "	3.2 mm	-55 C	125 °C	UL94 V-0	Push-Pull	Male Pin	34	Tin	0.1 "	2.54 mm	2	150 VDC	3 A	Brass	Right Angle Through Hole	Black	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All
Preci-Dip 499-80-220-10-009101	0.1 in	2.54 mm	4 mm	0.157 in	Circular	Solder	0.2 in	5.08 mm	0.126 "	3.2 mm	-55 C	125 °C	UL94 V-0	Push-Pull	Male Pin		Tin	0.1 "	2.54 mm	2	150 VDC	3 A	Brass	Right Angle Through Hole	Black	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	20
Preci-Dip 499-80-246-10-009101	0.1 in	2.54 mm	4 mm	0.157 in	Circular	Solder	0.2 in	5.08 mm	0.126 "	3.2 mm	-55 C	125 °C	UL94 V-0	Push-Pull	Male Pin		Tin	0.1 "	2.54 mm	2	150 VDC	3 A	Brass	Right Angle Through Hole	Black	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	46
Preci-Dip 499-80-272-10-009101	0.1 in	2.54 mm	4 mm	0.157 in	Circular	Solder	0.2 in	5.08 mm	0.126 "	3.2 mm	-55 C	125 °C	UL94 V-0	Push-Pull	Male Pin		Tin	0.1 "	2.54 mm	2	150 VDC	3 A	Brass	Right Angle Through Hole	Black	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	72
Preci-Dip 499-80-238-10-009101	0.1 in	2.54 mm	4 mm	0.157 in	Circular	Solder	0.2 in	5.08 mm	0.126 "	3.2 mm	-55 C	125 °C	UL94 V-0	Push-Pull	Male Pin		Tin	0.1 "	2.54 mm	2	150 VDC	3 A	Brass	Right Angle Through Hole	Black	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	38

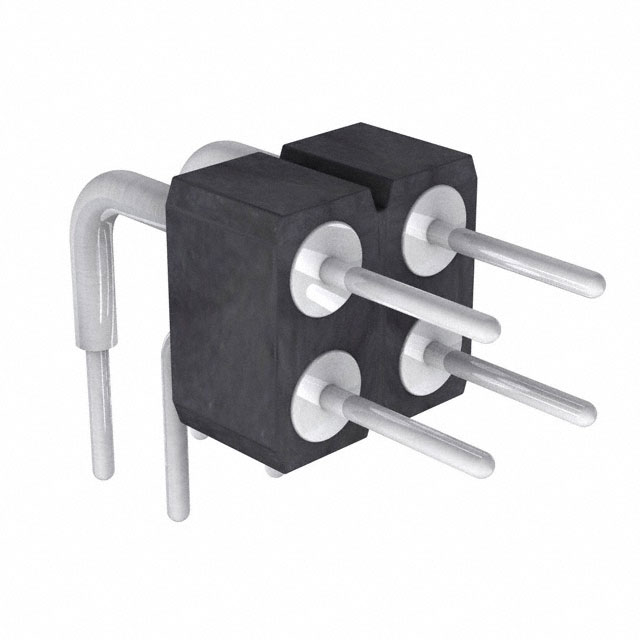

Preci-Dip 499-80-204-10-009101	0.1 in	2.54 mm	4 mm	0.157 in	Circular	Solder	0.2 in	5.08 mm	0.126 "	3.2 mm	-55 C	125 °C	UL94 V-0	Push-Pull	Male Pin		Tin	0.1 "	2.54 mm	2	150 VDC	3 A	Brass	Right Angle Through Hole	Black	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	4
Preci-Dip 499-80-262-10-009101	0.1 in	2.54 mm	4 mm	0.157 in	Circular	Solder	0.2 in	5.08 mm	0.126 "	3.2 mm	-55 C	125 °C	UL94 V-0	Push-Pull	Male Pin		Tin	0.1 "	2.54 mm	2	150 VDC	3 A	Brass	Right Angle Through Hole	Black	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	62
Preci-Dip 499-80-226-10-009101	0.1 in	2.54 mm	4 mm	0.157 in	Circular	Solder	0.2 in	5.08 mm	0.126 "	3.2 mm	-55 C	125 °C	UL94 V-0	Push-Pull	Male Pin		Tin	0.1 "	2.54 mm	2	150 VDC	3 A	Brass	Right Angle Through Hole	Black	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	26
Preci-Dip 499-80-218-10-009101	0.1 in	2.54 mm	4 mm	0.157 in	Circular	Solder	0.2 in	5.08 mm	0.126 "	3.2 mm	-55 C	125 °C	UL94 V-0	Push-Pull	Male Pin		Tin	0.1 "	2.54 mm	2	150 VDC	3 A	Brass	Right Angle Through Hole	Black	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	18
Preci-Dip 499-80-222-10-009101	0.1 in	2.54 mm	4 mm	0.157 in	Circular	Solder	0.2 in	5.08 mm	0.126 "	3.2 mm	-55 C	125 °C	UL94 V-0	Push-Pull	Male Pin		Tin	0.1 "	2.54 mm	2	150 VDC	3 A	Brass	Right Angle Through Hole	Black	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Header	All	22
