165399 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

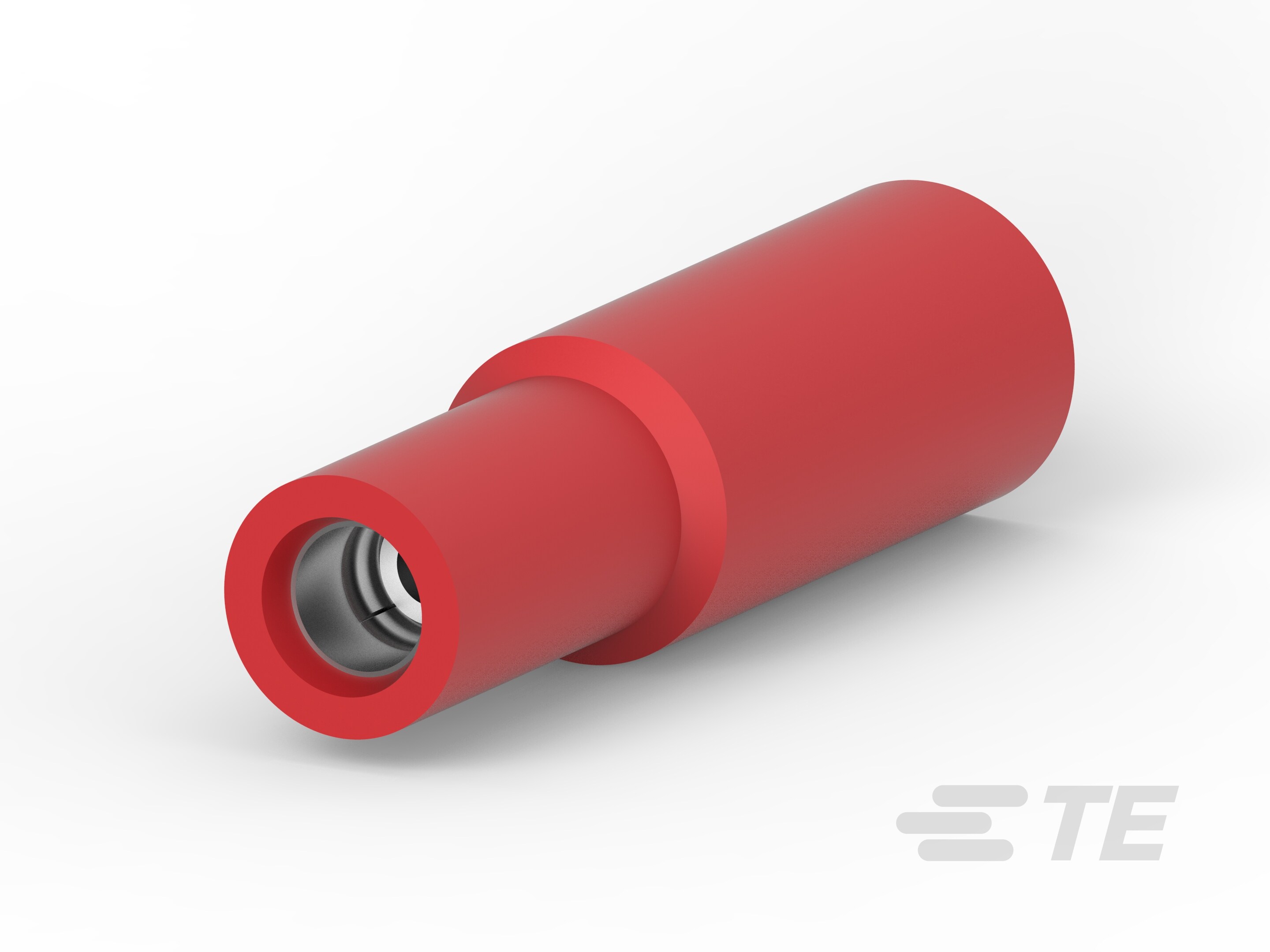

SHUR PLUG REC.ASSY.
| Part | Contact Material | Diameter - Barrel [diameter] | Diameter - Barrel [diameter] | Material - Insulation | Insulation | Length - Overall [x] | Length - Overall [x] | Terminal Type | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Wire Gauge [Min] | Wire Gauge [Max] | Color | Contact Finish | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | 0.157 " | 4 mm | Nylon Polyamide (PA) | Fully Insulated | 0.902 in | 22.91 mm | Female Receptacle (Socket) | 2.9 mm | 0.114 in | 14 AWG | 17 AWG | Red | Tin | Crimp |
