086-3 Series
Manufacturer: Mini-Circuits
Beta
⌘K
CBL ASSY 2.92MM PLUG TO PLUG 3"
| Part | Style [Max] | Style [Min] | 1st Connector Mounting Type | 2nd Connector | 1st Connector | 1st Contact Gender | Overall Impedance | Frequency - Max [Max] | 2nd Contact Gender | Color | 2nd Connector Mounting Type | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Style | 2nd Connector | 1st Connector | 1st Connector Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | 2.92 mm | 2.92 mm | Free Hanging (In-Line) | 2.92 mm | 2.92 mm | Male | 50 Ohms | 40 GHz | Male | Blue | Free Hanging (In-Line) | 3 in | 76.2 mm | -55 C | 85 °C | Hand Formable .086 | ||||

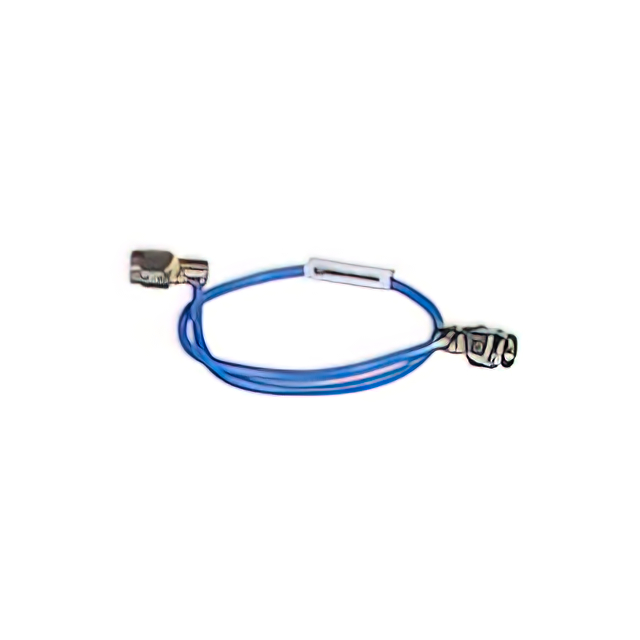

 Mini-Circuits | Free Hanging (In-Line) | Male | 50 Ohms | 18 GHz | Male | Blue | Free Hanging (In-Line) | 3 in | 76.2 mm | -55 C | 105 ░C | Hand Formable .086 | SMA to SMA | SMA Plug Right Angle | SMA Plug Right Angle | |||||

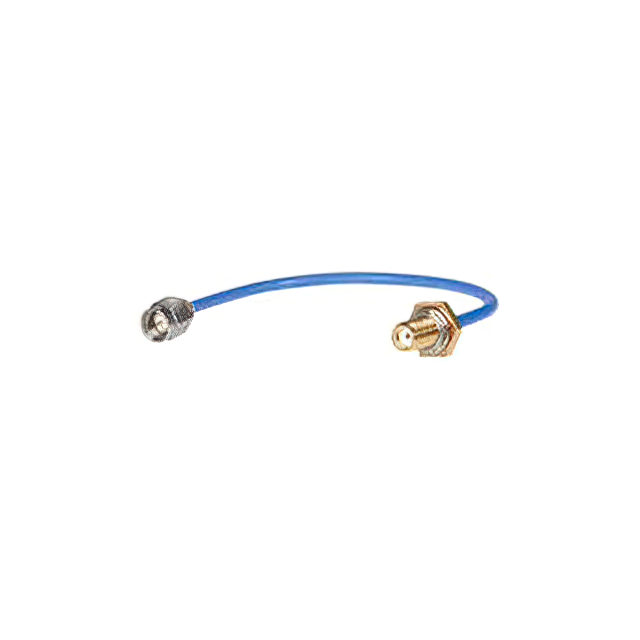

 Mini-Circuits | Panel Mount | Female | 50 Ohms | 18 GHz | Male | Blue | Free Hanging (In-Line) | 3 in | 76.2 mm | -55 C | 105 ░C | Hand Formable .086 | SMA to SMA | SMA Plug | SMA Jack | Bulkhead - Front Side Nut |
