1423154 Series

Catalog

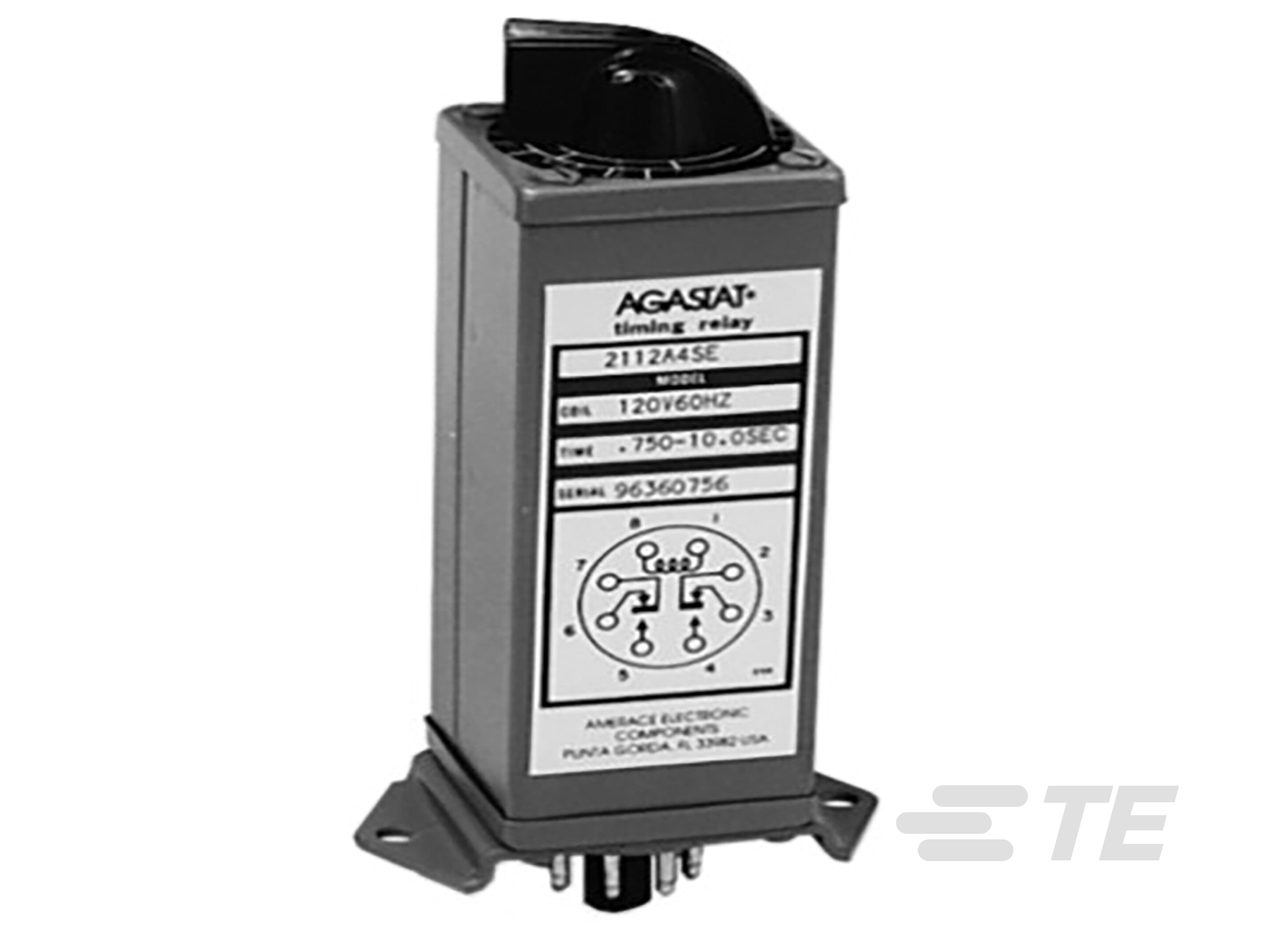

RELAY TIME DELAY COMMERCIAL 2100

Part	Mounting Type	Timing Initiate Method	Termination Style	Timing Adjustment Method	Relay Type	Function	Contact Rating @ Voltage	Delay Time [Min]	Delay Time [Max]	Circuit	Voltage - Supply
TE Connectivity AMP Connectors 2-1423154-7	Chassis Mount	Input Voltage	Plug In	Screwdriver Slot	Mechanical Relay	Off-Delay	10 A 30 VDC 120 VAC	5 Sec	120 Sec	DPDT (2 Form C)	28 V
TE Connectivity AMP Connectors 2-1423154-1	Chassis Mount	Input Voltage	Plug In	Hand Dial	Mechanical Relay	Off-Delay	10 A 30 VDC 120 VAC	1 Sec	30 Sec	DPDT (2 Form C)	110 V
TE Connectivity AMP Connectors 1423154-7
TE Connectivity AMP Connectors 1-1423154-8
TE Connectivity AMP Connectors 1423154-9
TE Connectivity AMP Connectors 1423154-8						Off-Delay	10 A 30 VDC 120 VAC			DPDT (2 Form C)
TE Connectivity AMP Connectors 4-1423154-0
TE Connectivity AMP Connectors 4-1423154-1
TE Connectivity AMP Connectors 1-1423154-1	Panel Mount	Input Voltage	Solder Hook	Screwdriver Slot	Mechanical Relay	Off-Delay	10 A 30 VDC 120 VAC	0.1 Sec	0.3 s	DPDT (2 Form C)	125 V
TE Connectivity AMP Connectors 2-1423154-8	Chassis Mount	Input Voltage	Plug In	Hand Dial	Mechanical Relay	Off-Delay	10 A 30 VDC 120 VAC	0.75 Sec	10 s	DPDT (2 Form C)	28 V
