R11467 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

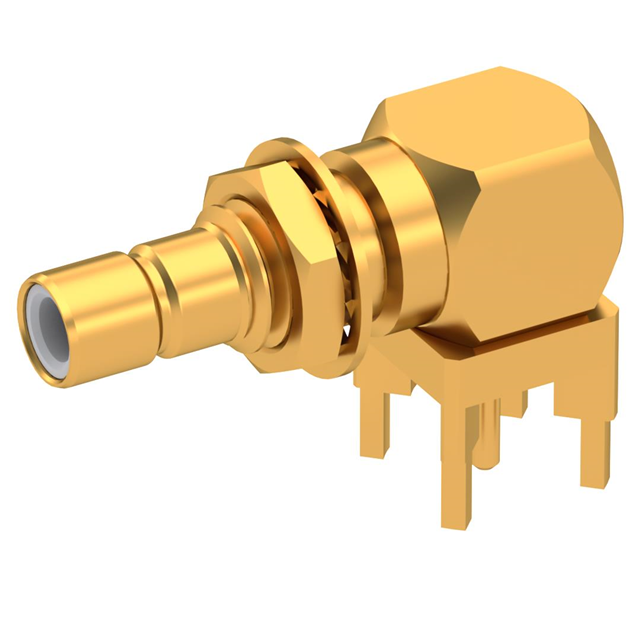

SMB / RIGHT ANGLE BULKHEAD MALE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Dielectric Material | Center Contact Plating | Body Finish | Voltage Rating | Center Contact Material | Contact Termination | Mounting Feature | Connector Style | Connector Type | Shield Termination | Frequency - Max [Max] | Mounting Type | Number of Ports | Fastening Type | Housing Color | Impedance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Brass | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 V | Brass | Solder | Bulkhead - Front Side Nut | SMB | Receptacle Male Pin | Solder | 4 GHz | Panel Mount Right Angle Through Hole | 1 | Snap-On | Gold | 50 Ohms | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Brass | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 V | Brass | Solder | Bulkhead - Front Side Nut | SMB | Receptacle Male Pin | Solder | 4 GHz | Panel Mount Right Angle Through Hole | 1 | Snap-On | Gold | 50 Ohms | |

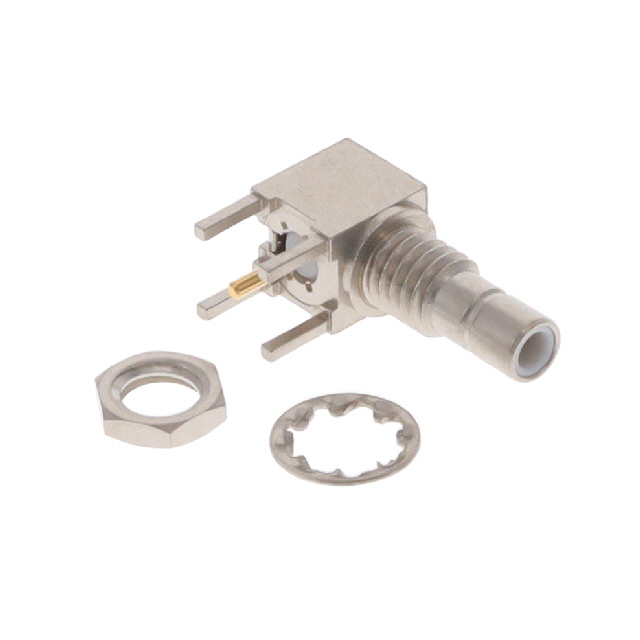

 Radiall USA, Inc. | -65 ░C | 165 °C | Brass | 500 | Polytetrafluoroethylene (PTFE) | Gold | Nickel | 335 V | Beryllium Copper | Solder | Bulkhead - Front Side Nut | SMB | Receptacle Male Pin | Solder | 4 GHz | Panel Mount Right Angle Through Hole | 1 | Snap-On | Silver | 50 Ohms | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Brass | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 V | Brass | Solder Cup | Bulkhead - Rear Side Nut | SMB | Jack Male Pin | Solder | 4 GHz | Panel Mount Right Angle | 1 | Snap-On | Gold | 50 Ohms | Extended Insulation |
Radiall USA, Inc. | -65 ░C | 165 °C | Brass | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 V | Brass | Solder Cup | Bulkhead - Rear Side Nut | SMB | Jack Male Pin | Solder | 4 GHz | Panel Mount Right Angle | 1 | Snap-On | Gold | 50 Ohms | Extended Insulation |
