214113 Series
EXTreme Guardian Right-Angle Plug Assembly with Guide Pins, 2 Power Circuits
Manufacturer: Molex
Catalog
EXTreme Guardian Right-Angle Plug Assembly with Guide Pins, 2 Power Circuits
Beta
⌘K
EXTreme Guardian Right-Angle Plug Assembly with Guide Pins, 2 Power Circuits
EXTreme Guardian Right-Angle Plug Assembly with Guide Pins, 2 Power Circuits
EXTreme Guardian Right-Angle Plug Assembly with Guide Pins, 2 Power Circuits
| Part | Material - Insulation | Mounting Type | Termination | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Fastening Type | Voltage Rating | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Finish | Connector Type | Number of Positions | Current Rating (Amps) | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

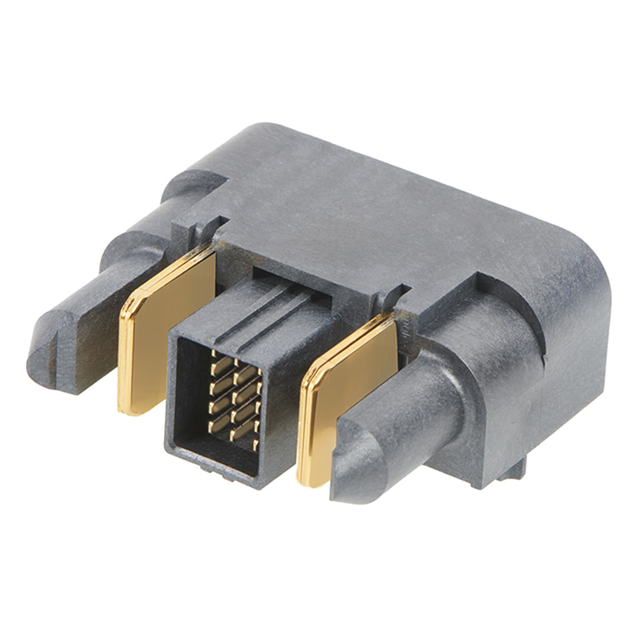

 Molex | Liquid Crystal Polymer (LCP) | Through Hole Right Angle | Solder | Copper Alloy | -40 °C | 105 ░C | Board Guide Mating Guide | Push-Pull | 125 VDC | Black | 0.76 Ám | 30 Áin | 5 | Gold | Plug Male Blades | 38 | 80 A | ||

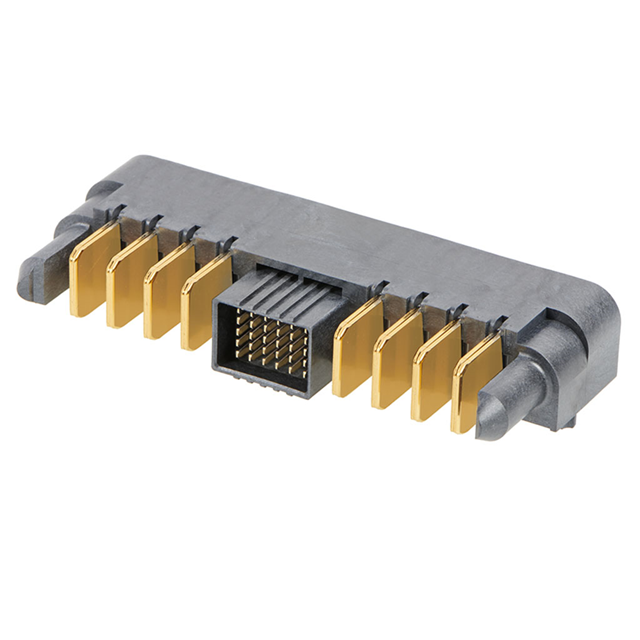

 Molex | Liquid Crystal Polymer (LCP) | Through Hole Right Angle | Solder | Copper Alloy | -40 °C | 105 ░C | Board Guide Mating Guide | Push-Pull | 125 VDC | Black | 0.76 Ám | 30 Áin | 5 | Gold | Plug Male Blades | 80 A | 0.079 in | 2 mm |
