D2922 Series
Manufacturer: Harwin Inc.
Beta
⌘K

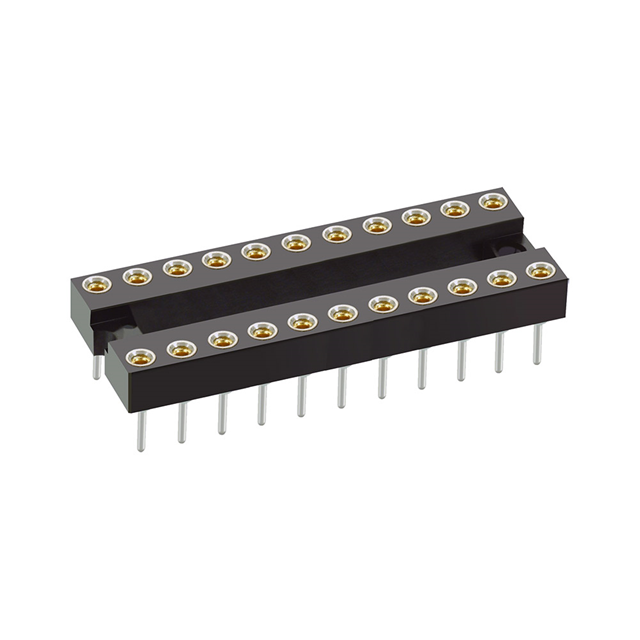

11+11 POS. FEMALE DIL VERTICAL THROUGHBOARD IC SOCKET ROHS COMPLIANT: YES
| Part | Current Rating (Amps) | Contact Resistance | Termination Post Length [x] | Termination Post Length [x] | Material Flammability Rating | Type | Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Features | Contact Material - Mating | Contact Finish - Post | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Termination | Contact Finish Thickness - Mating | Mounting Type | Contact Material - Post [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 1 A | 10 mOhm | 3.2 mm | 0.126 in | UL94 V-0 | 0.4 in | DIP | 0.1 " | 2.54 mm | 5 µm | 196.9 µin | Open Frame | Beryllium Copper | Tin | 0.1 in | 2.54 mm | 11 | 22 | 2 | Solder | Flash | Through Hole | Brass | -55 C | 125 °C | Gold | Plastic |
