9030-1023 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

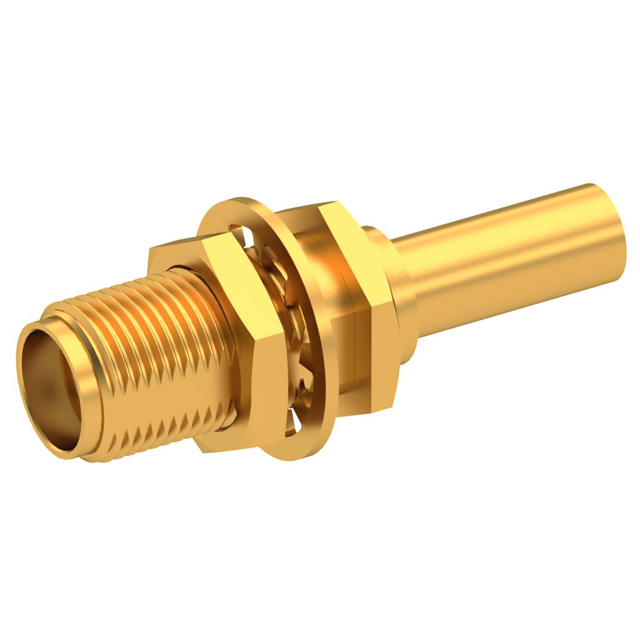

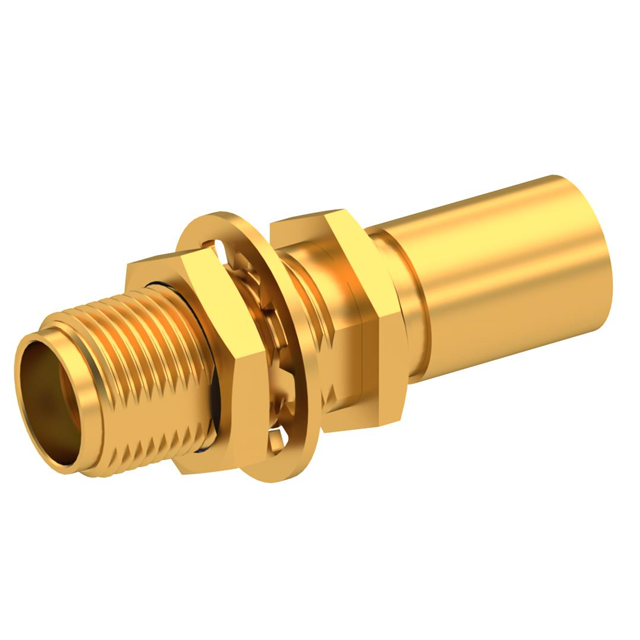

SMA / STRAIGHT JACK FEMALE CRIMP
| Part | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Material | Body Finish | Mating Cycles | Housing Color | Fastening Type | Frequency - Max [Max] | Mounting Type | Number of Ports | Mounting Feature | Contact Termination | Cable Group | Connector Style | Connector Type | Shield Termination | Center Contact Material | Impedance | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 250 V | Stainless Steel | Gold | 500 | Gold | Threaded | 12.4 GHz | Panel Mount | 1 | Bulkhead - Front Side Nut | Crimp | RG-316 Double Braid | SMA | Female Socket Jack | Crimp | Beryllium Copper | 50 Ohms | ||
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 250 V | Stainless Steel | Gold | 500 | Gold | Threaded | 18 GHz | Panel Mount | 1 | Bulkhead - Front Side Nut | Crimp | RG-174 RG-179 RG-316 | SMA | Female Socket Jack | Crimp | Beryllium Copper | 50 Ohms | 1 Connector 1 Lockwasher 1 Nut | |
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Stainless Steel | Gold | 500 | Gold | Threaded | 18 GHz | Panel Mount | 1 | Bulkhead - Front Side Nut | Crimp | RG-58 | SMA | Female Socket Jack | Crimp | Beryllium Copper | 50 Ohms | 141 |
