PJRAN2 Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

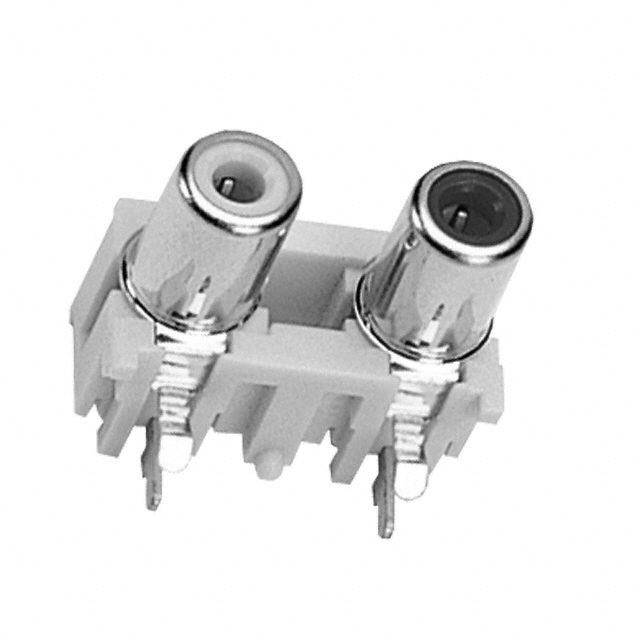

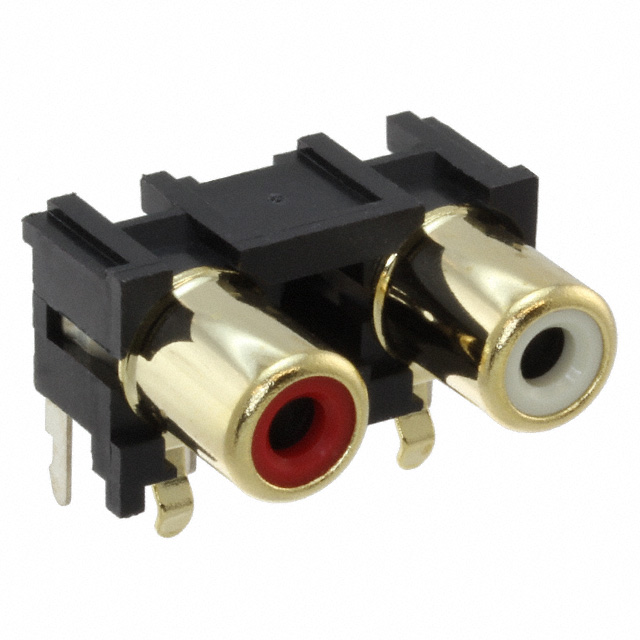

CONN RCA JACK MONO 3.2MM R/A
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating [custom] | Connector Type | Body Color | Body Material | Insulation Color | Contact Material | Shielding | Internal Switch(s) | Gender | Signal Lines | Termination | Industry Recognized Mating Diameter [diameter] | Number of Positions/Contacts | Housing Material | Current Rating (Amps) | Mounting Type | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | -25 °C | 85 °C | Gold | Phono (RCA) Jack | Gold Red | Copper Alloy | Red White | Copper Alloy | Unshielded | Single Switch | Female | Mono | Solder | 3.2 mm 9 mm | 2 Sets of 2 Conductors 6 Contacts | Acrylonitrile Butadiene Styrene (ABS) | 2 A | Through Hole Right Angle | |
 Switchcraft Inc. | -25 °C | 85 °C | Phono (RCA) Jack | Silver White | Copper Alloy | Red White | Copper Alloy | Unshielded | Single Switch | Female | Mono | Solder | 3.2 mm 9 mm | 2 Sets of 2 Conductors 6 Contacts | Acrylonitrile Butadiene Styrene (ABS) | 2 A | Through Hole Right Angle | Tin |
