2563110 Series
Manufacturer: NorComp Inc.
Beta
⌘K

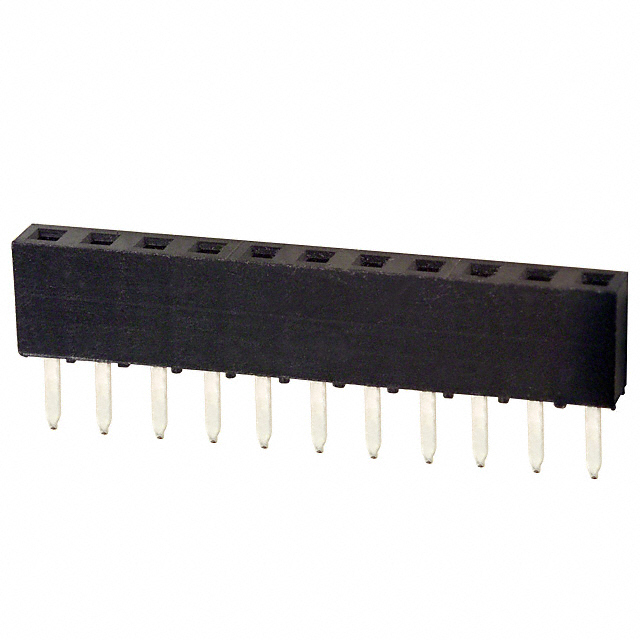

25631101RP2 ROHS COMPLIANT: YES
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Mounting Type | Contact Type | Termination | Connector Type | Number of Rows | Fastening Type | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Number of Positions | Contact Finish - Mating | Material Flammability Rating | Insulation Color | Insulation Height | Insulation Height | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 2.54 µm | 100 µin | Phosphor Bronze | Square | -40 C | 105 ░C | Tin | Through Hole | Female Socket | Solder | Receptacle | 1 | Push-Pull | 2.5 mm | 0.098 in | 0.079 " | 2 mm | Flash | 11 | Gold | UL94 V-0 | Black | 4.3 mm | 0.169 " | All |
