325-061 Series
Manufacturer: EDAC Inc.
Beta
⌘K

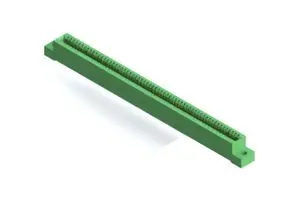

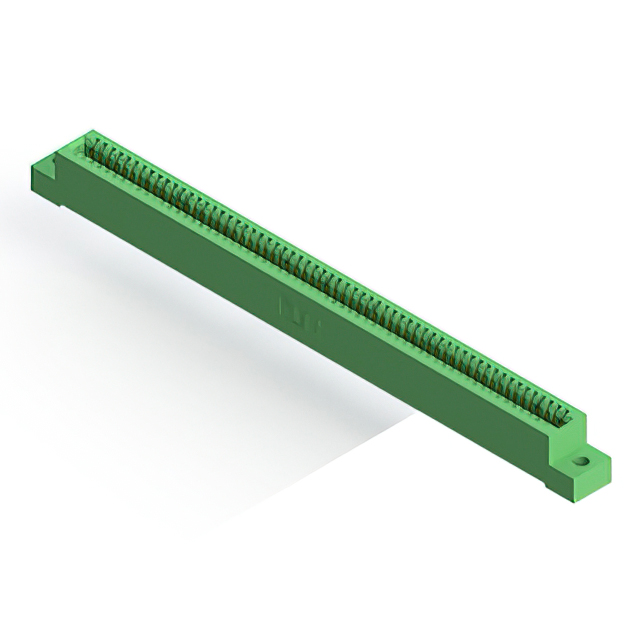

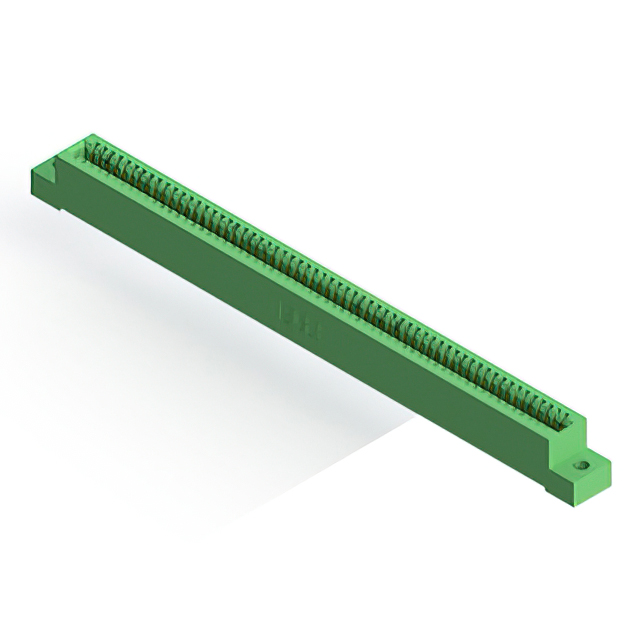

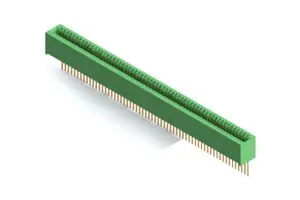

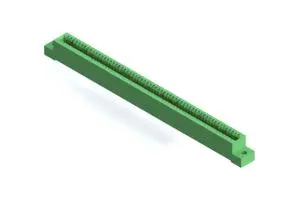

CONN EDGE SINGLE FML 61POS 0.100
| Part | Material - Insulation | Termination Rows | Termination | Card Type | Pitch | Pitch | Number of Positions/Bay/Row | Gender | Contact Finish | Contact Material | Read Out | Card Thickness | Card Thickness | Flange Feature | Number of Rows | Number of Positions | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Color | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | Non Specified - Single Edge | 0.1 " | 2.54 mm | 61 | Female | Gold | Copper Alloy | Single | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 61 | Cantilever | -65 ░C | 125 °C | Through Hole | Green | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | Non Specified - Single Edge | 0.1 " | 2.54 mm | 61 | Female | Gold | Copper Alloy | Single | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 1 | 61 | Cantilever | -65 ░C | 125 °C | Through Hole | Green | 0.25 Ám | 10 Áin | 0.16 " | 4.06 mm |
EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | Non Specified - Single Edge | 0.1 " | 2.54 mm | 61 | Female | Gold | Copper Alloy | Single | 3.18 mm | 0.125 in | 1 | 61 | Cantilever | -65 ░C | 125 °C | Through Hole | Green | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Wire Wrap | Non Specified - Single Edge | 0.1 " | 2.54 mm | 61 | Female | Gold | Copper Alloy | Single | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 1 | 61 | Cantilever | -65 ░C | 125 °C | Through Hole | Green | 0.25 Ám | 10 Áin | 0.16 " | 4.06 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder Eyelet(s) | Non Specified - Single Edge | 0.1 " | 2.54 mm | 61 | Female | Gold | Copper Alloy | Single | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 61 | Cantilever | -65 ░C | 125 °C | Through Hole | Green | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Wire Wrap | Non Specified - Single Edge | 0.1 " | 2.54 mm | 61 | Female | Gold | Copper Alloy | Single | 3.18 mm | 0.125 in | 1 | 61 | Cantilever | -65 ░C | 125 °C | Through Hole | Green | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder Eyelet(s) | Non Specified - Single Edge | 0.1 " | 2.54 mm | 61 | Female | Gold | Copper Alloy | Single | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 1 | 61 | Cantilever | -65 ░C | 125 °C | Through Hole | Green | 0.25 Ám | 10 Áin | 0.16 " | 4.06 mm |
