PSM10A Series

Wall Mount AC Adapters 10W 5V 2A Level VI Wall Mount USA

Manufacturer: Phihong USA

Catalog

Wall Mount AC Adapters 10W 5V 2A Level VI Wall Mount USA

Catalog

Wall Mount AC Adapters 10W 5V 2A Level VI Wall Mount USA

Part	Cord Length	Cord Length	Voltage - Output	Region Utilized	Input Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector	Output Connector [diameter]	Output Connector [x]	Polarization	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output (Max) [Max]	Input Connector	Form	Power (Watts)

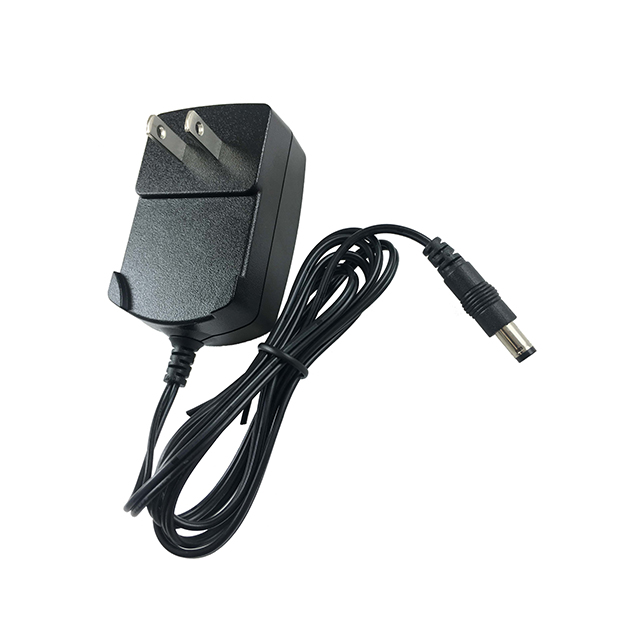

Phihong USA PSM10A-050A	1.2 m	47.2 in	5 V	North America	Fixed Blade	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in	cULus	264 VAC	90 VAC	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Positive Center	Level VI	40 °C	0 °C	ITE (Commercial)	2 A	NEMA 1-15P	Wall Mount	10 W
Phihong USA PSM10A-050A-R	1.2 m	47.2 in	5 V	North America	Fixed Blade	45 mm	71.7 mm	1.77 in	2.82 in	33 mm	1.3 in	cULus	264 VAC	90 VAC	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	Positive Center	Level VI	40 °C	0 °C	ITE (Commercial)	2 A	NEMA 1-15P	Wall Mount	10 W
