ERZ-V07 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

VARISTOR 240V 1.75KA DISC 8.5MM

Part	Mounting Type	Varistor Voltage (Max) [Max]	Package / Case	Maximum DC Volts [Max]	Capacitance @ Frequency	Varistor Voltage (Min) [Min]	Varistor Voltage (Typ)	Current - Surge	Energy	Number of Circuits	Maximum AC Volts [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [diameter]
Panasonic Industrial Automation Sales ERZ-V07D241	Through Hole	264 V	Disc 8.5mm	200 V	170 pF	216 V	240 V	1.75 kA	21 J	1	150 V	85 °C	-40 °C
Panasonic Industrial Automation Sales ERZ-V07D151	Through Hole	165 V	Disc 8.5mm	125 V	500 pF	135 V	150 V	1.75 kA	13 J	1	95 V	85 °C	-40 °C
Panasonic Industrial Automation Sales ERZ-V07V270CS	Through Hole	30 V	Disc	22 V	3400 pF		27 V	500 A	1.6 J	1	17 V	85 °C	-40 °C	7 mm
Panasonic Industrial Automation Sales ERZ-V07D221	Through Hole	242 V	Disc 8.5mm	180 V	190 pF	198 V	220 V	1.75 kA	19 J	1	140 V	85 °C	-40 °C
Panasonic Industrial Automation Sales ERZ-V07V330CS	Through Hole	36 V	Disc	26 V		30 V	33 V	500 A	2 J	1	20 V	85 °C	-40 °C	7 mm
Panasonic Industrial Automation Sales ERZ-V07D680	Through Hole	75 V	Disc 8.5mm	56 V	1200 pF	61 V		500 A	4.1 J	1	40 V	85 °C	-40 °C
Panasonic Industrial Automation Sales ERZ-V07D201	Through Hole	225 V	Disc 8.5mm	170 V	200 pF	185 V	200 V	1.75 kA	17.5 J	1	130 V	85 °C	-40 °C
Panasonic Industrial Automation Sales ERZ-V07D220CS	Through Hole	24 V	Disc	18 V	3600 pF	20 V	22 V	500 A	1.3 J	1	14 V	85 °C	-40 °C	7 mm

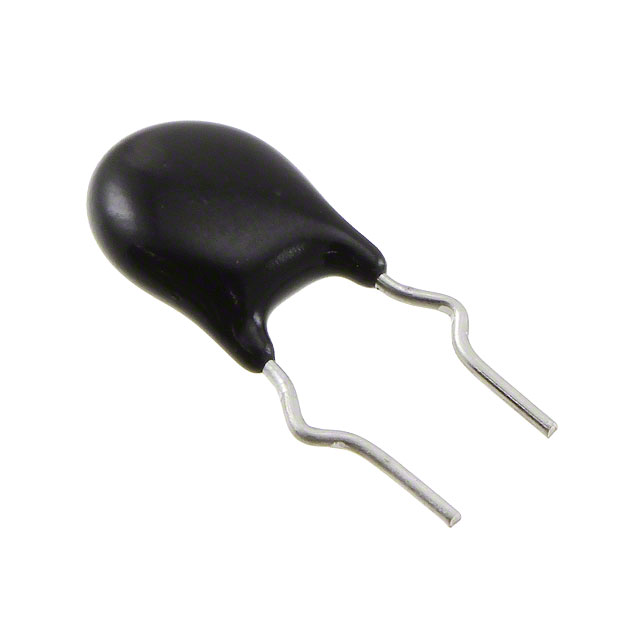

Panasonic Industrial Automation Sales ERZ-V07V221CS	Through Hole	242 V	Disc 8.5mm	180 V	190 pF	198 V	220 V	1.75 kA	19 J	1	140 V	85 °C	-40 °C
Panasonic Industrial Automation Sales ERZ-V07D180	Through Hole	20 V	Disc 8.5mm	14 V	3800 pF	16 V	18 V	500 A	1.1 J	1	11 V	85 °C	-40 °C
