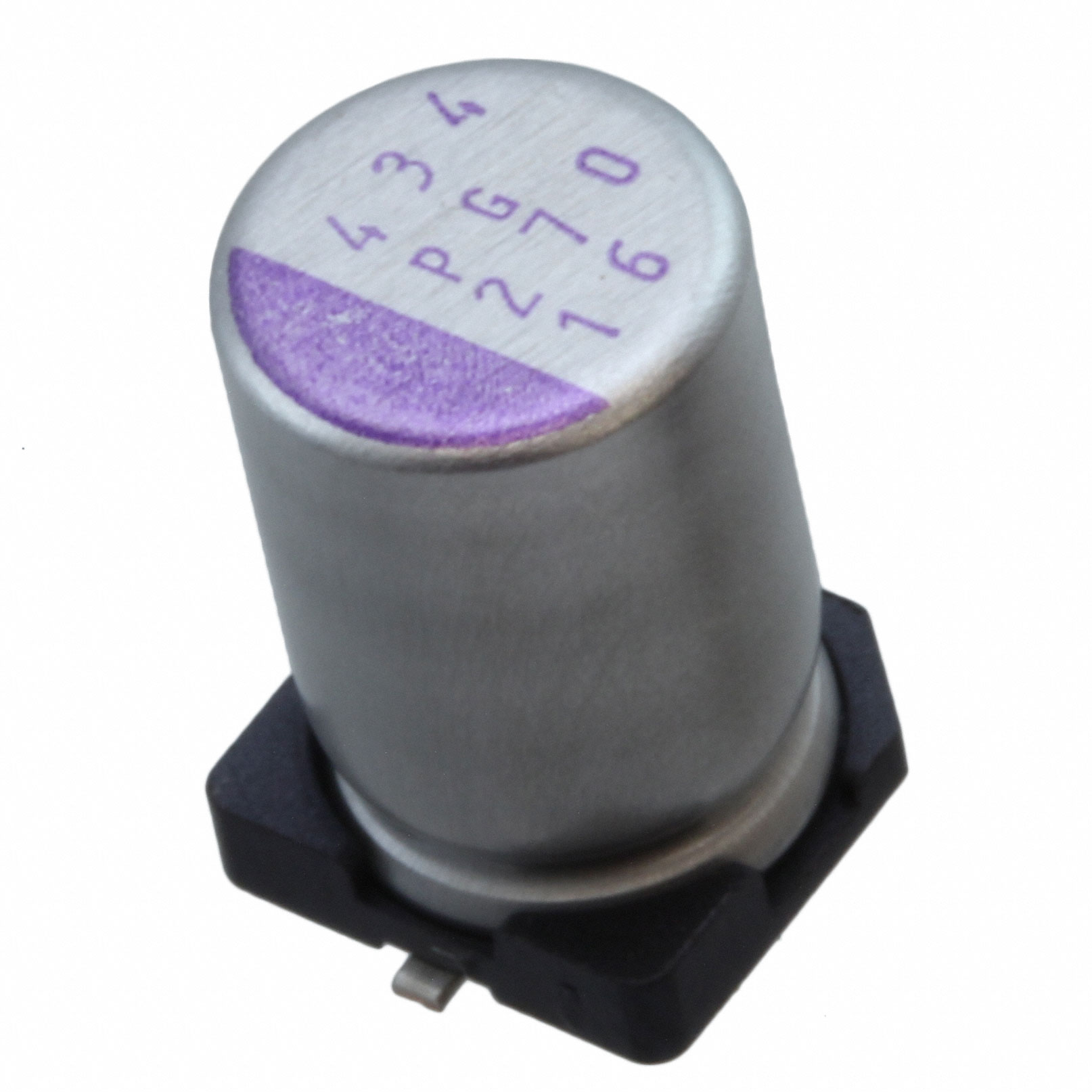

16SVPG Series

Catalog

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 270 ΜF, 16 V, RADIAL CAN - SMD, 0.01 OHM

Part	Voltage - Rated	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Lifetime @ Temp.	Capacitance	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	ESR (Equivalent Series Resistance)	Tolerance	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components 16SVPG270MX	16 V	0.26 in	6.6 mm	6.6 mm	0.26 in	5000 Hrs	270 µF	5.08 A	254 mA	Polymer	8 mm	0.315 in	Radial Can - SMD	10 mOhm	20 %	General Purpose	Surface Mount	-55 C	105 ░C	0.248 "	6.3 mm
Panasonic Electronic Components 16SVPG47M	16 V		0.209 in 5.3 mm	0.209 in 5.3 mm		5000 Hrs	47 µF	3.2 A	160 mA	Polymer			Radial Can - SMD	25 mOhm	20 %	General Purpose	Surface Mount	-55 C	105 ░C	0.197 in	5 mm	4.5 mm	0.177 in
Panasonic Electronic Components 16SVPG270M	16 V	0.26 in	6.6 mm	6.6 mm	0.26 in	5000 Hrs	270 µF	5.8 A	290 mA	Polymer	10 mm	0.394 in	Radial Can - SMD	8 mOhms	20 %	General Purpose	Surface Mount	-55 C	105 ░C	0.248 "	6.3 mm
