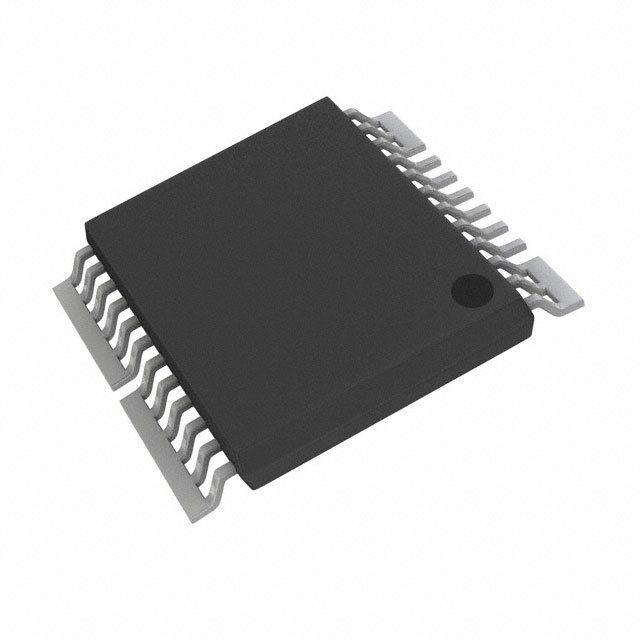

CQ320 Series

Catalog

CORELESS CURENT SENSOR / 20A W/S

Part	Polarization	Accuracy	Sensitivity	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	For Measuring	Package / Case	Package / Case	Package / Case	Sensor Type	Output	Voltage - Supply	Number of Channels	Current - Supply (Max) [Max]	Current - Sensing	Response Time
Asahi Kasei Microdevices Corporation CQ320B	Bidirectional	1.3 %	120 mV/A	90 °C	-40 °C	Surface Mount	24-VSOP	AC/DC	24-LSSOP	0.22 in 10 Leads	5.6 mm	Hall Effect Open Loop	Ratiometric Voltage	3.3 V	1	6.2 mA	20.9 A	0.5 µs
Asahi Kasei Microdevices Corporation CQ320A	Bidirectional	1.3 %	45 mV/A	90 °C	-40 °C	Surface Mount	24-VSOP	AC/DC	24-LSSOP	0.22 in 10 Leads	5.6 mm	Hall Effect Open Loop	Ratiometric Voltage	3.3 V	1	6.2 mA	29.3 A	0.5 µs
