XZFMYK10 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7-SEG 0.4" SGL YLW 10SMD
| Part | Color | Display Type | Voltage - Forward (Vf) (Typ) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Common Pin | Number of Characters | Millicandela Rating | Power Dissipation (Max) [Max] | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Wavelength - Peak | Current - Test | Number of Characters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

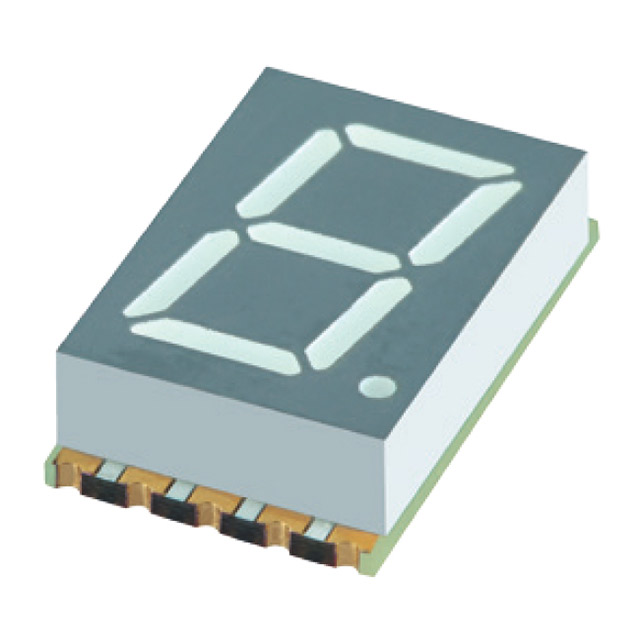

 SunLED | Yellow | 7-Segment | 1.95 V | 0.358 in | 0.148 in | 0.512 " | 3.75 mm | 9.1 mm | 13 mm | Common Cathode | 1 | 14 mcd | 75 mw | 10-SMD No Lead | 10.16 mm | 0.4 in | 590 nm | 10 mA | |

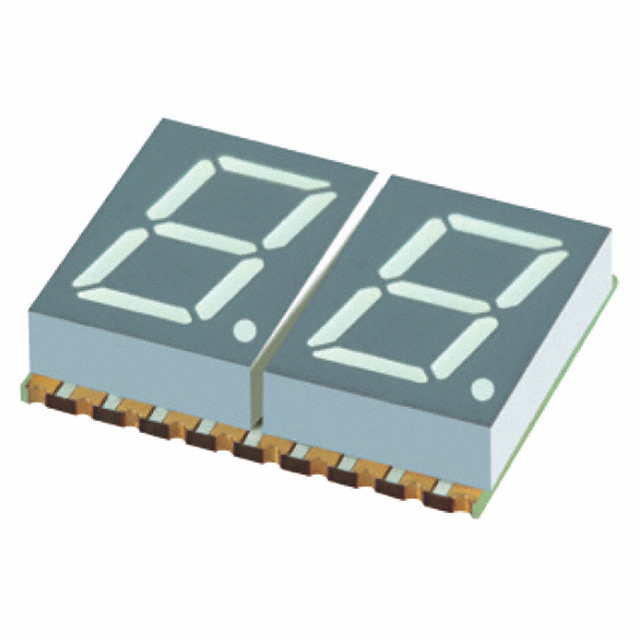

 SunLED | Yellow | 7-Segment | 1.95 V | 0.728 in | 0.512 in | 0.148 in | 13 mm | 18.5 mm | 3.75 mm | Common Cathode | 14 mcd | 75 mw | 20-SMD No Lead | 10.16 mm | 0.4 in | 590 nm | 10 mA | 2 |
