85876 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

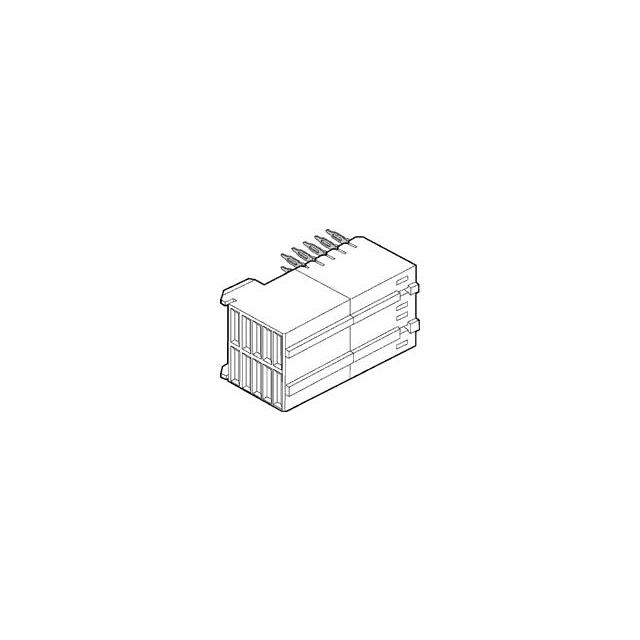

CONN RCPT BLADE PWR 10P EDGE MNT
| Part | Contact Finish | Termination | Number of Positions Loaded | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Connector Style | Number of Rows | Voltage Rating | Features | Color | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Current Rating (Amps) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Gold or Gold GXT™ | Solder | All | 10 | 105 ░C | -55 °C | Board Edge Right Angle Through Hole | Blade Power | 5 | 1000 VDC | Board Guide Spacer | Natural | 0.76 Ám | 30 Áin | UL94 V-0 | 3 A | Receptacle Female Blade Sockets |
Amphenol ICC (FCI) | Gold or Gold GXT™ | Solder | All | 10 | 105 ░C | -55 °C | Board Edge Right Angle Through Hole | Blade Power | 5 | 1000 VDC | Board Guide Spacer | Natural | 0.76 Ám | 30 Áin | UL94 V-0 | 3 A | Receptacle Female Blade Sockets |
Amphenol ICC (FCI) | Solder | All | 10 | 105 ░C | -55 °C | Board Edge Right Angle Through Hole | Blade Power | 5 | 1000 VDC | Board Guide | Natural | UL94 V-0 | 3 A | Receptacle Female Blade Sockets | |||
 Amphenol ICC (FCI) | Gold or Gold GXT™ | Solder | All | 10 | 105 ░C | -55 °C | Board Edge Right Angle Through Hole | Blade Power | 5 | 1000 VDC | Board Guide Spacer | Natural | 0.76 Ám | 30 Áin | UL94 V-0 | 3 A | Receptacle Female Blade Sockets |
Amphenol ICC (FCI) | Gold or Gold GXT™ | Solder | All | 10 | 105 ░C | -55 °C | Board Edge Right Angle Through Hole | Blade Power | 5 | 1000 VDC | Board Guide Spacer | Natural | UL94 V-0 | 3 A | Receptacle Female Blade Sockets |
