PBC24 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 48POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Contact Finish - Post	Contact Finish - Mating	Insulation Material	Overall Contact Length	Overall Contact Length	Contact Type	Contact Material	Current Rating (Amps)	Connector Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Length - Post [custom]	Contact Length - Post [custom]	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Mounting Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Color	Number of Positions	Contact Shape	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Rows	Insulation Height [z]	Insulation Height [z]	Overall Contact Length

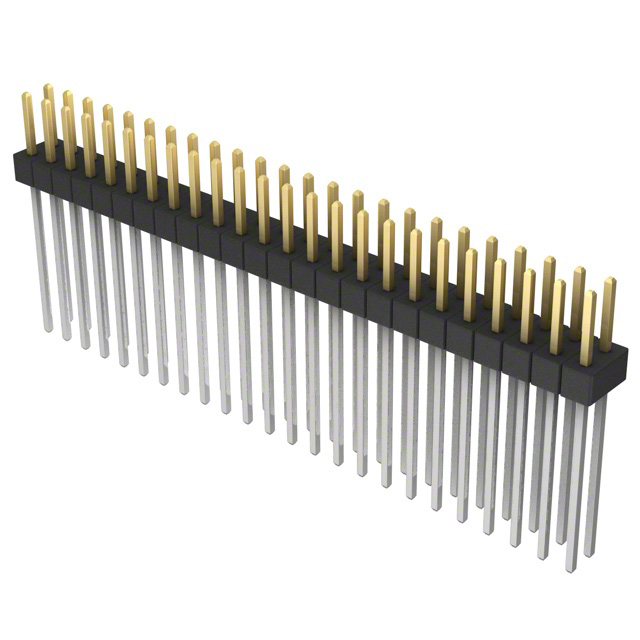

Sullins Connector Solutions PBC24DAFN	2.54 µm	100 µin	Board to Board Cable	Tin	Gold	Polybutylene Terephthalate (PBT)	0.95 in	24.13 mm	Male Pin	Phosphor Bronze	3 A	Header Breakaway	0.1 "	2.54 mm	0.1 in	2.54 mm	Push-Pull	15.75 mm	0.62 "	2	0.23 in	5.84 mm	Through Hole	Unshrouded	0.25 µm	10 µin	UL94 V-0	Black	48	Square	Solder	-65 ░C	125 °C	All	0.1 in	2.54 mm

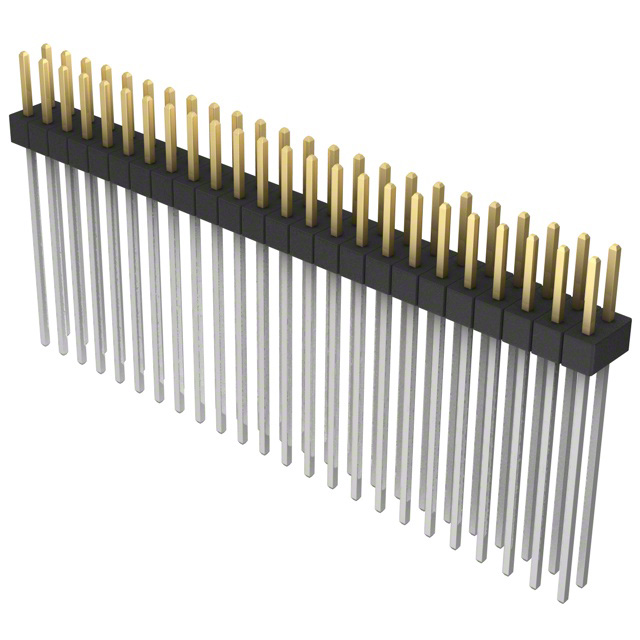

Sullins Connector Solutions PBC24DAHN	2.54 µm	100 µin	Board to Board Cable	Tin	Gold	Polybutylene Terephthalate (PBT)	1.15 in	29.21 mm	Male Pin	Phosphor Bronze	3 A	Header Breakaway	0.1 "	2.54 mm	0.1 in	2.54 mm	Push-Pull			2	0.23 in	5.84 mm	Through Hole	Unshrouded	0.25 µm	10 µin	UL94 V-0	Black	48	Square	Solder	-65 ░C	125 °C	All	0.1 in	2.54 mm	0.82 in	20.83 mm

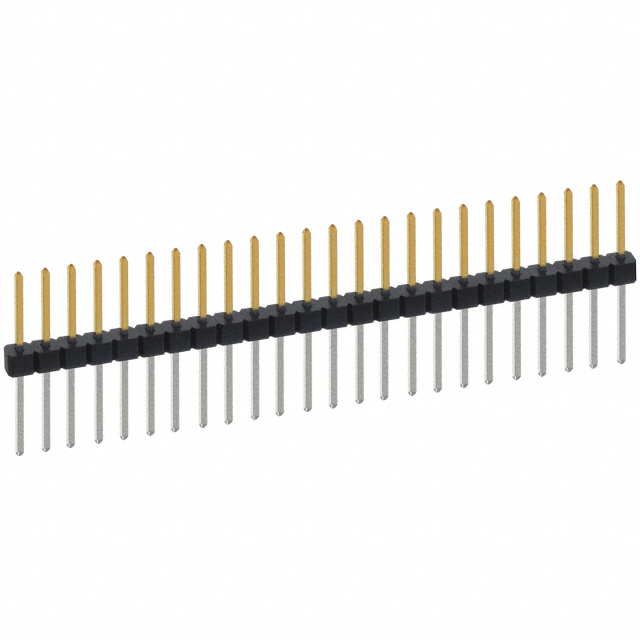

Sullins Connector Solutions PBC24SAGN	2.54 µm	100 µin	Board to Board Cable	Tin	Gold	Polybutylene Terephthalate (PBT)	1.05 in	26.67 mm	Male Pin	Phosphor Bronze	3 A	Header Breakaway	0.1 "	2.54 mm			Push-Pull				0.23 in	5.84 mm	Through Hole	Unshrouded	0.25 µm	10 µin	UL94 V-0	Black	24	Square	Solder	-65 ░C	125 °C	All	0.1 in	2.54 mm	0.72 "	18.29 mm	1
Sullins Connector Solutions PBC24DFEN	2.54 µm	100 µin	Board to Board Cable	Tin	Gold	Polybutylene Terephthalate (PBT)	0.938 in	23.83 mm	Male Pin	Phosphor Bronze	3 A	Header Breakaway	0.1 "	2.54 mm	0.1 in	2.54 mm	Push-Pull			2	0.318 in	8.08 mm	Through Hole	Unshrouded	0.25 µm	10 µin	UL94 V-0	Black	48	Square	Solder	-65 ░C	125 °C	All	0.1 in	2.54 mm	0.52 in	13.21 mm
Sullins Connector Solutions PBC24DFDN	2.54 µm	100 µin	Board to Board Cable	Tin	Gold	Polybutylene Terephthalate (PBT)	0.838 in	21.29 mm	Male Pin	Phosphor Bronze	3 A	Header Breakaway	0.1 "	2.54 mm	0.1 in	2.54 mm	Push-Pull			2	0.318 in	8.08 mm	Through Hole	Unshrouded	0.25 µm	10 µin	UL94 V-0	Black	48	Square	Solder	-65 ░C	125 °C	All	0.1 in	2.54 mm	0.42 in	10.67 mm
Sullins Connector Solutions PBC24DBAN	2.54 µm	100 µin	Board to Board Cable	Tin	Gold	Polybutylene Terephthalate (PBT)			Male Pin	Phosphor Bronze	3 A	Header Breakaway	0.1 "	2.54 mm	0.1 in	2.54 mm	Push-Pull			2	0.23 in	5.84 mm	Right Angle Through Hole	Unshrouded	0.25 µm	10 µin	UL94 V-0	Black	48	Square	Solder	-65 ░C	125 °C	All			0.1 in	2.54 mm		6.1 mm	0.24 in
Sullins Connector Solutions PBC24DFCN	2.54 µm	100 µin	Board to Board Cable	Tin	Gold	Polybutylene Terephthalate (PBT)		18.75 mm	Male Pin	Phosphor Bronze	3 A	Header Breakaway	0.1 "	2.54 mm	0.1 in	2.54 mm	Push-Pull			2	0.318 in	8.08 mm	Through Hole	Unshrouded	0.25 µm	10 µin	UL94 V-0	Black	48	Square	Solder	-65 ░C	125 °C	All	0.1 in	2.54 mm	0.32 in	8.13 mm				0.738 in

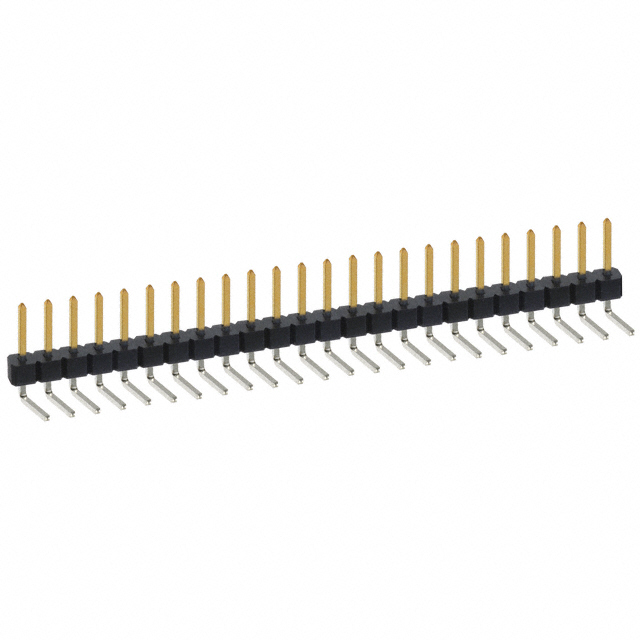

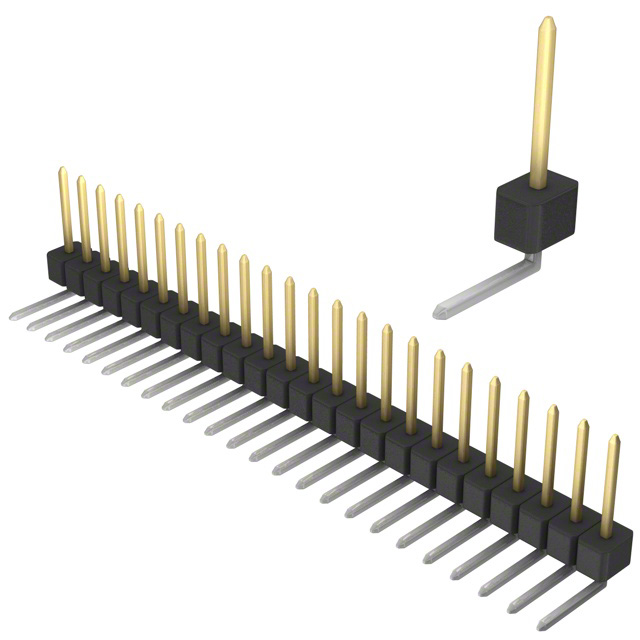

Sullins Connector Solutions PBC24SBBN	2.54 µm	100 µin	Board to Board Cable	Tin	Gold	Polybutylene Terephthalate (PBT)			Male Pin	Phosphor Bronze	3 A	Header Breakaway	0.1 "	2.54 mm			Push-Pull	5.08 mm	0.2 "		0.23 in	5.84 mm	Right Angle Through Hole	Unshrouded	0.25 µm	10 µin	UL94 V-0	Black	24	Square	Solder	-65 ░C	125 °C	All	0.14 in	3.56 mm			1

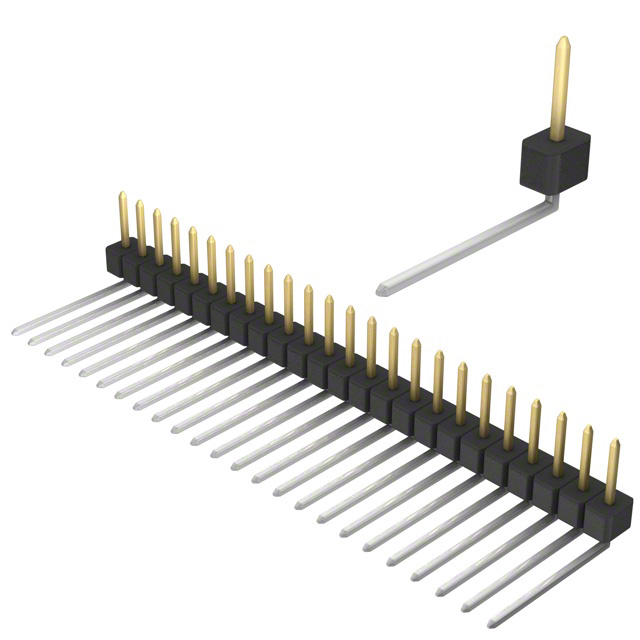

Sullins Connector Solutions PBC24SBEN	2.54 µm	100 µin	Board to Board Cable	Tin	Gold	Polybutylene Terephthalate (PBT)			Male Pin	Phosphor Bronze	3 A	Header Breakaway	0.1 "	2.54 mm			Push-Pull				0.23 in	5.84 mm	Right Angle Through Hole	Unshrouded	0.25 µm	10 µin	UL94 V-0	Black	24	Square	Solder	-65 ░C	125 °C	All	0.14 in	3.56 mm	0.5 "	12.7 mm	1

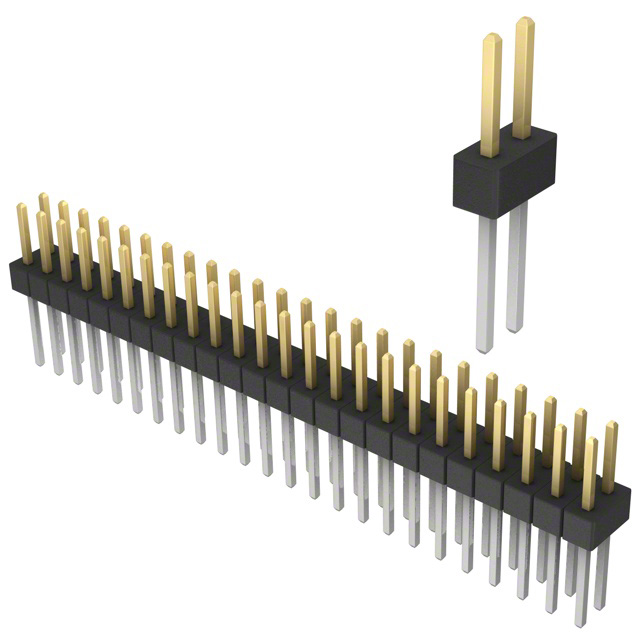

Sullins Connector Solutions PBC24DACN	2.54 µm	100 µin	Board to Board Cable	Tin	Gold	Polybutylene Terephthalate (PBT)	0.65 in	16.51 mm	Male Pin	Phosphor Bronze	3 A	Header Breakaway	0.1 "	2.54 mm	0.1 in	2.54 mm	Push-Pull			2	0.23 in	5.84 mm	Through Hole	Unshrouded	0.25 µm	10 µin	UL94 V-0	Black	48	Square	Solder	-65 ░C	125 °C	All	0.1 in	2.54 mm	0.32 in	8.13 mm
