21SM Series

Catalog

MICROSWITCH, SUBMINIATURE, PIN PLUNGER, SPDT, SOLDER, 5 A, 30 VDC

Part	Current Rating (Amps)	Mounting Type	Release Force	Circuit	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Termination Style	Pretravel	Pretravel	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Differential Travel	Differential Travel	Switch Function	Operating Force	Voltage Rating - AC	Operating Position	Operating Position	Actuator Type

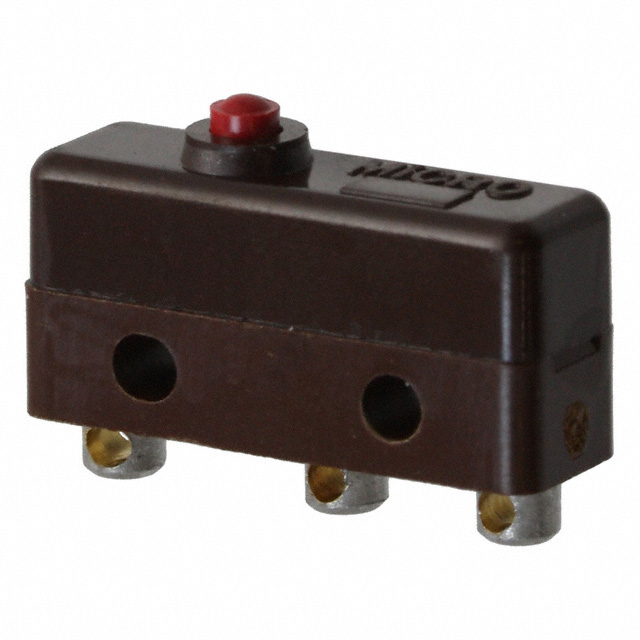

Honeywell Sensing and Productivity Solutions 21SM284-T2	5 A	Chassis Mount	28 gf	SPDT	80000 Cycles	0.005 "	0.13 mm	Solder Turret	0.8 mm	0.03 "	-55 C	125 °C	28 V	0.1 mm	0.004 in	On-Mom	141 gf	115 V	0.33 in	8.4 mm	Round (Pin Plunger)
Honeywell Sensing and Productivity Solutions 21SM144	5 A	Chassis Mount	28 gf	SPDT	80000 Cycles	0.005 "	0.13 mm	Solder Lug	0.8 mm	0.03 "	-55 C	125 °C	30 V	0.05 mm	0.002 in	On-Mom	85 gf	250 V	0.33 in	8.4 mm	Round (Pin Plunger)
Honeywell Sensing and Productivity Solutions 21SM369	5 A	Chassis Mount	28 gf	SPDT	80000 Cycles	0.005 "	0.13 mm	Solder Lug	0.8 mm	0.03 "	-55 C	125 °C	30 V	0.05 mm	0.002 in	On-Mom	85 gf	250 V	0.33 in	8.4 mm	Round (Pin Plunger)
Honeywell Sensing and Productivity Solutions 21SM366	1 A	Chassis Mount	28 gf	SPDT	80000 Cycles	0.005 "	0.13 mm	Solder Lug	0.8 mm	0.03 "	-55 C	125 °C	30 V	0.05 mm	0.002 in	On-Mom	85 gf	125 V	0.33 in	8.4 mm	Round (Pin Plunger)
