AWG28-40 Series

Catalog

CBL RIBN 40COND 0.039 MULT 25'

Part	Insulation Resistance	Conductor Material	Ratings	Pitch	Pitch	Length	Length	Voltage	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Ribbon Width [custom]	Ribbon Width [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Shielding	Wire Gauge	Ribbon Thickness	Ribbon Thickness	Number of Conductors	Length [x]	Length [x]	Cable Type	First Conductor Mark	Operating Temperature	Length	Spool Size [x]	Spool Size [x]

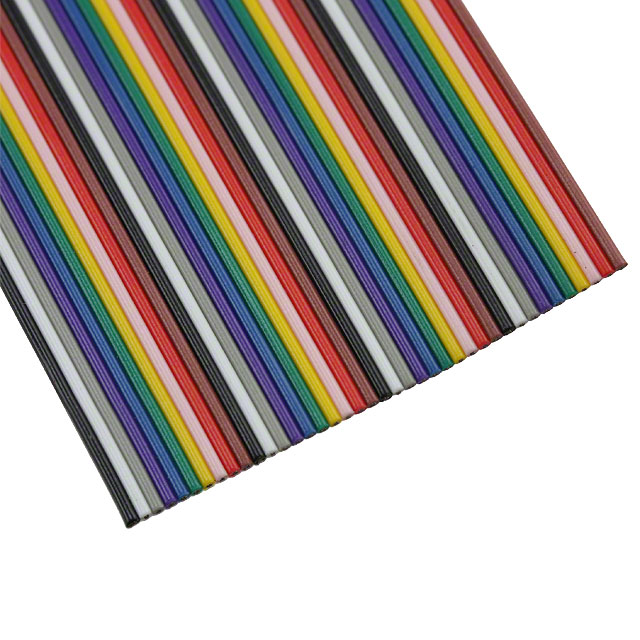

Assmann WSW Components AWG28-40/F-1/300	100 MOhms	Copper Tinned	UL Style 2651	1 mm	0.039 in	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	300 VDC	Multiple	-10 °C	105 ░C	Poly-Vinyl Chloride (PVC)	1.575 in	40 mm	36 AWG	7 Strands	Unshielded	28 AWG	0.89 mm	0.035 in	40	50 ft	15.24 m	Flat Cable
Assmann WSW Components AWG28-40/F/300	100 MOhms	Copper Tinned	UL Style 2651	1.27 mm	0.05 in	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	300 VDC	Multiple			Poly-Vinyl Chloride (PVC)	2 in	50.8 mm	36 AWG	7 Strands	Unshielded	28 AWG	0.89 mm	0.035 in	40	50 ft	15.24 m	Flat Cable	Red	105 C

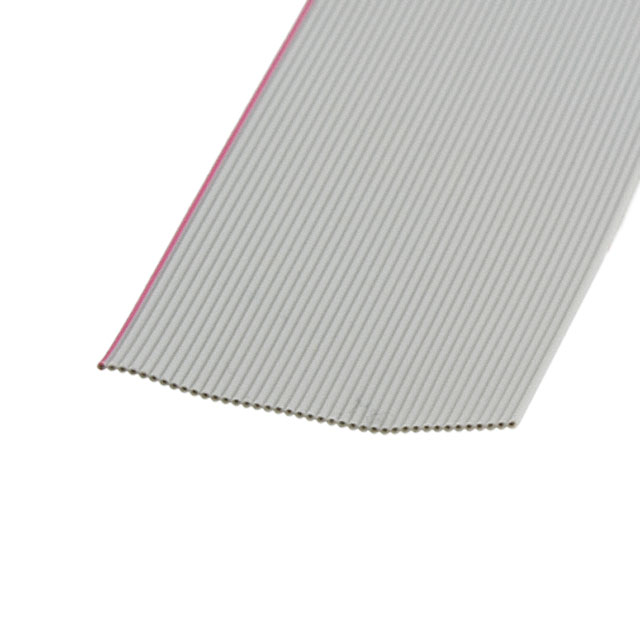

Assmann WSW Components AWG28-40/G-1/300	100 MOhms	Copper Tinned	UL Style 2651	1 mm	0.039 in	91440 mm	3600 in	300 VDC	Gray	-10 °C	105 ░C	Poly-Vinyl Chloride (PVC)	1.575 in	40 mm	36 AWG	7 Strands	Unshielded	28 AWG	0.89 mm	0.035 in	40			Flat Cable	Red		Enter Number of Feet in Order Quantity	300 ft	91.44 m

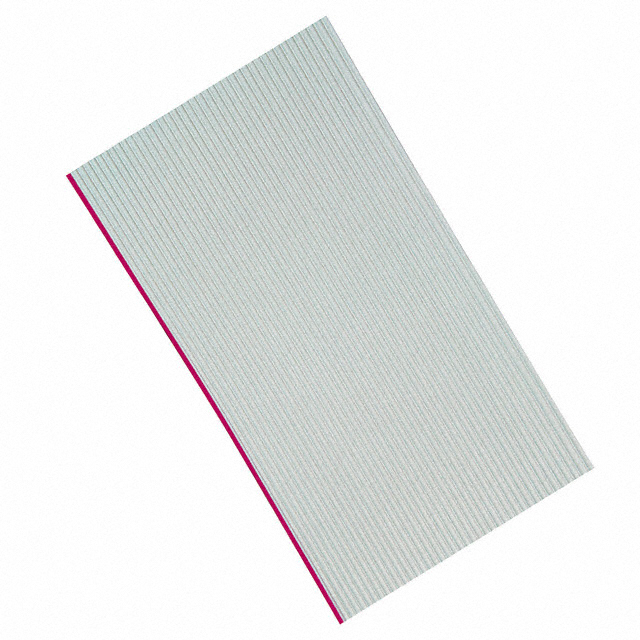

Assmann WSW Components AWG28-40/G/300	100 MOhms	Copper Tinned	UL Style 2651	1.27 mm	0.05 in	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	300 VDC	Gray	-10 °C	105 ░C	Poly-Vinyl Chloride (PVC)	2 in	50.8 mm	36 AWG	7 Strands	Unshielded	28 AWG	0.89 mm	0.035 in	40	50 ft	15.24 m	Flat Cable	Red		Enter Number of Feet in Order Quantity	300 ft	91.44 m
