917-83 Series
Manufacturer: Preci-Dip
Beta
⌘K
CONN TRANSIST TO-5 8POS GOLD
| Part | Termination Post Length | Termination Post Length | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Type | Mounting Type | Termination | Housing Material | Contact Material - Post [custom] | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Finish - Post | Number of Positions or Pins (Grid) | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

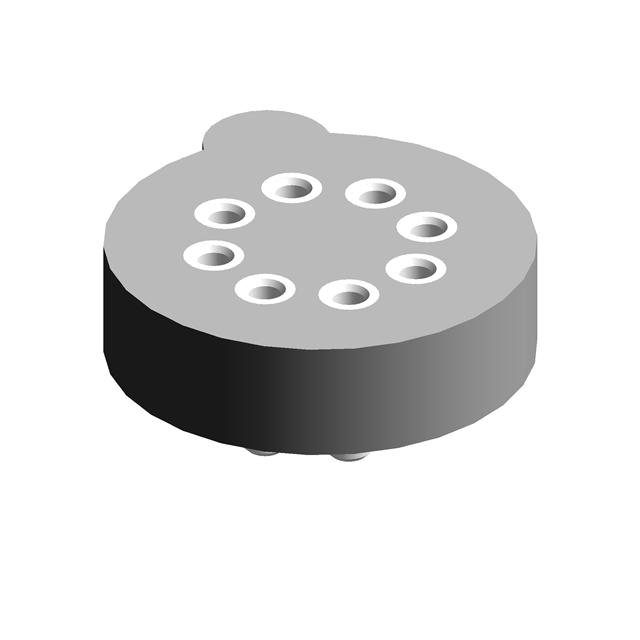

 Preci-Dip | 0.055 in | 1.4 mm | 1 A | 10 mOhm | UL94 V-0 | Transistor TO-5 | Through Hole | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 29.5 µin | 0.75 µm | Tin | 8 | Beryllium Copper | -55 C | 125 °C | Gold |
 Preci-Dip | 0.125 in | 3.18 mm | 1 A | 10 mOhm | UL94 V-0 | Transistor TO-5 | Through Hole | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 29.5 µin | 0.75 µm | Tin | 8 | Beryllium Copper | -55 C | 125 °C | Gold |

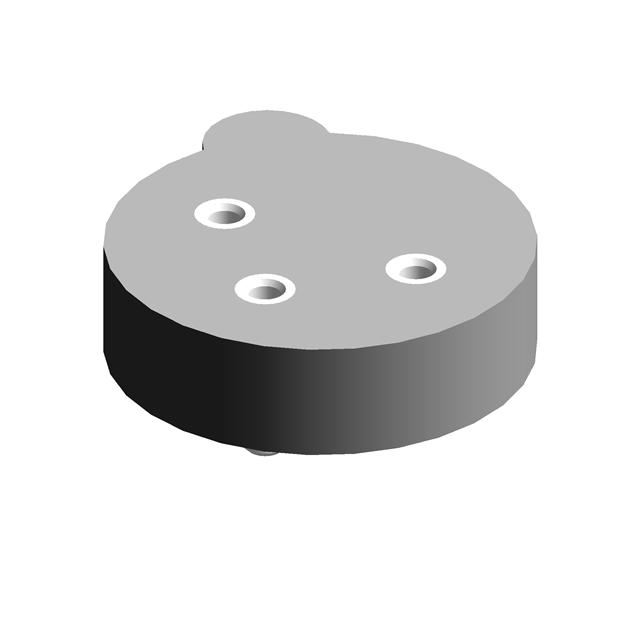

 Preci-Dip | 0.055 in | 1.4 mm | 1 A | 10 mOhm | UL94 V-0 | Transistor TO-5 | Through Hole | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 29.5 µin | 0.75 µm | Tin | 3 | Beryllium Copper | -55 C | 125 °C | Gold |
 Preci-Dip | 0.055 in | 1.4 mm | 1 A | 10 mOhm | UL94 V-0 | Transistor TO-5 | Through Hole | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 29.5 µin | 0.75 µm | Tin | 8 | Beryllium Copper | -55 C | 125 °C | Gold |

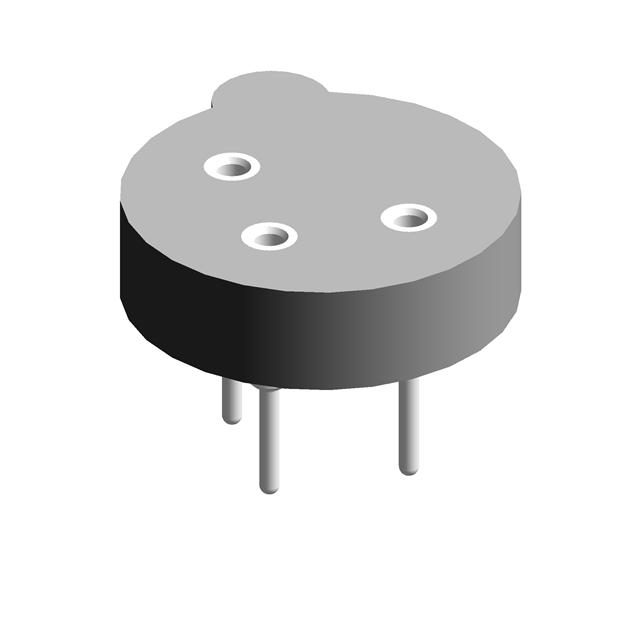

 Preci-Dip | 0.125 in | 3.18 mm | 1 A | 10 mOhm | UL94 V-0 | Transistor TO-5 | Through Hole | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 29.5 µin | 0.75 µm | Tin | 3 | Beryllium Copper | -55 C | 125 °C | Gold |

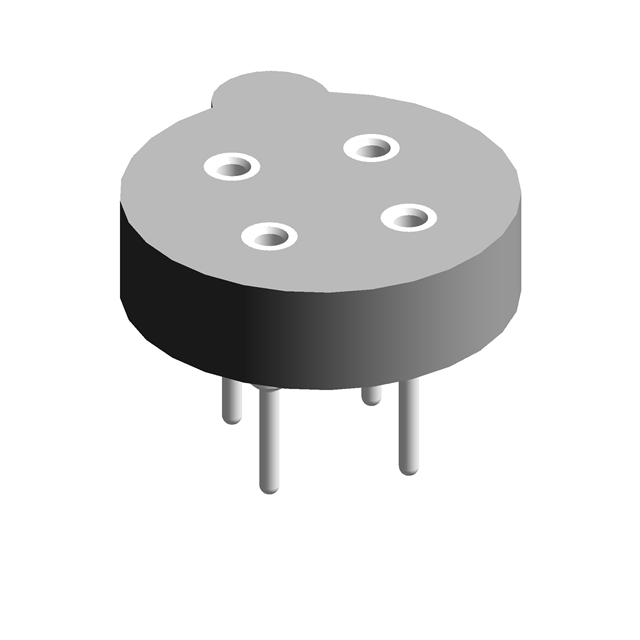

 Preci-Dip | 0.055 in | 1.4 mm | 1 A | 10 mOhm | UL94 V-0 | Transistor TO-5 | Through Hole | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 29.5 µin | 0.75 µm | Tin | 4 | Beryllium Copper | -55 C | 125 °C | Gold |
 Preci-Dip | 0.125 in | 3.18 mm | 1 A | 10 mOhm | UL94 V-0 | Transistor TO-5 | Through Hole | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 29.5 µin | 0.75 µm | Tin | 4 | Beryllium Copper | -55 C | 125 °C | Gold |

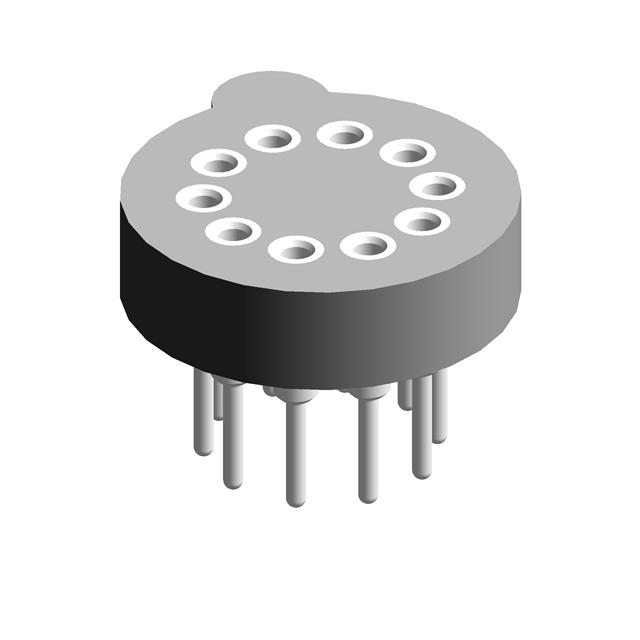

 Preci-Dip | 0.125 in | 3.18 mm | 1 A | 10 mOhm | UL94 V-0 | Transistor TO-5 | Through Hole | Solder | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Brass | 29.5 µin | 0.75 µm | Tin | 10 | Beryllium Copper | -55 C | 125 °C | Gold |
