GWP9LR35 Series

Catalog

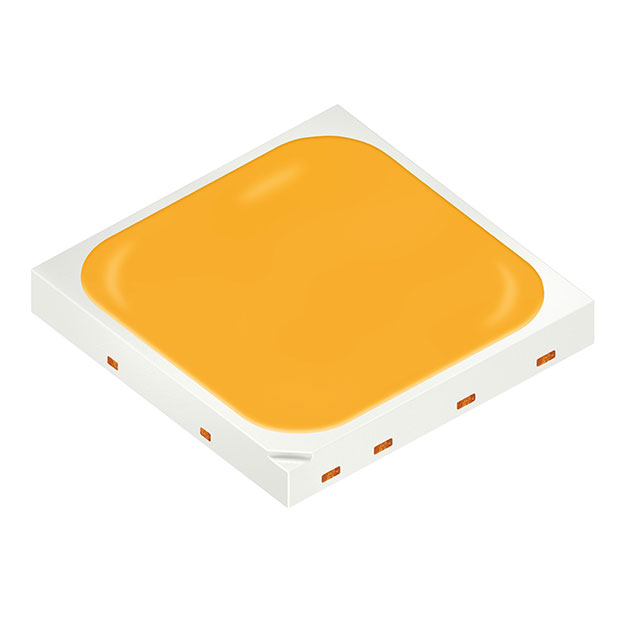

LED DURIS S8 NEUT WHT 4000K SMD

Part	Thermal Resistance of Package	Viewing Angle	Package / Case	Mounting Type	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Lumens/Watt @ Current - Test	CCT (K)	CRI (Color Rendering Index)	Color	Current - Test	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]
ams-OSRAM USA INC. GW P9LR35.PM-M2M3-XX55-1-180-R18	1.5 °C/W	120 °	2020 (5050 Metric)	Surface Mount	5.55 V	0.197 in	0.197 "	5 mm	5 mm	800 mA	200 lm/W	4000 K	70	Neutral White	180 mA	SMD	0.031 in	0.8 mm	210 lm	200 lm	190 lm
ams-OSRAM USA INC. GW P9LR35.EM-L9M6-XX51-1-180-R18	1.7 °C/W	120 °	2020 (5050 Metric)	Surface Mount	5.55 V	0.197 in	0.197 "	5 mm	5 mm	800 mA	205 lm/W	6500 K	80	Cool White	180 mA	SMD	0.031 in	0.8 mm	240 lm	205 lm	170 lm
ams-OSRAM USA INC. GW P9LR35.EM-M1M6-XX55-1-180-R18	1.6 °C/W	120 °	2020 (5050 Metric)	Surface Mount	5.55 V	0.197 in	0.197 "	5 mm	5 mm	800 mA	210 lm/W	4000 K	80	Neutral White	180 mA	SMD	0.031 in	0.8 mm	240 lm		180 lm
ams-OSRAM USA INC. GW P9LR35.PM-M2M4-XX51-1-180-R18	1.5 °C/W	120 °	2020 (5050 Metric)	Surface Mount	5.55 V	0.197 in	0.197 "	5 mm	5 mm	800 mA	205 lm/W		70	White	180 mA	SMD	0.031 in	0.8 mm		205 lm
ams-OSRAM USA INC. GW P9LR35.EM-L9M6-XX56-1-180-R18	1.7 °C/W	120 °	2020 (5050 Metric)	Surface Mount	5.55 V	0.197 in	0.197 "	5 mm	5 mm	800 mA	205 lm/W	3500 K	80	Warm White	180 mA	SMD	0.031 in	0.8 mm	240 lm	205 lm	170 lm
ams-OSRAM USA INC. GW P9LR35.EM-L9M6-XX52-1-180-R18	1.7 °C/W	120 °	2020 (5050 Metric)	Surface Mount	5.55 V	0.197 in	0.197 "	5 mm	5 mm	800 mA	205 lm/W	5700 K	80	Cool White	180 mA	SMD	0.031 in	0.8 mm	240 lm	205 lm	170 lm
ams-OSRAM USA INC. GW P9LR35.PM-M3M4-XX53-1-180-R18	1.5 °C/W	120 °	2020 (5050 Metric)	Surface Mount	5.55 V	0.197 in	0.197 "	5 mm	5 mm	800 mA	210 lm/W	5000 K	70	Cool White	180 mA	SMD	0.031 in	0.8 mm		210 lm
ams-OSRAM USA INC. GW P9LR35.PM-M3M4-XX52-1-180-R18	1.5 °C/W	120 °	2020 (5050 Metric)	Surface Mount	5.55 V	0.197 in	0.197 "	5 mm	5 mm	800 mA	210 lm/W	5700 K	70	Cool White	180 mA	SMD	0.031 in	0.8 mm		210 lm
ams-OSRAM USA INC. GW P9LR35.EM-L8M4-XX58-1-180-R18	1.6 °C/W	120 °	2020 (5050 Metric)	Surface Mount	5.55 V	0.197 in	0.197 "	5 mm	5 mm	800 mA	190 lm/W	2700 K	80	Warm White	180 mA	SMD	0.031 in	0.8 mm	220 lm		160 lm
