WL2S Series

Catalog

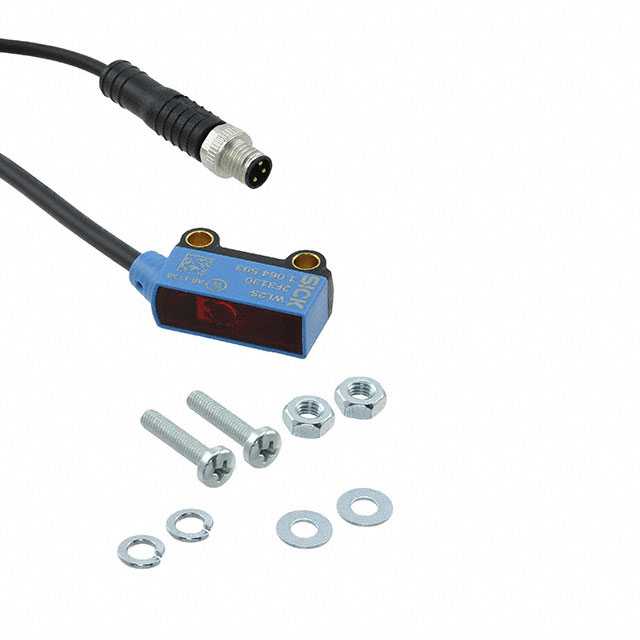

SENSOR RETROREFLECTIVE 550MM PNP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Time	Sensing Method	Output Configuration	Light Source	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Connection Method	Ingress Protection	Sensing Distance	Sensing Distance	Cable Length	Cable Length
SICK, Inc. 1064593	50 °C	-25 °C	10 VDC	30 VDC	500 µs	Retroreflective	PNP - Dark-ON/Light-ON - Selectable	Red LED	55 cm	0 m	0 "	21.654 in	Cable with Connector M8 3POS	IP67
SICK, Inc. 1064592			10 VDC	30 VDC	500 µs	Retroreflective	PNP	Red (640nm)					Cable with Connector	IP67	120 cm	47.244 "	0.2 m	7.87 in
SICK, Inc. 1064595			10 VDC	30 VDC	500 µs	Retroreflective	NPN	Red (640nm)					Cable	IP67	120 cm	47.244 "	2 m	78.74 "
SICK, Inc. 1064596			10 VDC	30 VDC	500 µs	Retroreflective	NPN	Red (640nm)					Cable	IP67	120 cm	47.244 "	2 m	78.74 "
SICK, Inc. WL2S-2N1130			10 VDC	30 VDC	500 µs	Retroreflective	NPN	Red (640nm)					Cable	IP67	120 cm	47.244 "	2 m	78.74 "
SICK, Inc. 1064590			10 VDC	30 VDC	500 µs	Retroreflective	PNP	Red (640nm)					Cable	IP67	120 cm	47.244 "	2 m	78.74 "
