1658020 Series

Catalog

MSB0.80PL30ASY160FL,-,10,-TY

Part	Mounting Type	Pitch	Pitch	Connector Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Rows [custom]	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights
TE Connectivity AMP Connectors 1658020-4	Surface Mount	0.8 mm	0.031 in	Plug Outer Shroud Contacts	1.151 in	29.24 mm	Gold	2	Board Guide Ground Bus (Plane)	160	0.25 Ám	10 Áin	30 mm
TE Connectivity AMP Connectors 1-1658020-1	Surface Mount	0.8 mm	0.031 in	Plug Outer Shroud Contacts	1.151 in	29.24 mm	Gold	2	Board Guide Ground Bus (Plane)	28	2.54 µm	100 µin	30 mm

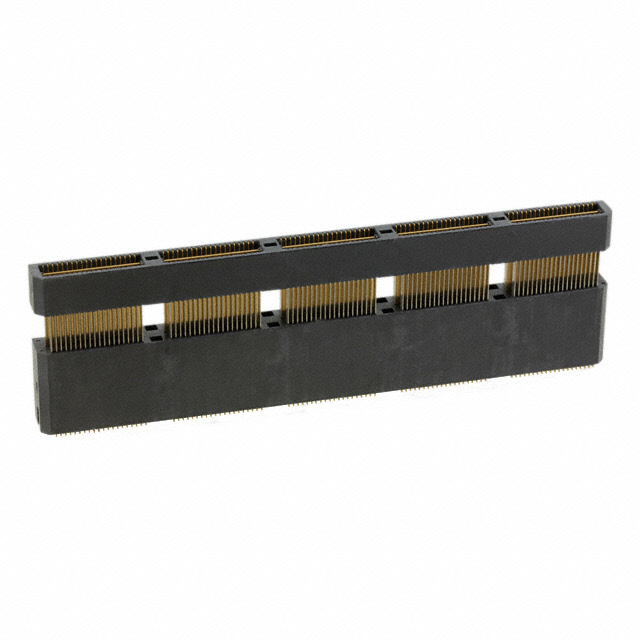

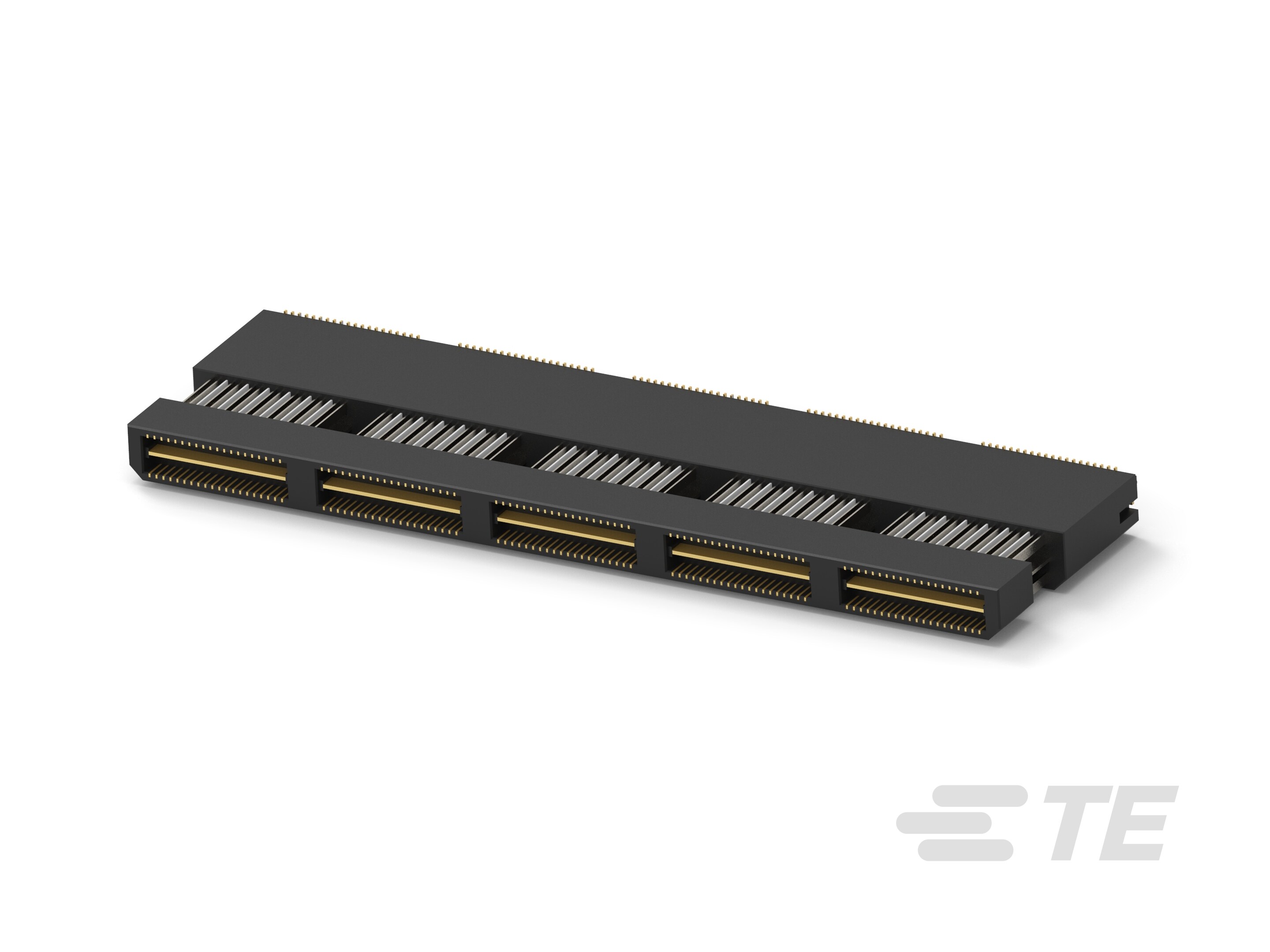

TE Connectivity AMP Connectors 1658020-5	Surface Mount	0.8 mm	0.031 in	Plug Outer Shroud Contacts	1.151 in	29.24 mm	Gold	2	Board Guide Ground Bus (Plane)	200	0.25 Ám	10 Áin	30 mm
