LD25W Series

Catalog

10~20V@125MA, 0~10V DIM TO 0%

Part	Weight	Weight	Mounting Type	Voltage - Input (Max) [Max]	Topology	Number of Outputs	Approval Agency	Current - Output (Max) [Max]	Standard Number	Dimming [Min]	Dimming [Max]	Power (Watts)	Type	Voltage - Isolation	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Voltage - Input (Min) [Min]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output [Max]	Voltage - Output [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Efficiency	Dimming	Voltage - Output

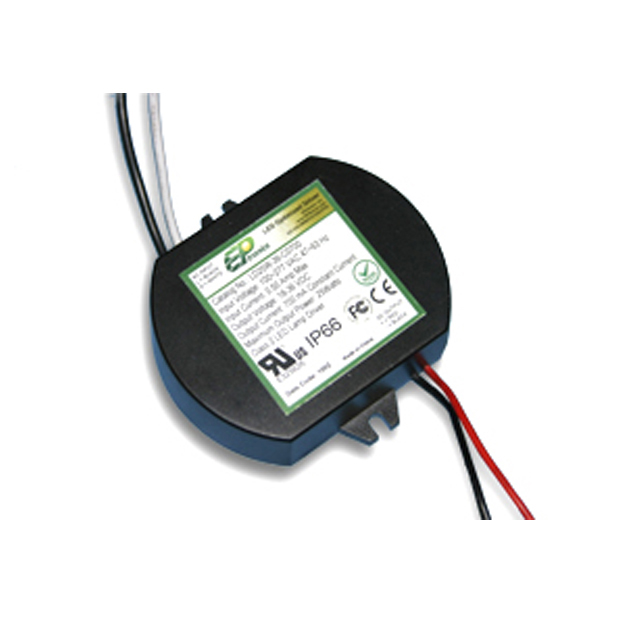

EPtronics, Inc. LD25W-20-C1250-RD	201.3 g	0.444 lb	Chassis Mount	305 VAC	AC DC Converter	1	CE cURus FCC	1.25 A	C22.2 UL 8750	0 V	10 V	25 W	Constant Current	2500 V	Wire Leads	60 °C	-40 C	IP66	100 VAC	OCP OVP SCP	3.07 in	78.5 mm	0.99 "	78 mm	25.1 mm	3.09 in
EPtronics, Inc. LD25W-12-C2080-RD			Chassis Mount	305 VAC	AC DC Converter	1	CE cURus FCC	2.08 A				25 W	Constant Current	3750 VDC	Wire Leads	60 °C	-30 ░C	IP66	90 VAC	OCP OVP SCP			0.99 "		25.1 mm		12 V	4 V	80 mm	3.15 "	78 %	Analog PWM
EPtronics, Inc. LD25W-16-C1560-RD			Chassis Mount	305 VAC	AC DC Converter	1	CE cURus FCC	1.56 A				25 W	Constant Current	3750 VDC	Wire Leads	60 °C	-30 ░C	IP66	90 VAC	OCP OVP SCP			0.99 "		25.1 mm		16 V	6 V	80 mm	3.15 "	81 %	Analog PWM
EPtronics, Inc. LD25W-20-C1250			Chassis Mount	305 VAC	AC DC Converter	1	CE cURus FCC	1.25 A				25 W	Constant Current	3750 VDC	Wire Leads	60 °C	-30 ░C	IP66	90 VAC	OCP OVP SCP			0.99 "		25.1 mm		20 V	7 V	80 mm	3.15 "		Analog PWM
EPtronics, Inc. LD25W-28-C0850-RD	201.3 g	0.444 lb	Chassis Mount	305 VAC	AC DC Converter	1	CE cURus FCC	850 mA	C22.2 UL 8750	0 V	10 V	25 W	Constant Current	2500 V	Wire Leads	60 °C	-40 C	IP66	100 VAC	OCP OVP SCP	3.07 in	78.5 mm	0.99 "	78 mm	25.1 mm	3.09 in	28 V	14 V
EPtronics, Inc. LD25W-24-C1040-RD	201.3 g	0.444 lb	Chassis Mount	305 VAC	AC DC Converter	1	CE cURus FCC	1.04 A	C22.2 UL 8750	0 V	10 V	25 W	Constant Current	2500 V	Wire Leads	60 °C	-40 C	IP66	100 VAC	OCP OVP SCP	3.07 in	78.5 mm	0.99 "	78 mm	25.1 mm	3.09 in	24 V	12 V
EPtronics, Inc. LD25W-72-C0350-RD	201.3 g	0.444 lb	Chassis Mount	305 VAC	AC DC Converter	1	CE cURus FCC	350 mA	C22.2 UL 8750	0 V	10 V	25 W	Constant Current	2500 V	Wire Leads	60 °C	-40 C	IP66	100 VAC	OCP OVP SCP	3.07 in	78.5 mm	0.99 "	78 mm	25.1 mm	3.09 in	72 V	36 V			86 %
EPtronics, Inc. LD25W-72-C0350			Chassis Mount	305 VAC	AC DC Converter	1	CE cURus FCC	350 mA				25 W	Constant Current	3750 VDC	Wire Leads	60 °C	-30 ░C	IP66	90 VAC	OCP OVP SCP			0.99 "		25.1 mm		72 V	24 V	80 mm	3.15 "	86 %	Analog PWM
EPtronics, Inc. LD25W-36-C0700			Chassis Mount	305 VAC	AC DC Converter	1	CE cURus FCC	700 mA				25 W	Constant Current	3750 VDC	Wire Leads	60 °C	-30 ░C	IP66	90 VAC	OCP OVP SCP			0.99 "		25.1 mm		36 V	12 V	80 mm	3.15 "	83 %	Analog PWM
EPtronics, Inc. LD25W-36	201.3 g	0.444 lb	Chassis Mount	305 VAC	AC DC Converter	1	CE cURus FCC	700 mA	C22.2 UL 8750			25 W	Constant Voltage	3750 VDC	Wire Leads	60 °C	-30 ░C	IP66	90 VAC	OCP OVP SCP	3.07 in	78.5 mm	0.99 "	78 mm	25.1 mm	3.09 in					83 %	Non-Dimmable	36 V
