M20-792 Series

Catalog

CONN, R/A RCPT, 20POS, 2ROW, 2.54MM ROHS COMPLIANT: YES

Part	Insulation Material	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Connector Type	Mounting Type	Termination	Contact Type	Insulation Color	Contact Finish - Mating	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Contact Finish - Post	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]

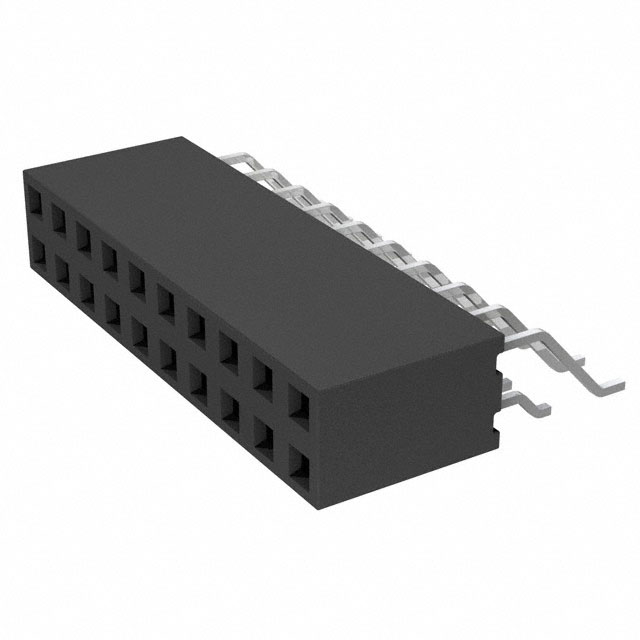

Harwin Inc. M20-7921042R	Glass Filled Nylon 9T Polyamide (PA9T)	General Purpose	2.03 µm	80 µin	Phosphor Bronze	Square	Receptacle	Right Angle Surface Mount	Solder	Forked	Black	Gold	UL94 V-0	3 A	Push-Pull	Tin	All	-40 C	105 ░C	0.1 in	2.54 mm	0.1 "	2.54 mm	0.197 "	5 mm	20	0.015 µm	0.59 µin	2

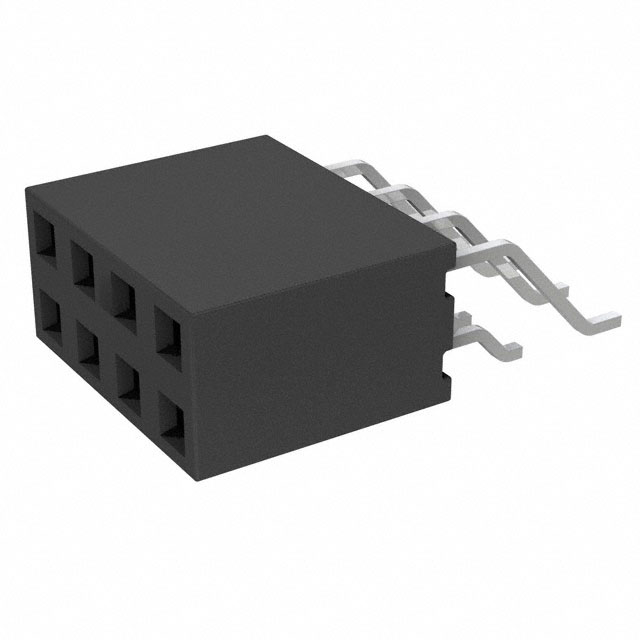

Harwin Inc. M20-7920442R	Glass Filled Nylon 9T Polyamide (PA9T)	General Purpose	2.03 µm	80 µin	Phosphor Bronze	Square	Receptacle	Right Angle Surface Mount	Solder	Forked	Black	Gold	UL94 V-0	3 A	Push-Pull	Tin	All	-40 C	105 ░C	0.1 in	2.54 mm	0.1 "	2.54 mm	0.197 "	5 mm	8	0.015 µm	0.59 µin	2

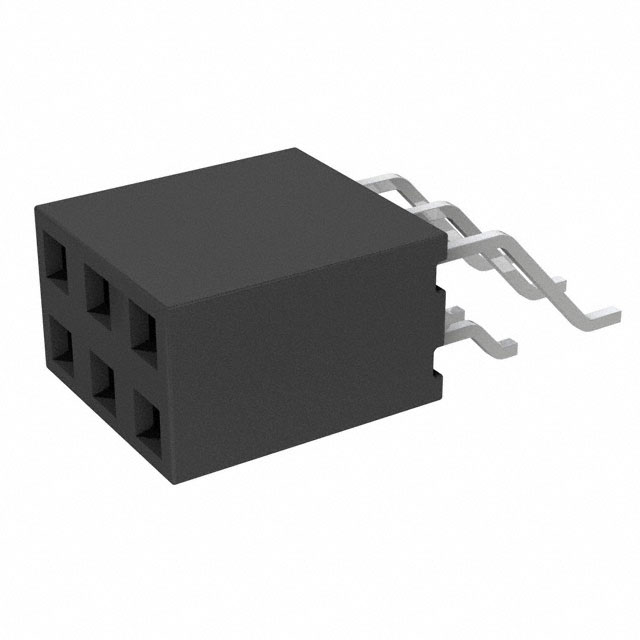

Harwin Inc. M20-7920342R	Glass Filled Nylon 9T Polyamide (PA9T)	General Purpose	2.03 µm	80 µin	Phosphor Bronze	Square	Receptacle	Right Angle Surface Mount	Solder	Forked	Black	Gold	UL94 V-0	3 A	Push-Pull	Tin	All	-40 C	105 ░C	0.1 in	2.54 mm	0.1 "	2.54 mm	0.197 "	5 mm	6	0.015 µm	0.59 µin	2
