TMP451-Q1 Series

Automotive 1.7-V remote and local temp sensor with N-factor, filtering and series-R correction

Catalog

Automotive 1.7-V remote and local temp sensor with N-factor, filtering and series-R correction

Part	Sensing Temperature - Local [Max]	Sensing Temperature - Local [Min]	Resolution	Sensing Temperature - Remote [Max]	Sensing Temperature - Remote [Min]	Qualification	Grade	Output Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Accuracy - Highest (Lowest)	Test Condition [Min]	Test Condition [Max]	Test Condition [Min]	Test Condition [Max]	Package / Case	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Supplied Contents	Sensor Type	Utilized IC / Part	Sensitivity	Interface

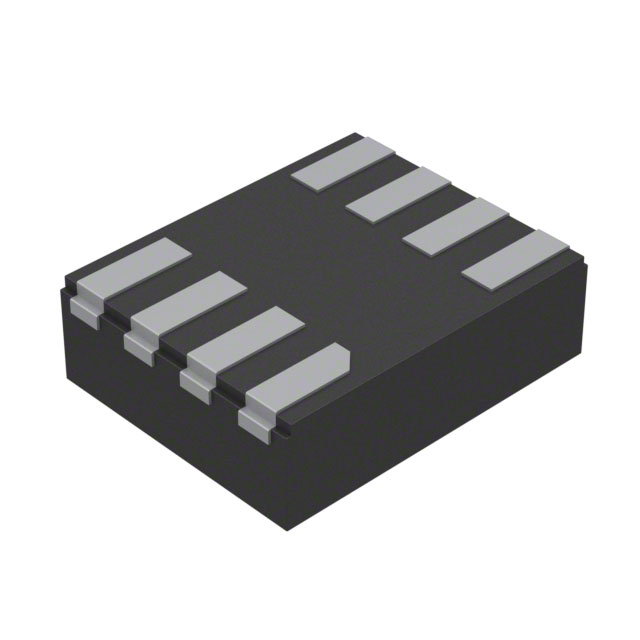

Texas Instruments TMP451AQDQWTQ1	125 °C	-40 °C	12 b	191 °C	-64 °C	AEC-Q100	Automotive	2-Wire Serial I2C/SMBus	Surface Mount Wettable Flank	-40 °C	125 °C	1 °C 2 ¯C	-40 °C	70 °C	0 °C	125 °C	8-WFDFN	8-WSON (2x2.5)	3.6 V	1.7 V	One-Shot Output Switch Programmable Limit Shutdown Mode
Texas Instruments TMP451JQDQFTQ1	125 °C	-40 °C	12 b	191 °C	-64 °C	AEC-Q100	Automotive	I2C/SMBus	Surface Mount	-40 °C	125 °C	1 °C 2 ¯C	-40 °C	70 °C	0 °C	125 °C	8-WFDFN	8-WSON (2x2)	3.6 V	1.7 V	One-Shot Output Switch Programmable Limit Shutdown Mode
Texas Instruments TMP451AQDQFRQ1	125 °C	-40 °C	12 b	191 °C	-64 °C	AEC-Q100	Automotive	I2C/SMBus	Surface Mount	-40 °C	125 °C	1 °C 2 ¯C	-40 °C	70 °C	0 °C	125 °C	8-WFDFN	8-WSON (2x2)	3.6 V	1.7 V	One-Shot Output Switch Programmable Limit Shutdown Mode

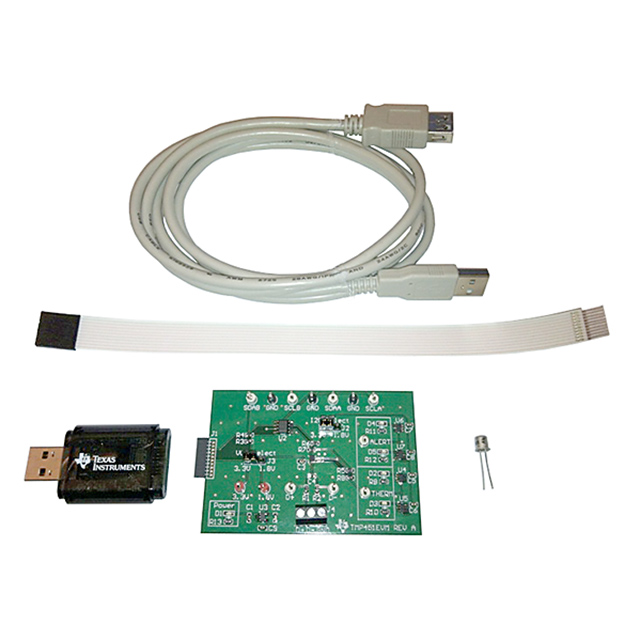

Texas Instruments TMP451EVM																						Board(s) Cable(s)	Temperature	TMP451	1 °C	I2C
Texas Instruments TMP451HQDQFRQ1	125 °C	-40 °C	12 b	191 °C	-64 °C	AEC-Q100	Automotive	SMBus	Surface Mount	-40 °C	125 °C	1 °C 2 ¯C	-40 °C	70 °C	0 °C	125 °C	8-WFDFN	8-WSON (2x2)	3.6 V	1.7 V	One-Shot Output Switch Programmable Limit Shutdown Mode
Texas Instruments TMP451HQDQWTQ1	125 °C	-40 °C	12 b	191 °C	-64 °C	AEC-Q100	Automotive	I2C/SMBus	Surface Mount Wettable Flank	-40 °C	125 °C	1 °C 2 ¯C	-40 °C	70 °C	0 °C	125 °C	8-WFDFN	8-WSON (2x2.5)	3.6 V	1.7 V	One-Shot Output Switch Programmable Limit Shutdown Mode
Texas Instruments TMP451AIDQFT	125 °C	-40 °C	12 b	191 °C	-64 °C			I2C/SMBus	Surface Mount	-40 °C	125 °C	1 °C 2 ¯C	-40 °C	70 °C	0 °C	125 °C	8-WFDFN	8-WSON (2x2)	3.6 V	1.7 V	One-Shot Output Switch Programmable Limit Shutdown Mode
Texas Instruments TMP451JQDQWTQ1	125 °C	-40 °C	12 b	191 °C	-64 °C	AEC-Q100	Automotive	I2C/SMBus	Surface Mount Wettable Flank	-40 °C	125 °C	1 °C 2 ¯C	-40 °C	70 °C	0 °C	125 °C	8-WFDFN	8-WSON (2x2.5)	3.6 V	1.7 V	One-Shot Output Switch Programmable Limit Shutdown Mode
Texas Instruments TMP451JQDQFRQ1	125 °C	-40 °C	12 b	191 °C	-64 °C	AEC-Q100	Automotive	SMBus	Surface Mount	-40 °C	125 °C	1 °C 2 ¯C	-40 °C	70 °C	0 °C	125 °C	8-WFDFN	8-WSON (2x2)	3.6 V	1.7 V	One-Shot Output Switch Programmable Limit Shutdown Mode
Texas Instruments TMP451AQDQFTQ1	125 °C	-40 °C	12 b	191 °C	-64 °C	AEC-Q100	Automotive	SMBus	Surface Mount	-40 °C	125 °C	1 °C 4 °C	-40 °C	70 °C	0 °C	125 °C	8-WFDFN	8-WSON (2x2)	3.6 V	1.7 V	One-Shot Output Switch Programmable Limit Shutdown Mode

Catalog

Automotive 1.7-V remote and local temp sensor with N-factor, filtering and series-R correction

Key Features

• Qualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to 125°C ambient operating temperature range±1°C accuracy for local and remote diode sensors0.0625°C resolution for local and remote channels1.7-V to 3.6-V supply and logic voltage range27-µA operating current, 3-µA shutdown currentSeries resistance cancellationη-factor and offset correctionProgrammable digital filterDiode fault detectionTwo-wire and SMBus™ serial interface8-pin WSON (WDFN) packages2.50-mm × 2.50-mm with Wettable Flanks (DQW)2.00-mm × 2.00-mm (DQF)Qualified for automotive applicationsAEC-Q100 qualified with the following results:Device temperature grade 1: –40°C to 125°C ambient operating temperature range±1°C accuracy for local and remote diode sensors0.0625°C resolution for local and remote channels1.7-V to 3.6-V supply and logic voltage range27-µA operating current, 3-µA shutdown currentSeries resistance cancellationη-factor and offset correctionProgrammable digital filterDiode fault detectionTwo-wire and SMBus™ serial interface8-pin WSON (WDFN) packages2.50-mm × 2.50-mm with Wettable Flanks (DQW)2.00-mm × 2.00-mm (DQF)

Description

The TMP451-Q1 device is a high-accuracy, low-power remote temperature sensor monitor with a built-in local temperature sensor. The remote temperature sensors are typically low-cost discrete NPN or PNP transistors, or substrate thermal transistors or diodes that are integral parts of microprocessors, microcontrollers, or FPGAs. The temperature is represented as a 12-bit digital code for both the local and the remote sensors, giving a resolution of 0.0625°C. The temperature accuracy is ±1°C (maximum) in the typical operating range for the local and the remote temperature sensors. The two-wire serial interface accepts the SMBus communication protocol. Advanced features such as series resistance cancellation, programmable nonideality factor (η-factor), programmable offset, programmable temperature limits, and a programmable digital filter are combined to provide a robust thermal monitoring solution with improved accuracy and noise immunity. The TMP451-Q1 device is ideal for multi-location, high-accuracy temperature measurements in a variety of automotive sub-systems. The TMP451-Q1 is available in a Wettable Flanks WSON package that provides a visual indicator of solderability to lower automatic visual inspection (AVI) time. The device is specified for operation over a supply voltage range of 1.7 V to 3.6 V and a temperature range of –40°C to 125°C. The TMP451-Q1 device is a high-accuracy, low-power remote temperature sensor monitor with a built-in local temperature sensor. The remote temperature sensors are typically low-cost discrete NPN or PNP transistors, or substrate thermal transistors or diodes that are integral parts of microprocessors, microcontrollers, or FPGAs. The temperature is represented as a 12-bit digital code for both the local and the remote sensors, giving a resolution of 0.0625°C. The temperature accuracy is ±1°C (maximum) in the typical operating range for the local and the remote temperature sensors. The two-wire serial interface accepts the SMBus communication protocol. Advanced features such as series resistance cancellation, programmable nonideality factor (η-factor), programmable offset, programmable temperature limits, and a programmable digital filter are combined to provide a robust thermal monitoring solution with improved accuracy and noise immunity. The TMP451-Q1 device is ideal for multi-location, high-accuracy temperature measurements in a variety of automotive sub-systems. The TMP451-Q1 is available in a Wettable Flanks WSON package that provides a visual indicator of solderability to lower automatic visual inspection (AVI) time. The device is specified for operation over a supply voltage range of 1.7 V to 3.6 V and a temperature range of –40°C to 125°C.
