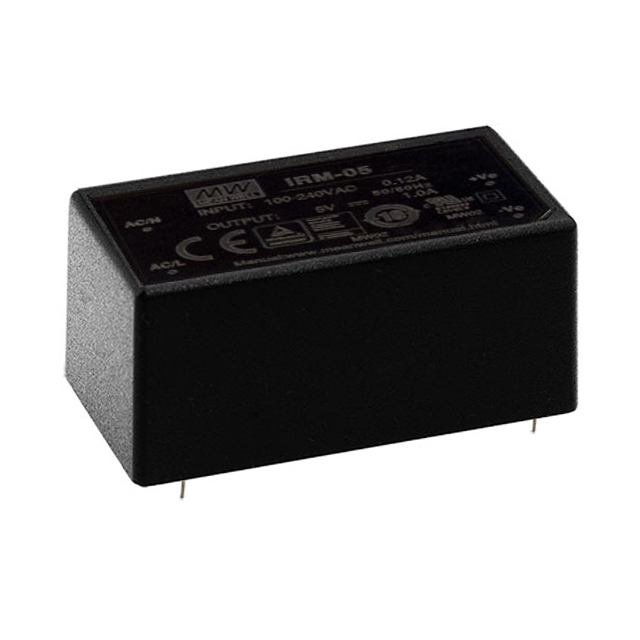

IRM-05 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 5.5W
| Part | Load Regulation | Line Regulation | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output (Max) [Max] | Approval Agency | Mounting Type | Power (Watts) | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Efficiency | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Features | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 0.5 % | 0.3 % | ITE (Commercial) | 305 VAC 430 VDC | 85 VAC 120 VDC | 230 mA | CB CE cURus EAC TUV | Through Hole | 5.5 W | 24 V | 1.8 in | 45.7 mm | 1 " | 25.4 mm | 21.5 mm | 0.85 " | 77 % | 4-DIP Module | -30 °C | 70 °C | 1 | Universal Input | Enclosed |
MEAN WELL USA Inc. | 0.5 % | 0.3 % | ITE (Commercial) | 305 VAC 430 VDC | 85 VAC 120 VDC | 420 mA | CB CE cURus EAC TUV | Through Hole | 5 W | 12 V | 1.8 in | 45.7 mm | 1 " | 25.4 mm | 21.5 mm | 0.85 " | 75 % | 4-DIP Module | -30 °C | 70 °C | 1 | Universal Input | Enclosed |
